RL-RCHB6328

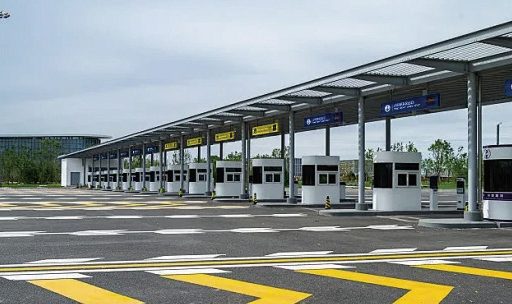

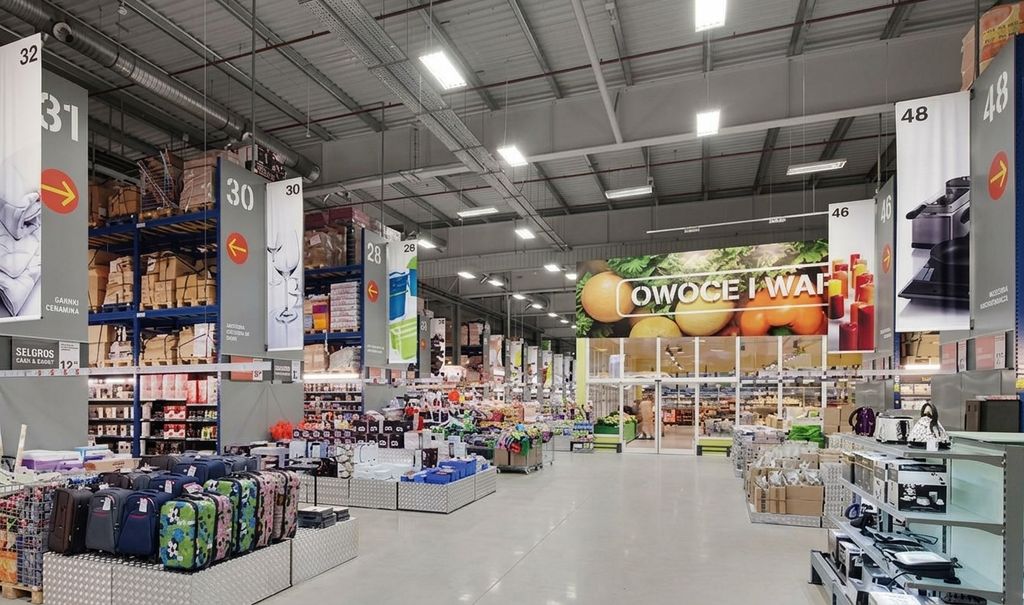

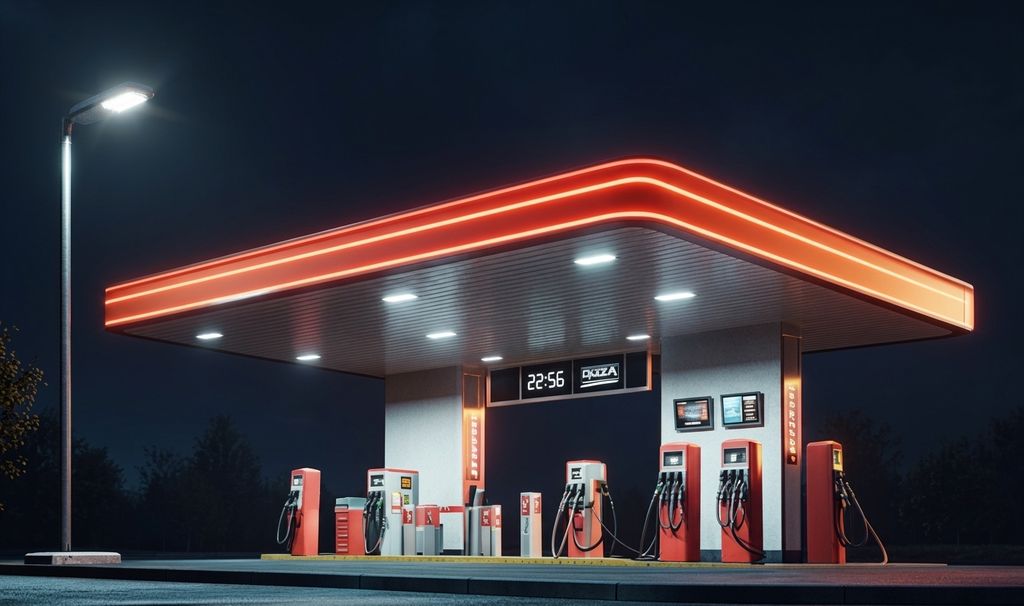

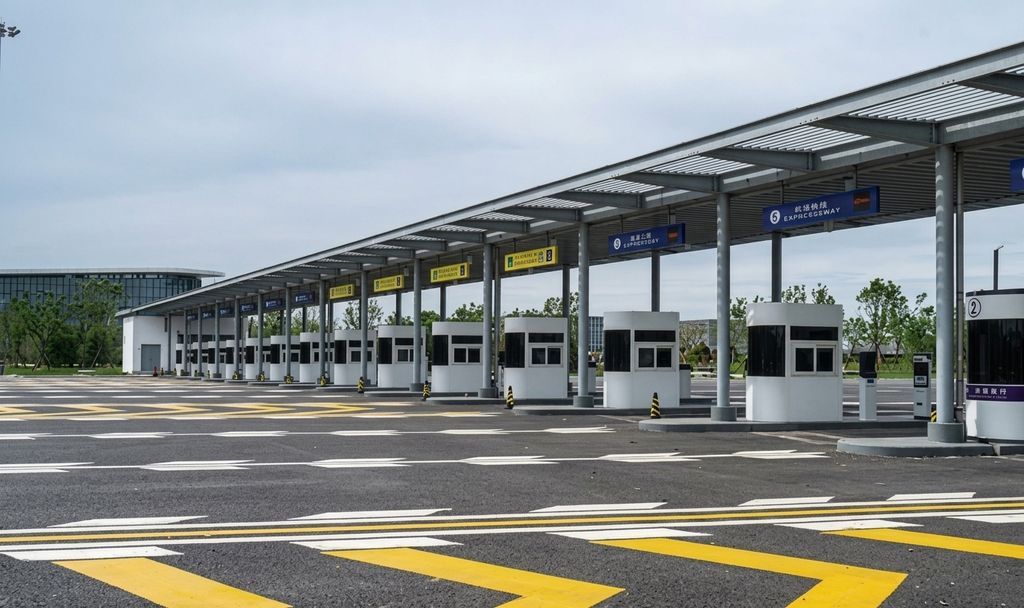

RL-RCHB6328 is a high bay light, available from 50W to 200W at 130 lumens per watt, with 60°, 90° or 70*140° beams. CRI 70 or 80. Aluminium, steel and polycarbonate body in 3000k, 4000k, 5000k, 5700k or 6500k, four sizes from 194×35×115 mm to 452×350×115 mm, rated IP65 for outdoor use. 0–10V, 1–10V or DALI dimming, rated 50,000 hours, works from −25°C to 45°C. Typical uses: industrial and logistics.
50W / 100W / 150W / 200W70/8060°/90°/70*140° optionalIP65
Specifications
- Power
- 50W / 100W / 150W / 200W
- CRI
- 70/80
- Beam angle
- 60°/90°/70*140° optional
- IP rating
- IP65
- Power factor
- ≥0.95 @230VAC
- Dimming / driver
- 0-10V/1-10V/DALI
- Product size
- 194*35*115 / 280*350*115 / 366*350*115 / 452*350*115
- Material
- Aluminum Heatsink+PC lens+Steel frame
- Lamp Luminous Efficiency
- 130lm/w
- LED Driver
- SOSEN/Mean Well
- Driver Type
- Constant Current Isolated Driver
- LED Light Source
- SMD 3030 LUMILEDS
- Color Temperature(CCT)
- 3000K/4000K/5000K/5700K/6500K
- Input Voltage(V)
- AC100~277V 50/60Hz
- Support Dimmer
- YES
- Working Temperature
- -25~45℃
- Lifespan (Hours)
- 50000 HOURS
- Warranty(Year)
- 5-Year
Construction
