RL-HB5329
LED High Bay Light · Catalogue P315-318

RL-HB5329

1. Power and CCT tunable fixture (100–240V)

2. Equipped with expansion port for sensor connection

3. Suitable for wet-location installation

4. Surface-mount and pendant-mount kits are available

5. PIR and microwave sensor kits optional

6. Optional accessories: aluminum reflector, polycarbonate reflector

7. The heat sink adopts high-thermal-conductivity ADC12 aluminum for excellent heat dissipation

8. Unique housing design accelerates heat dissipation to further extend fixture service life

9. Integrated streamlined appearance delivers an elegant look

10. The fixture features waterproof, dustproof and anti-corrosion performance

>70Ra(80Ra optional)60°/90°/120°IP65
RL-HB5329 at a glance

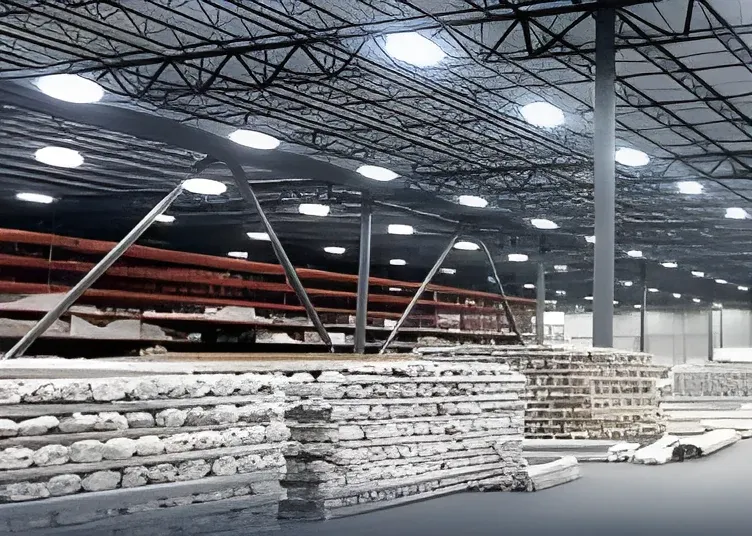

RL-HB5329 — Applications

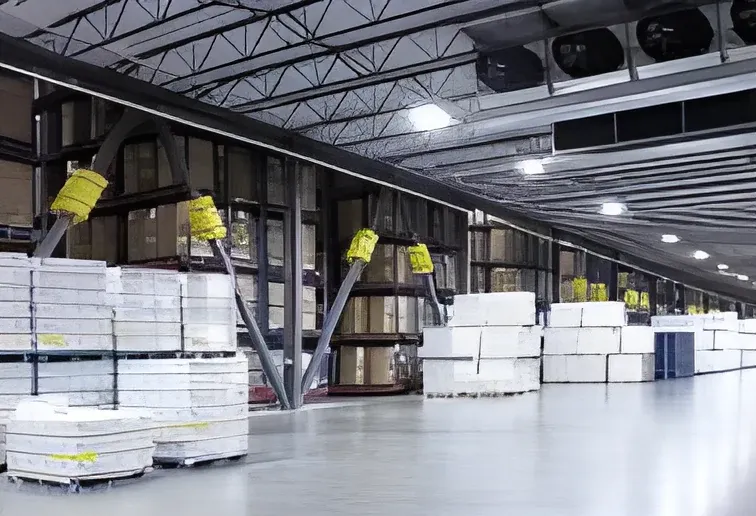

RL-HB5329 — Applications

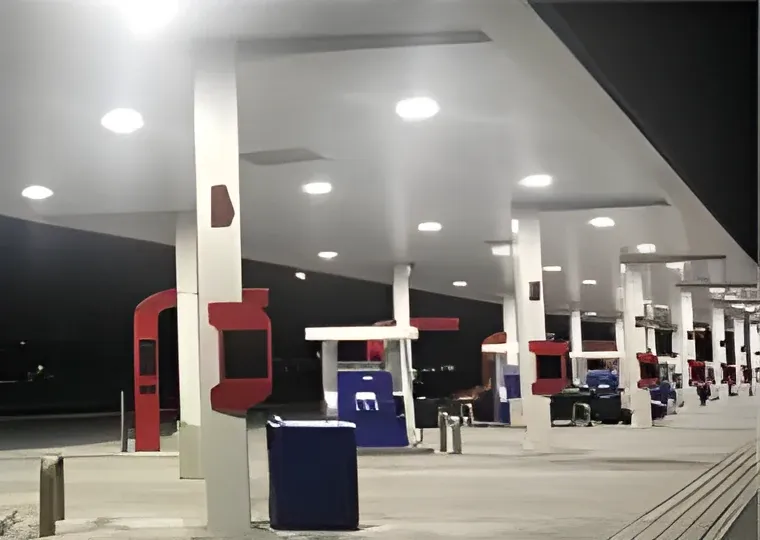

RL-HB5329 — Applications

Specifications

Lumens
14000‑17000Lm / 21000‑22500Lm / 28000‑34000Lm / 33600‑40800Lm
CCT
3000K/4000K/5000K/5700K/6500K
CRI
>70Ra(80Ra optional)
Beam angle
60°/90°/120°
IP rating
IP65
Input voltage
AC220‑240V/AC100‑277V
Power factor
0.95
Dimming / driver
0‑10V/1‑10V/DALI
Warranty
5 Years
Model
RL‑HB5329‑SERIES
Wattage Tunable
100W / 150W / 200W / 240W
Efficiency
140‑170Lm/W
LED Type
Lumileds/Samsung
Power Supply
Sosen/Lifud/Philips
Power Frequency
50/60Hz
Total Harmonic Distortion
<15%
SPD
6KV
Heat Radiator
ADC12 Aluminum alloy
Lens Materia
CPC
IK Rating
IK10
Working Temperature
-30℃——+65℃
Storing Temperature
-30℃——+65℃
Lifetime(L70 Standard)
50,000 hours

Technical

RL-HB5329 — dimensionDrawings
