RL-HB5328
LED High Bay Light · Catalogue P311-314

RL-HB5328

2800‑6500K90°/120° / 30°/60°/90°IP65

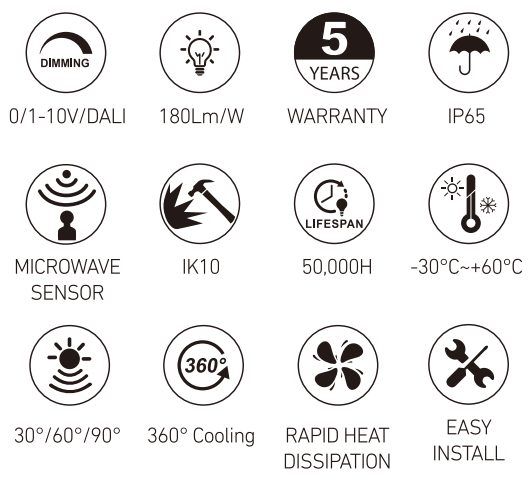

RL-HB5328 at a glance

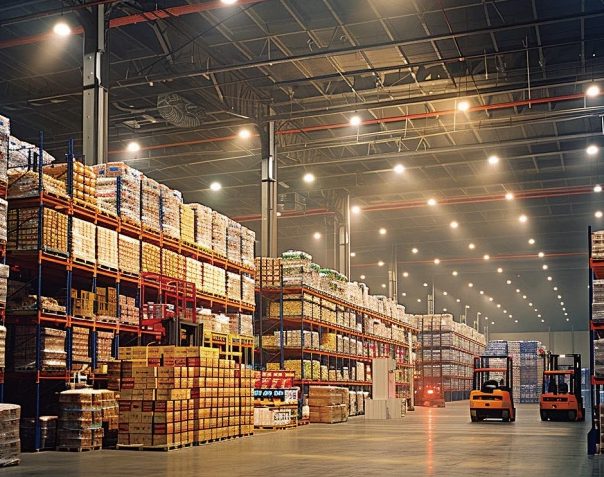

RL-HB5328 — Applications

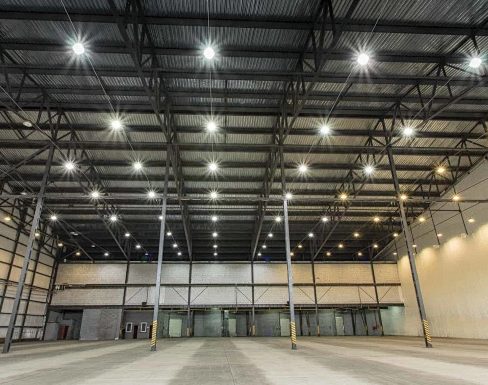

RL-HB5328 — Applications

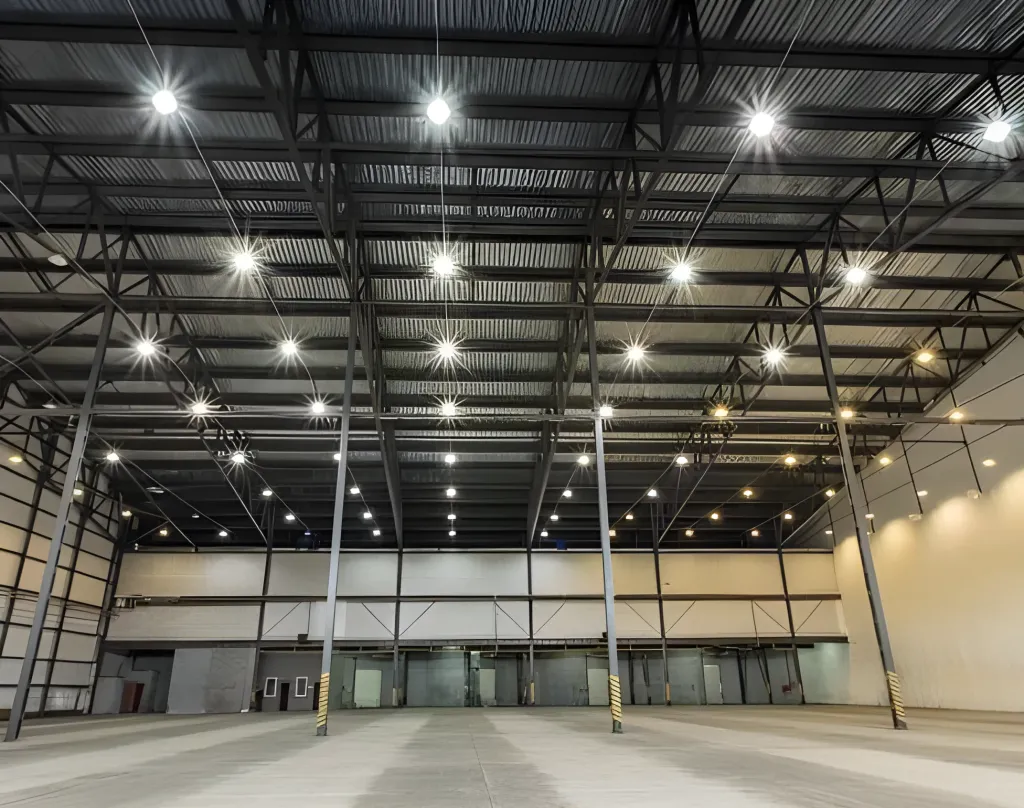

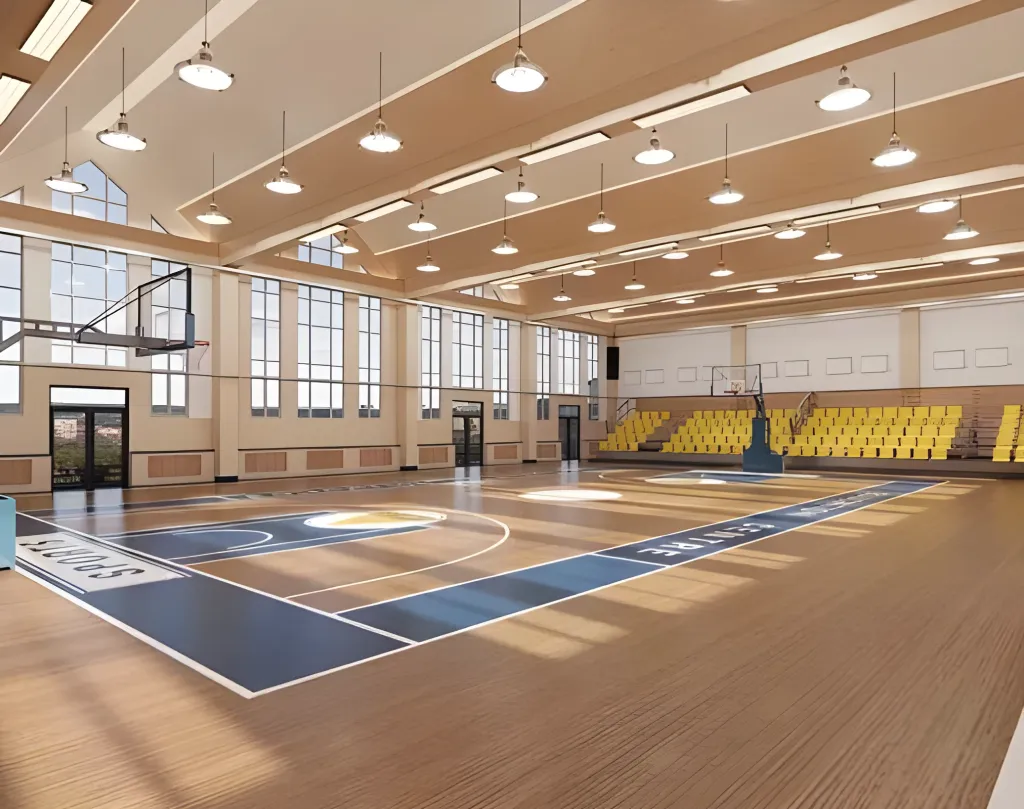

RL-HB5328 — Applications

Specifications

Power
100W / 150W / 200W / 240W / 400W
Lumens
13000LM / 19500LM / 26000LM / 31200LM / 72000LM
CCT
2800‑6500K
Beam angle
90°/120° / 30°/60°/90°
IP rating
IP65
Input voltage
AC100V‑265V
Power factor
>0.95
Dimming / driver
0‑10V/1‑10V/DALI / SOSEN/PHILIPS/MEANWELL
LED chip
OSRAM/LIMILEDS
Warranty
5 Years
Frequency
50HZ‑60HZ
Total harmonic distortion
≤9%
LED luminous efficiency
130LM/W / 180LM/W
Lamp’s efficiency
>90%
Illuminance uniformity
>0.6
Color rendering index
Ra>70
Light distribution
Circular Symmetrical luminescence
Light design
LED+Lens Secondary Optical
LED Junction temperature
≤66.5℃
Working temperature
-30℃——+65℃
Storage temperature
-30℃——+65℃
Working life‑span
>50,000H

Technical

RL-HB5328 — dimensionDrawings
