RL-LINHB5331

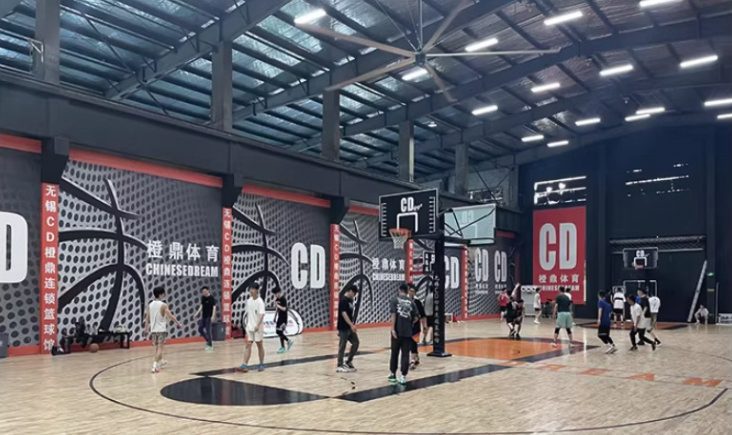

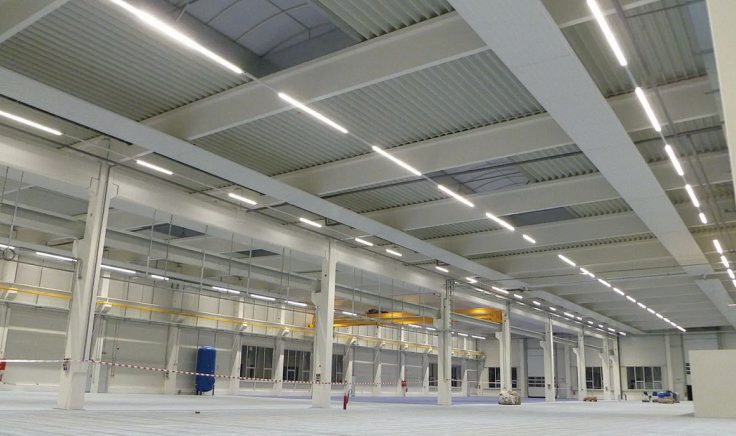

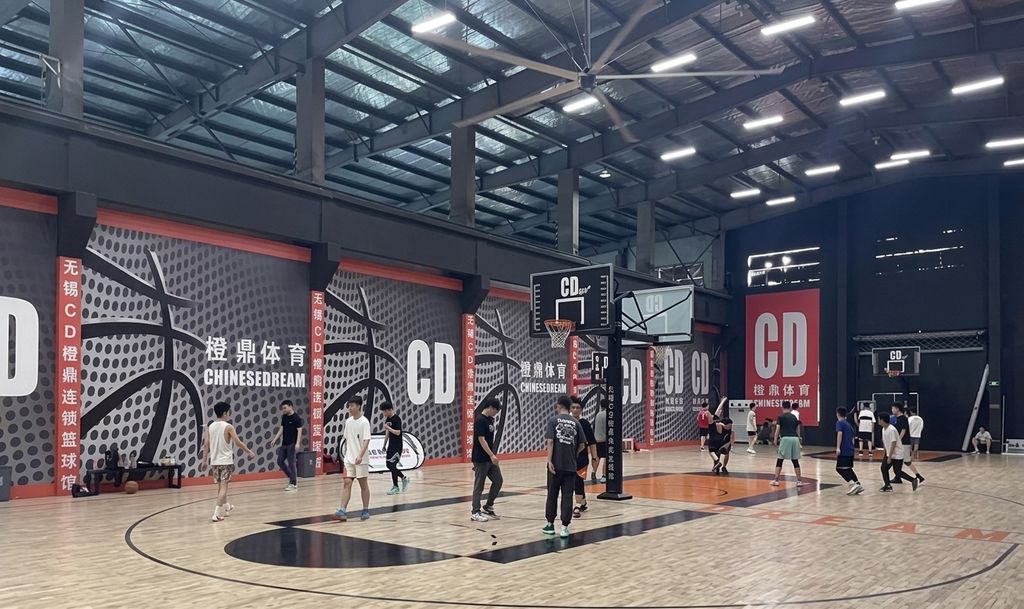

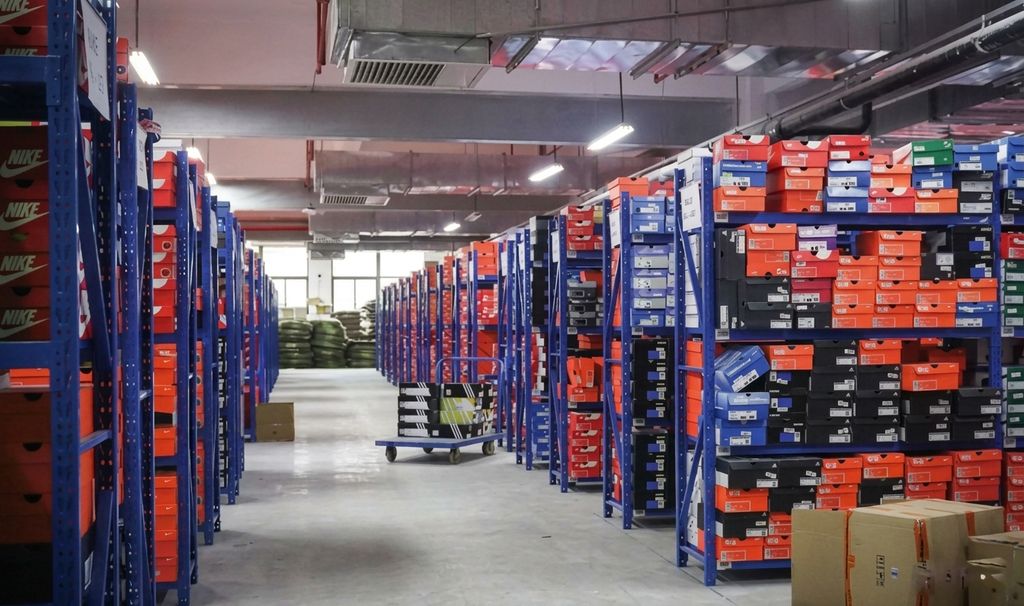

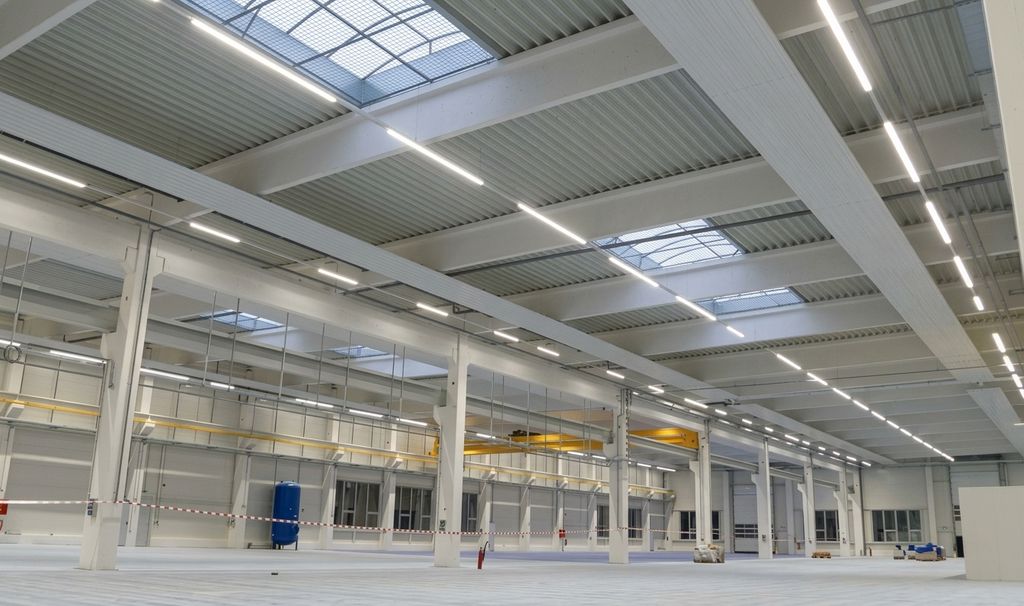

RL-LINHB5331 is a linear high bay for warehouses, factories and logistics halls, in 200W, 320W, 450W, 500W and 600W, from 32,000 up to 99,000 lumens at 160–165 lumens per watt. Beam options from 25° to 120°×148° to suit aisle and open-floor layouts, colour temperature from 3000K to 6500K, CRI 70 (80 or 90 optional). Die-cast aluminium body with polycarbonate-and-glass lens, IP66, IK08, 10kV or 20kV surge protection optional, 0–10V, 1–10V or DALI dimming, three lengths (674, 1132 and 1591 mm), rated 50,000 hours (L70) with a five-year warranty. Typical uses: industrial and logistics.
IP66
Specifications
- Power
- 200W / 320W / 450W / 500W / 600W
- Lumens
- 130LM/W(CCT=5000K) 5% / 32000LM-32400LM / 51200LM-52800LM / 72000LM-74250LM / 80000LM-85000LM / 96000LM-99000LM
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- >70Ra(80Ra or 90Ra optional)
- Beam angle
- 25°/45°/60°/90°/80°*125°/80°*140°/120°*148°/45°*105°
- IP rating
- IP66
- Input voltage
- AC100-277V/AC220-240V
- Power factor
- >0.90
- Dimming / driver
- 0-10V/1-10V/DALI
- Warranty
- 5 Years
- LED Type
- Lumileds/Sanan/Osram/Philips
- Efficiency
- 160-165LM/W
- Power Supply
- Inventronics/Sosen/Lifud/Moso/Meanwell/Philips
- Power Frequency
- 50/60Hz
- Total Harmonic Distortion
- <15%
- SPD
- 10KV OR 20KV external SPD optional
- Heat Radiator
- Die-cast aluminum
- Lens Material
- PC+Glass
- IK Rating
- IK08
- Working Temperature
- (-30~+50℃)
- Storing Temperature
- (-40~+80℃)
- Lifetime(L70 Standard)
- 50,000 hours
- Fixture Dimension
- 674*145*145mm / 1132*145*145mm / 1591*145*145mm
