LED High Bay Light · Catalogue P331-334

RL-LINHB5330

Name: RL-LINHB5330
Brand: Regents LED
SKU: RL-LINHB5330

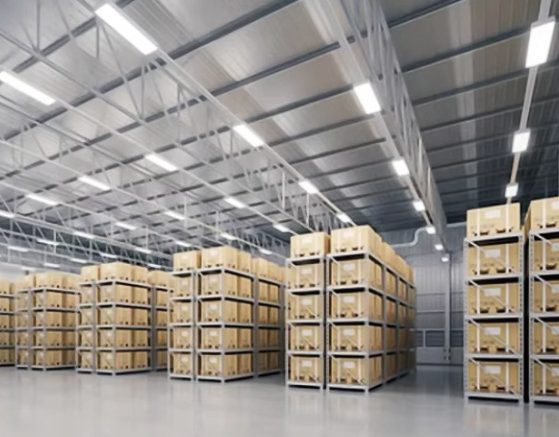

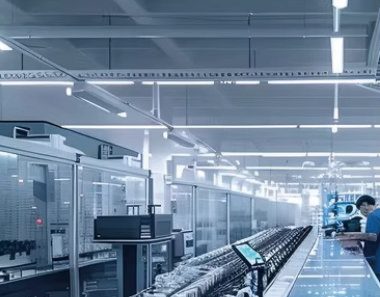

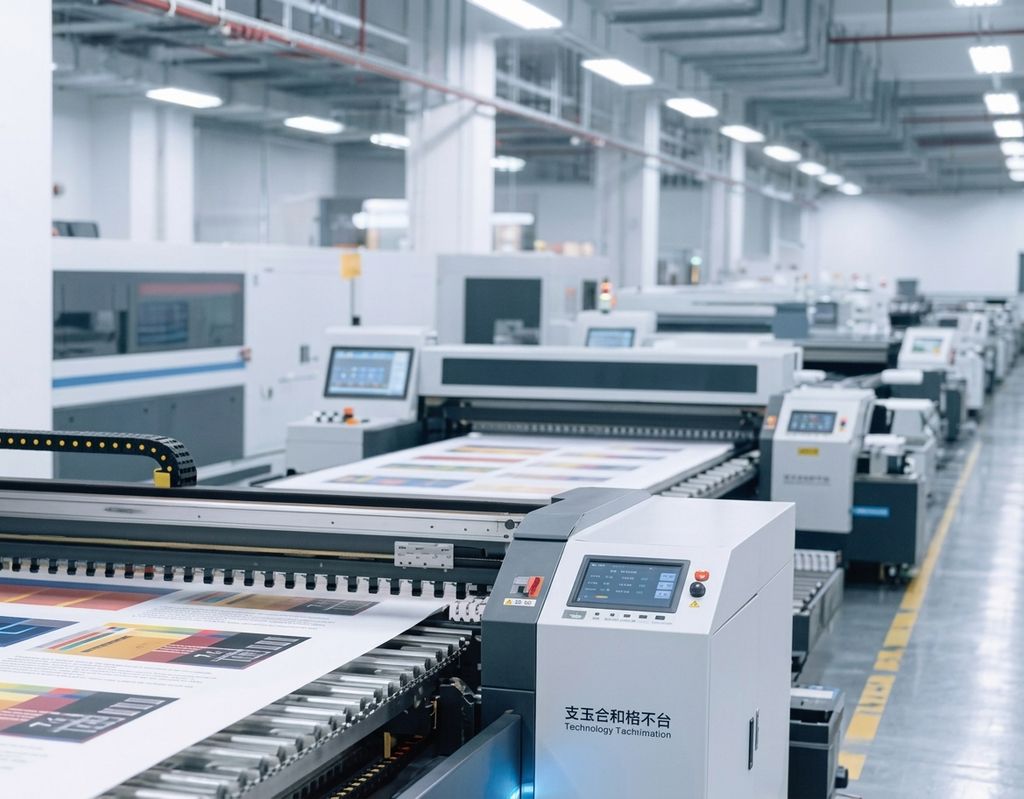

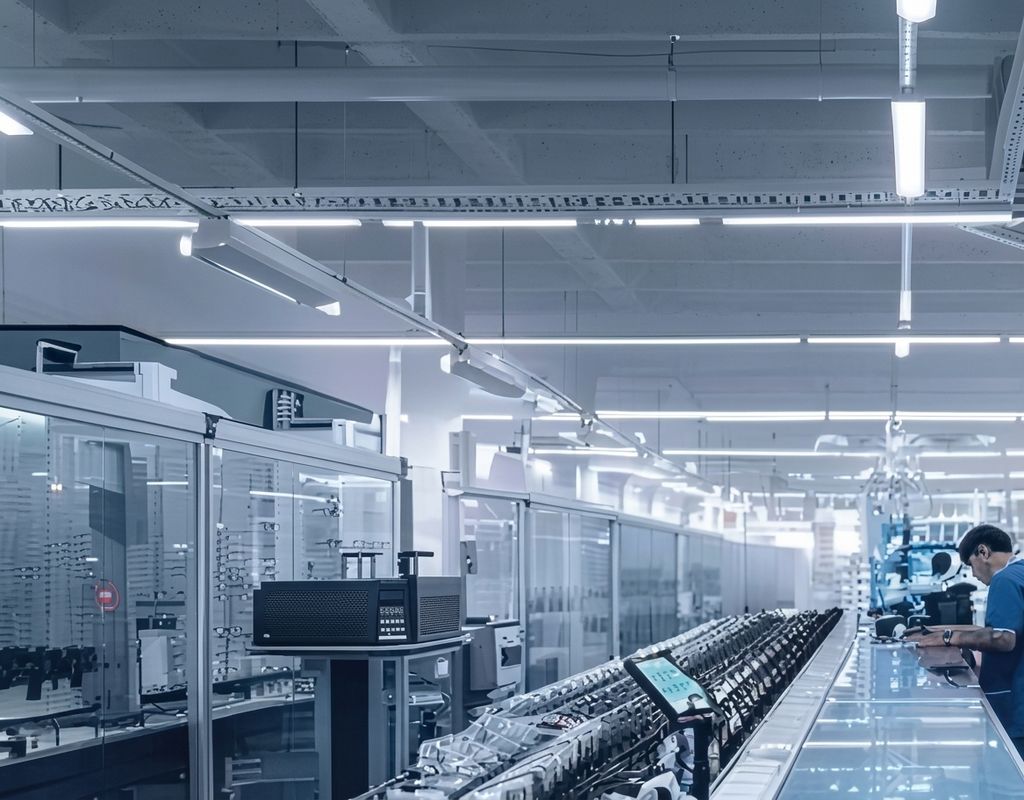

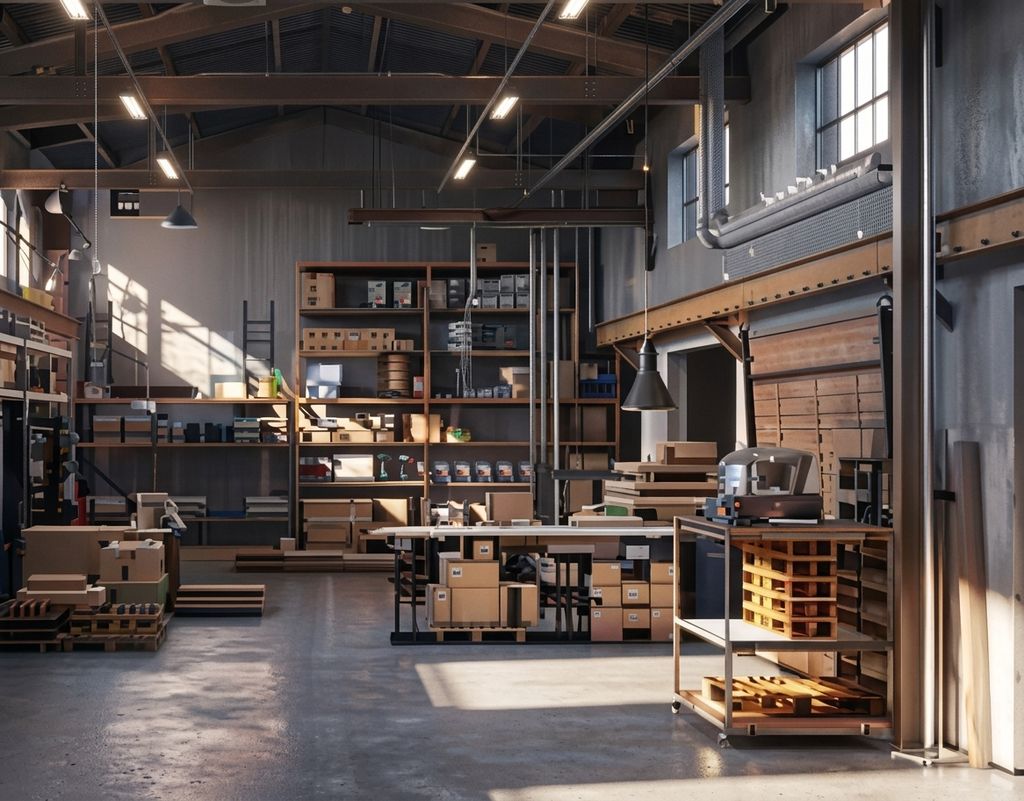

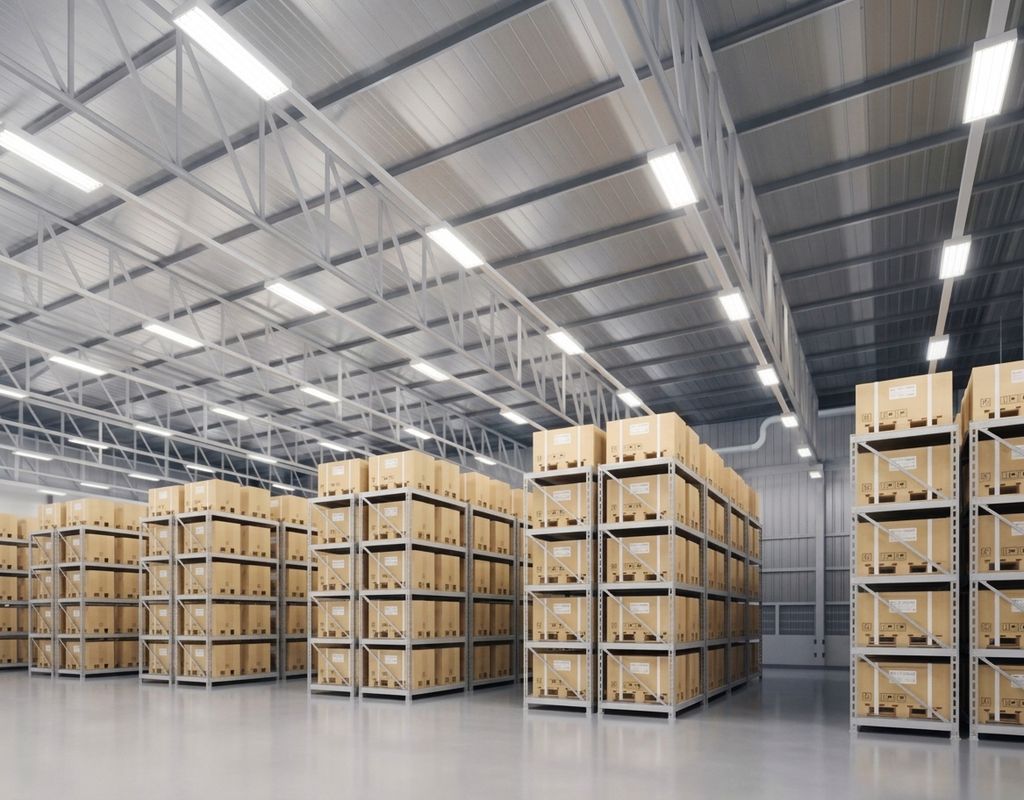

RL-LINHB5330 is a high bay light, available from 50W to 240W at 6,500 to 31,200 lumens at 130 lumens per watt. Philips LEDs in 4000K, 5000K, 5700K or 6500K, CRI above 80. Five sizes from 283.6×137.7×115.6mm to 1185.6×137.7×115.6mm. 0–10V, 1–10V or DALI dimming, runs on 100–277V, rated 50,000 hours, works from −30°C to 50°C, and a five-year warranty. Typical uses: industrial and logistics.

4000K 5000K 5700K 6500K>80Ra60*90, 30*70, 120

Enquire about this product

Specifications

Power: 50W / 100W / 150W / 200W / 240W
Lumens: 130LM/W(CCT=5000K) 5% / 6500LM(CCT=5000K) 5% / 13000LM(CCT=5000K) 5% / 19500LM(CCT=5000K) 5% / 26000LM(CCT=5000K) 5% / 31200LM(CCT=5000K) 5%
CCT: 4000K 5000K 5700K 6500K
CRI: >80Ra
Beam angle: 60*90, 30*70, 120
Input voltage: AC100-277V
Power factor: >0.90
Dimming / driver: 0-10V/1-10V/DALI
Lifetime: >50000Hrs(Ta=30℃ @LM70)
Warranty: 5 Years
Part No: RL-LINHB5330
LED Type: PHILIPS
LED QTY: 56 PCS / 112 PCS / 168 PCS / 224 PCS / 280 PCS
System Efficiency: >90
Power Supply: MeanWell/Sosen
Power Frequency: 50/60Hz
Output Voltage: DC42.3-52.8V
Output Current: 0.8-1.6A(Constant Current) / 1-2A(Constant Current) / 1.56-3.13A(Constant Current) / 2.08-4.16A(Constant Current) / 2.5-5A(Constant Current)
Power Efficiency: >90%
Total Harmonic Distortion: <15%
System Power consumption: 50W±2W / 100W±2W / 150W±2W / 200W±2W / 240W±2W
LED Power consumption: 48W±2W / 96W±2W / 148W±2W / 196W±2W / 236W±2W
Fixture Material: 6063 Aluminum alloy
Ingress Protection: IP65
Junction Temperature: < 75℃ (Ta=30℃)
Storage Temperature: (-40~+60℃)
Operating Temperature: (-30~+50℃)
Operating Humidity: 15-90%RH
Outline Dimensions: L283.6*W137.7*H115.6mm / L489.6*W137.7*H156.6mm / L721.6*W137.7*H156.6mm / L953.6*W137.7*H115.6mm / L1185.6*W137.7*H115.6mm
