RL-HB5332

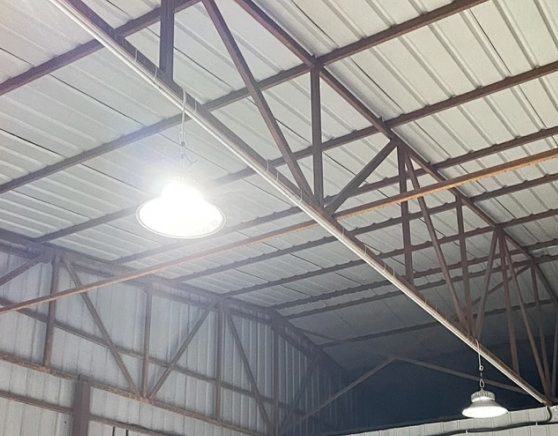

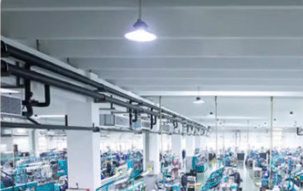

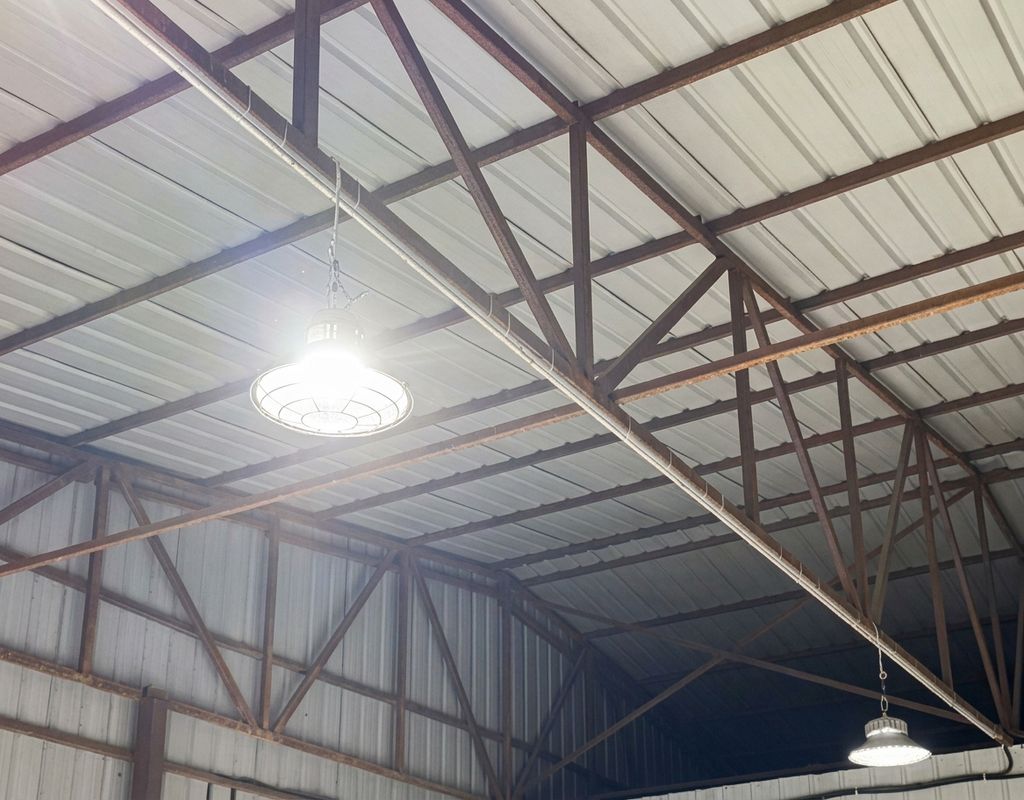

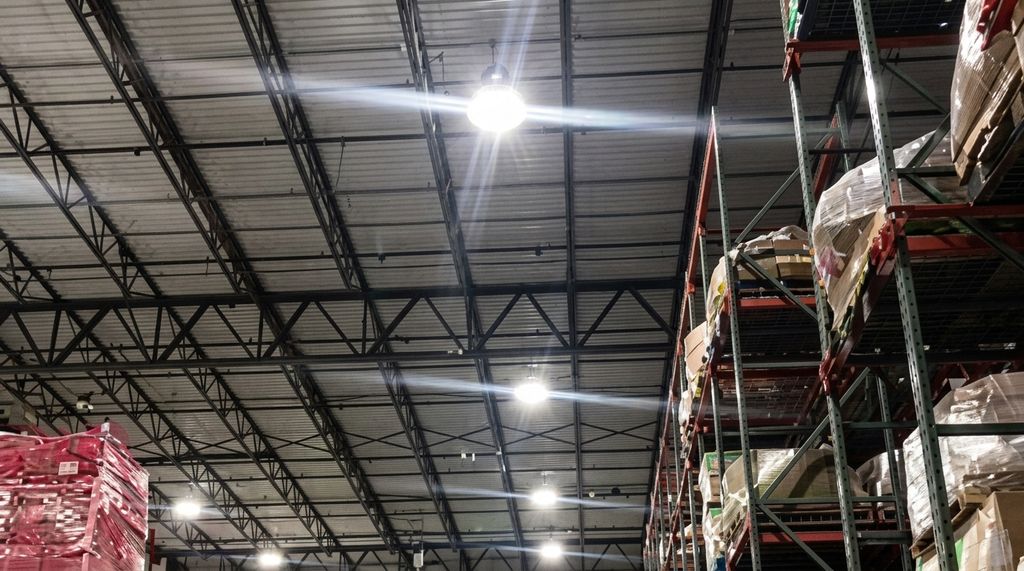

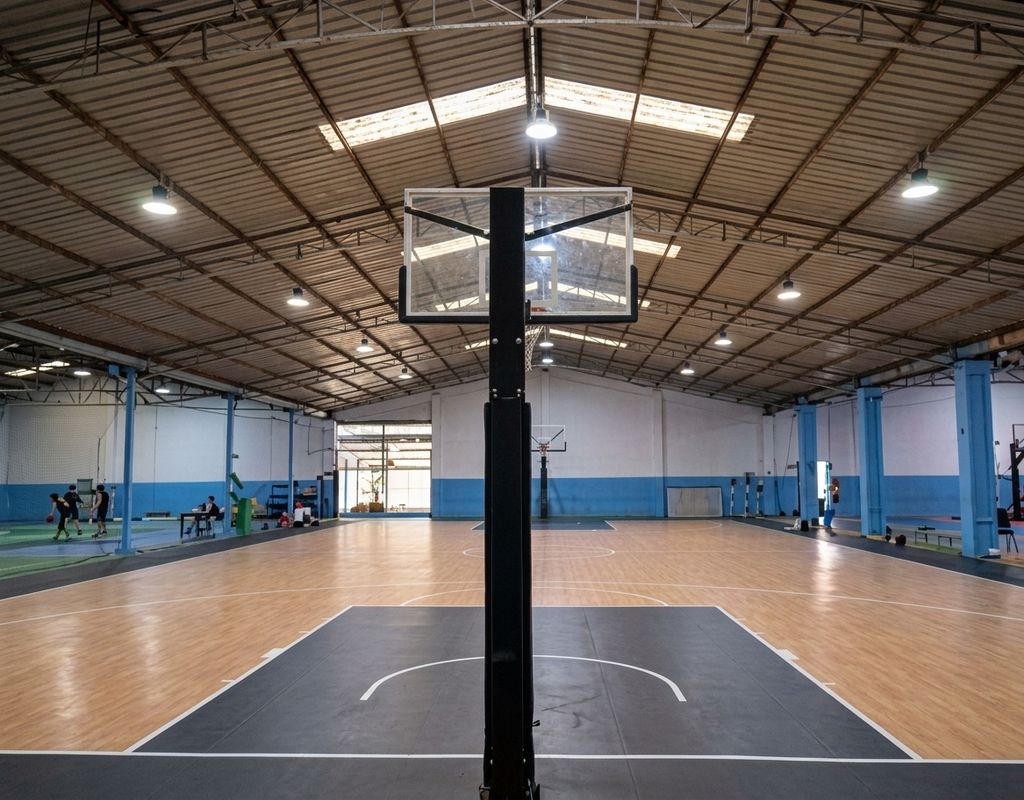

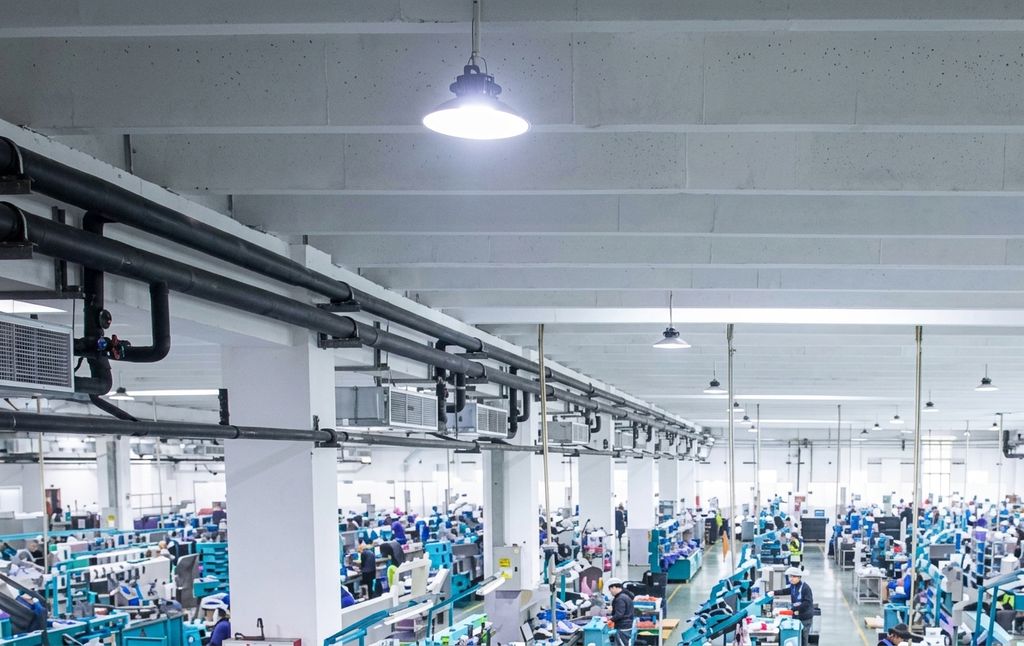

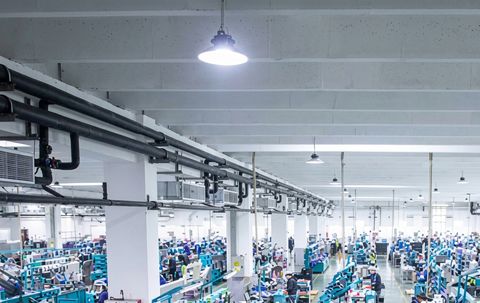

RL-HB5332 is a high bay light, 68,000 lumens at 175 lumens per watt, with 12°, 25°, 40° or 60° beams. Available in 3000k, 4000k, 5000k, 5700k or 6500k, 378×378×224mm and (14.88"14.88"8.82") sizes, rated IP66 for outdoor use, IK08, glass and polycarbonate lens. DALI or DMX512 dimming, runs on 305V, 6kV surge protection, rated 50,000 hours, works from −40°C to 70°C, and a five-year warranty. Typical uses: industrial and logistics.
12° / 25° / 40° / 60°IP66
Specifications
- Beam angle
- 12° / 25° / 40° / 60°
- IP rating
- IP66
- Input voltage
- AC90‑305V/100‑277V
- Power factor
- >0.95
- Dimming / driver
- 0‑10V, 1‑10V, DMX512, DALI
- Warranty
- 5 Years
- Model
- RL‑HB5332
- Power Consumption(±5%)
- 300W (100%/80%/60% Tunable) / 400W (100%/80%/60% Tunable)
- Power Supply
- Inventronics/Moso/Sosen/Lifud
- Surge Protection
- 6KV
- Driver Type
- Constant Current (CC)
- LED Type
- Osram /Lumileds
- Light Efficacy(5000K, Ra70)
- 175Lm/W / 170Lm/W
- Luminous Flux (±10%)
- 52,500Lm / 68,000Lm
- Correlated Color Temperature
- 3000K, 4000K, 5000K, 5700K, 6500K
- Color Rendering Index
- 70, 80, 90, TLCI90 optional
- SDCM
- 6
- Product Dimension
- L378*W378*H224mm (L14.88"W14.88"H8.82")
- Mounting Option
- Hoisting/ Ceiling installation/ Wall mounting
- Structure & Material & Finish
- Die‑casting Heat Sink/ ADC12 / Powder coated Steel Metal Bracket / SPCC / Powder coated
- Lens
- PC Lens / PC Lens+Glass optional
- Fixture Color
- Black
- IK Rating
- IK08, IK10 optional
- Operating Temperature
- -40℃ ~ +70℃ (-40℉ - +158℉)
- Life Time of LED @Ta=25° C
- 50,000Hours
Technical
