RL-SW2267
LED Step Light · Catalogue P251

RL-SW2267

RL-SW2267 is a step light, available in 3W at 60 lumens per watt, with a 15° beam. SMD LEDs in 3000K, 4000K or 6500K, CRI above 80. Aluminium and iron body in black or white, 200×100×50 mm, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: landscape and garden; public realm and urban.

3W60LM/W3000K/4000K/6500K>80
RL-SW2267 at a glance

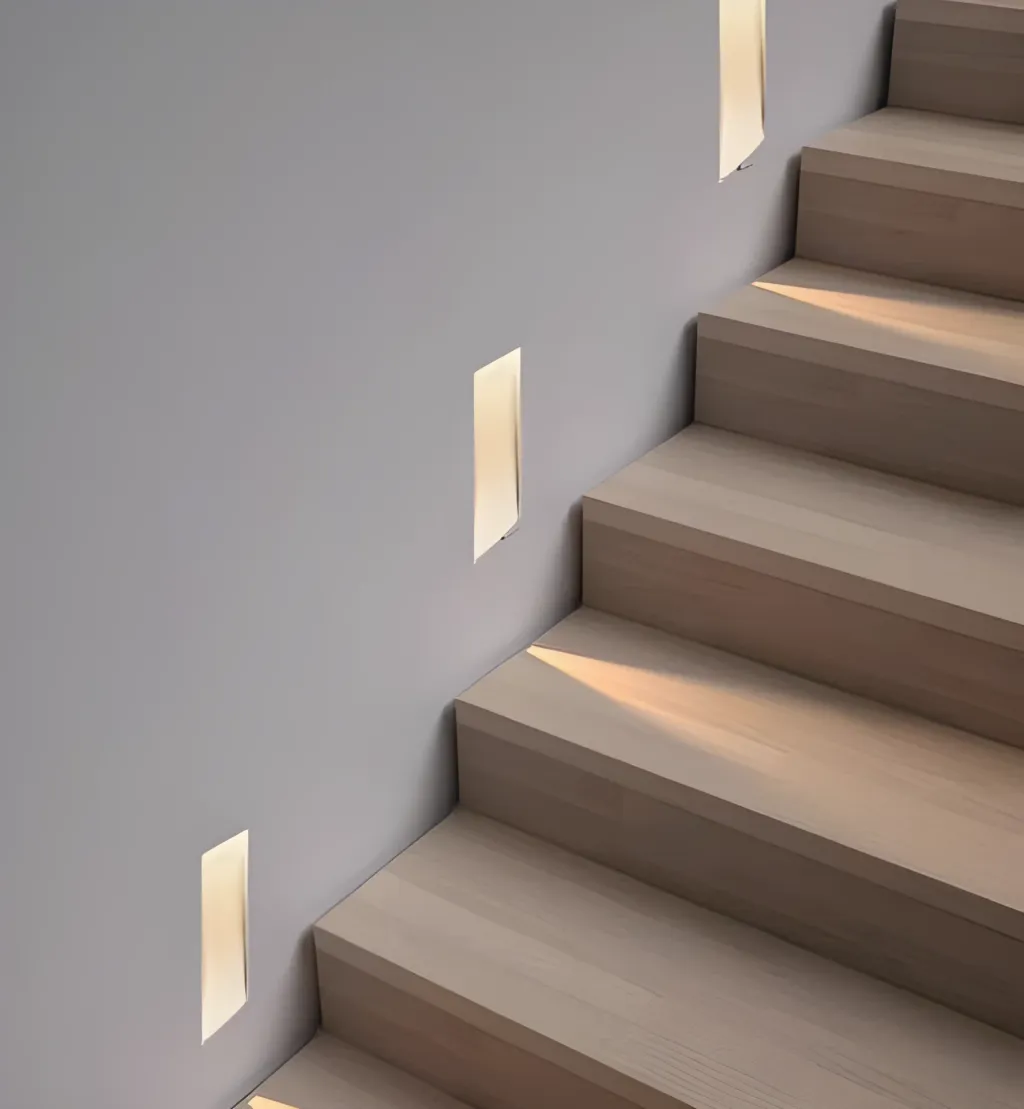

RL-SW2267 — Applications

Specifications

Power
3W
Lumens
60LM/W
CCT
3000K/4000K/6500K
CRI
>80
Beam angle
15°
IP rating
IP20
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
L200*W100*H50
Cut-out
L170*W40*H50
Material
Aluminum+Iron
Colour
BLACK/WHITE
LED chip
SMD
Lifetime
50000 hours
Warranty
5 Years
ADJUSTABLE
NO
