RL-REC-WL-04

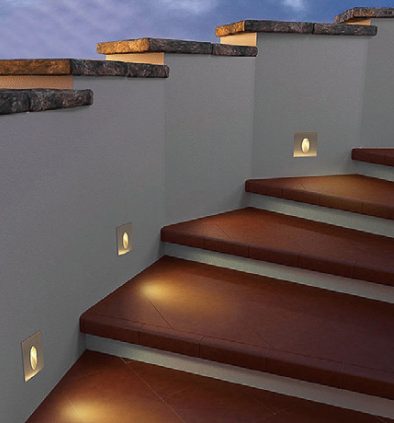

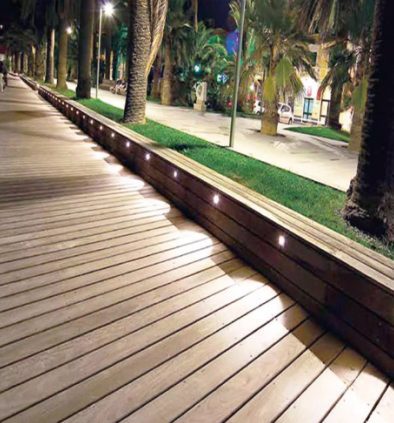

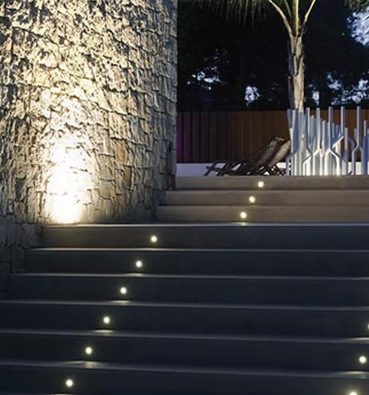

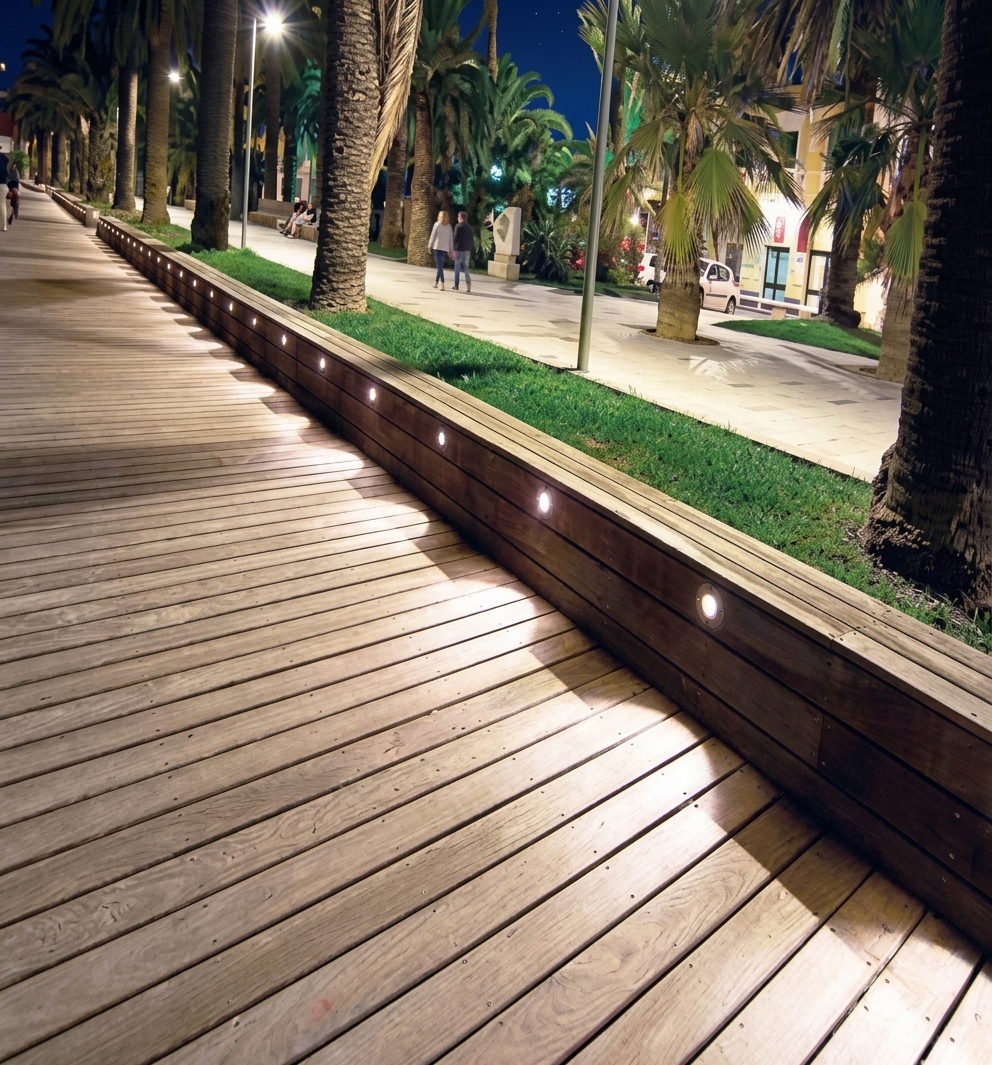

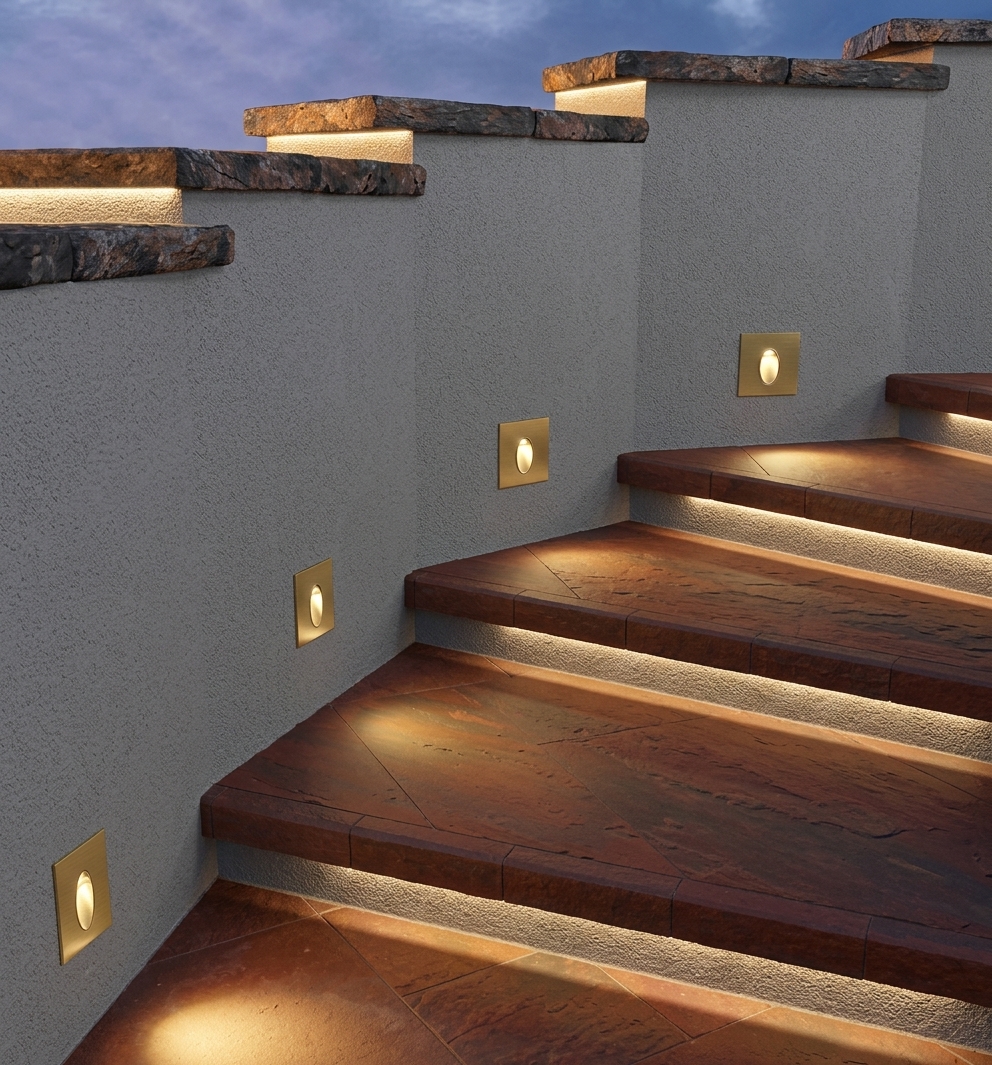

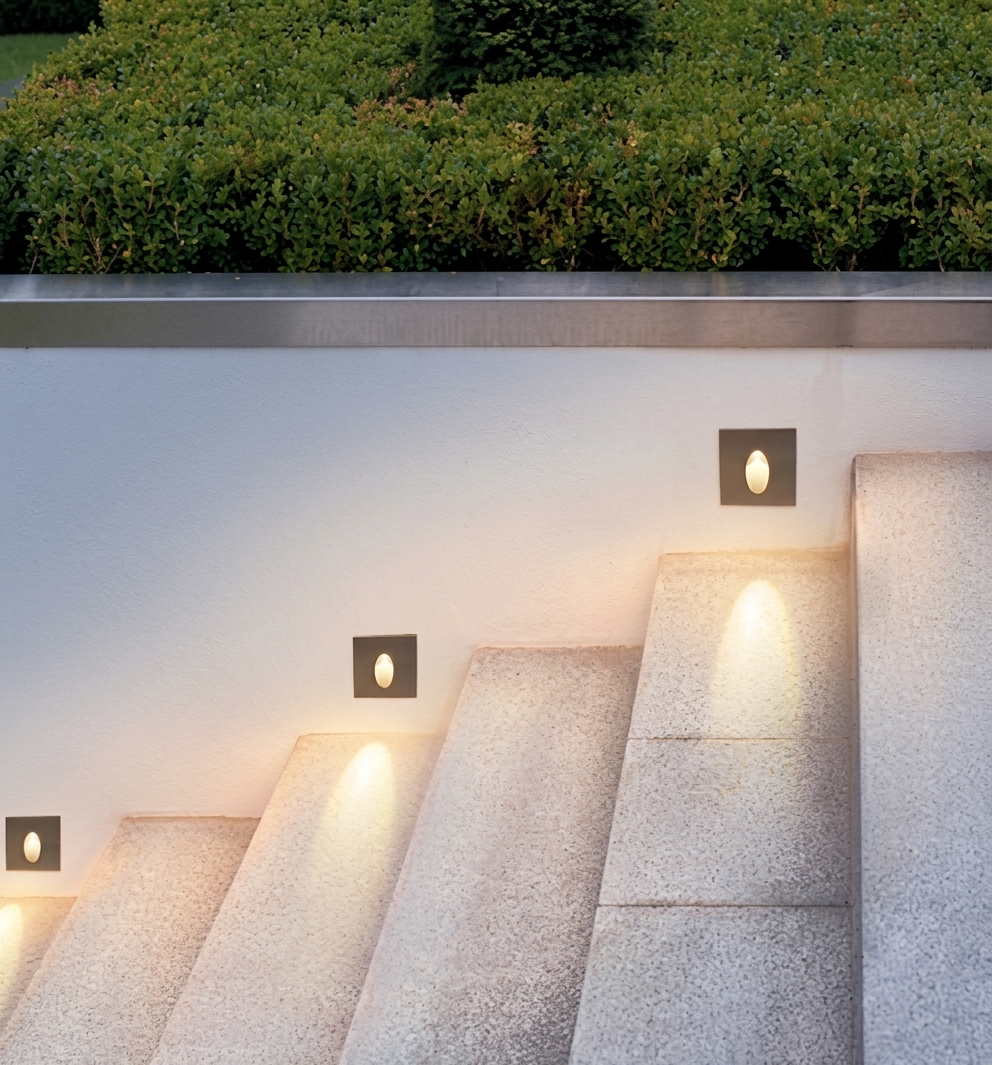

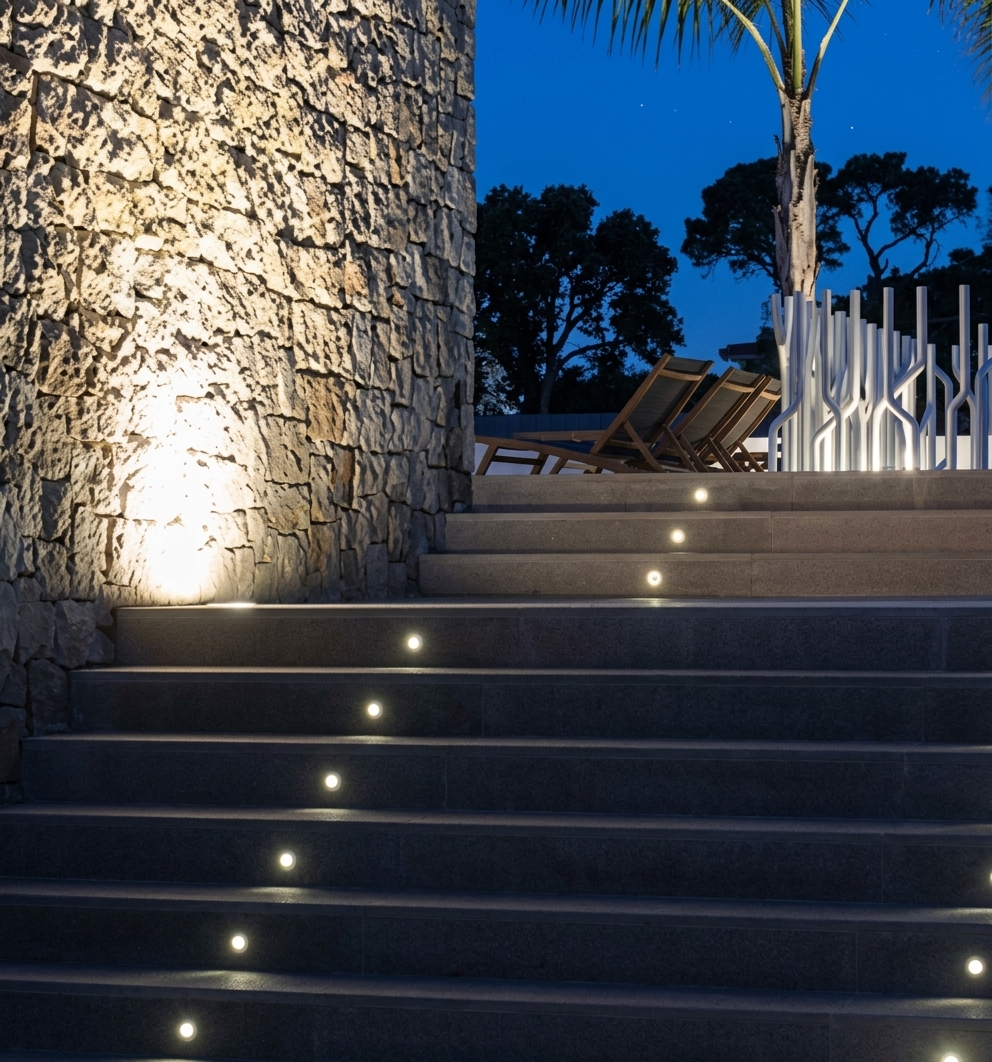

RL-REC-WL-04 is a step light, available in 3W at 80 lumens per watt, with a 110° beam. SMD LEDs in 3000K, 4000K or 6500K, CRI above 80. Aluminium and polycarbonate body in black or white, Ø68×60 mm and Ø82×65 mm sizes, rated IP54 for sheltered outdoor use, IK08. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: landscape and garden; public realm and urban.
3W80LM/W3000K/4000K/6500K>80

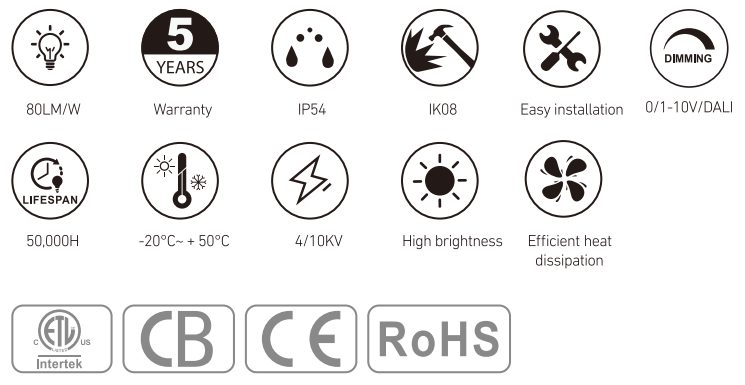

Specifications
- Power
- 3W
- Lumens
- 80LM/W
- CCT
- 3000K/4000K/6500K
- CRI
- >80
- Beam angle
- 110°
- IP rating
- IP54
- Input voltage
- 100-240V
- Power factor
- 0.5
- Dimming / driver
- 0-10V/1-10V/DALI / INCLUDED
- Product size
- φ68*60 / φ82*65
- Cut-out
- φ50*H60 / φ65*H65
- Material
- ALUMINIUM+PC
- Colour
- BLACK/WHITE
- LED chip
- SMD
- Lifetime
- 50000 hours
- Warranty
- 5 Years
- ADJUSTABLE
- NO
Features
Aluminum lamp body
Surface matte spray paint, not easy to rust

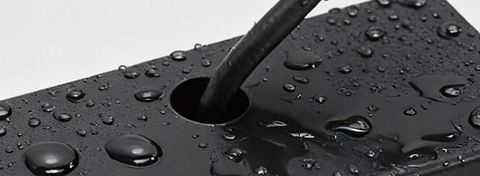

Outdoor Protection
IP65 and IK08 ratings ensure reliable operation in demanding outdoor environments
