RL-REC-WL-01

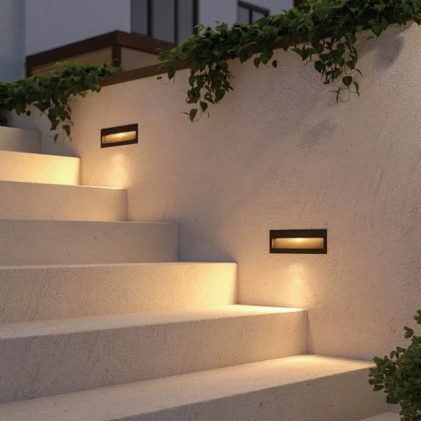

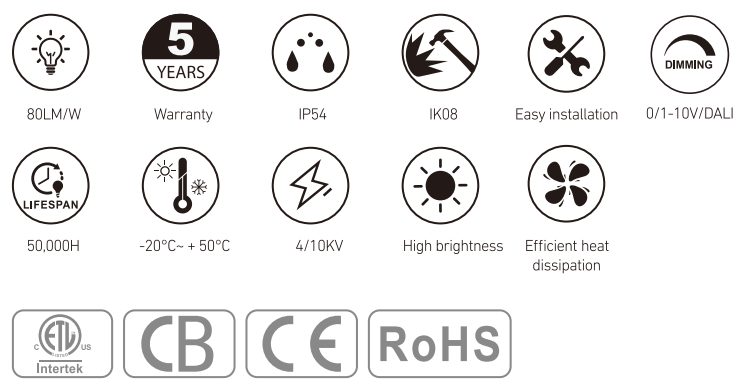

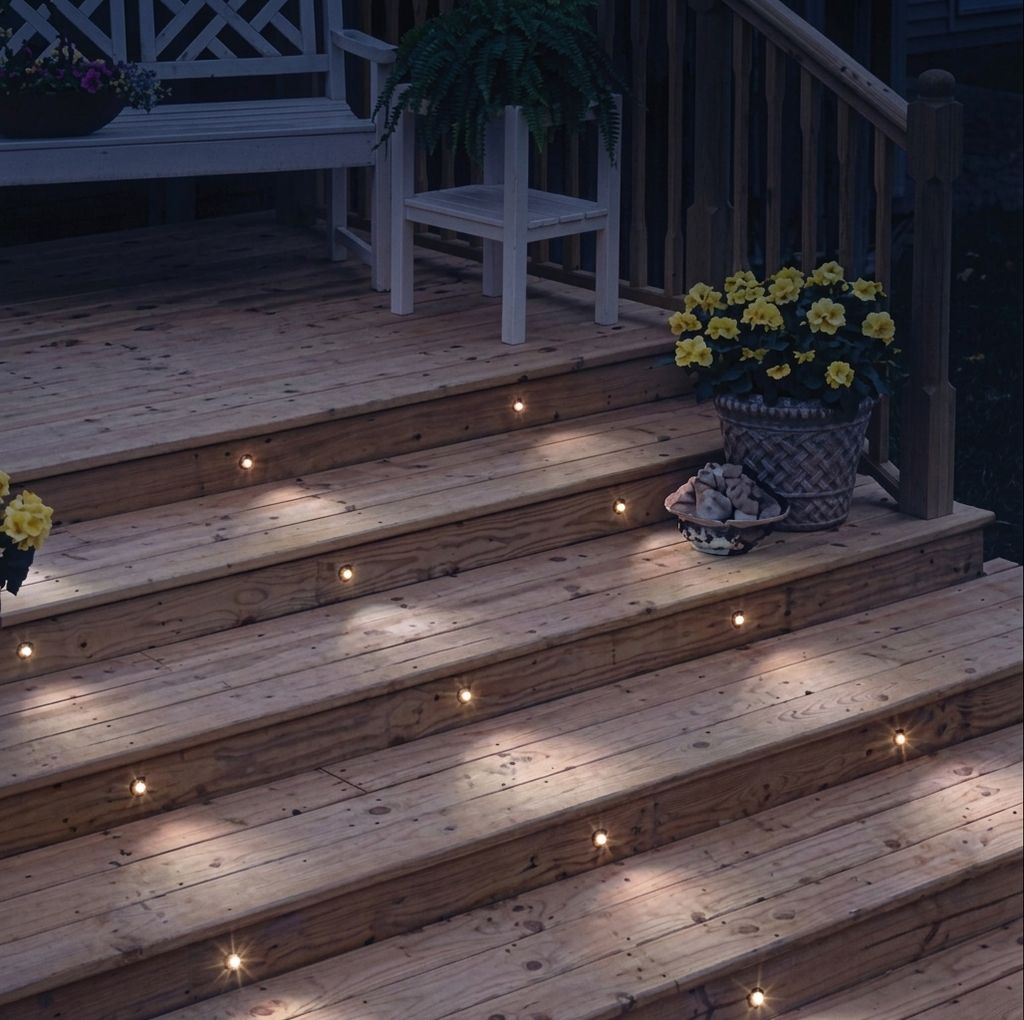

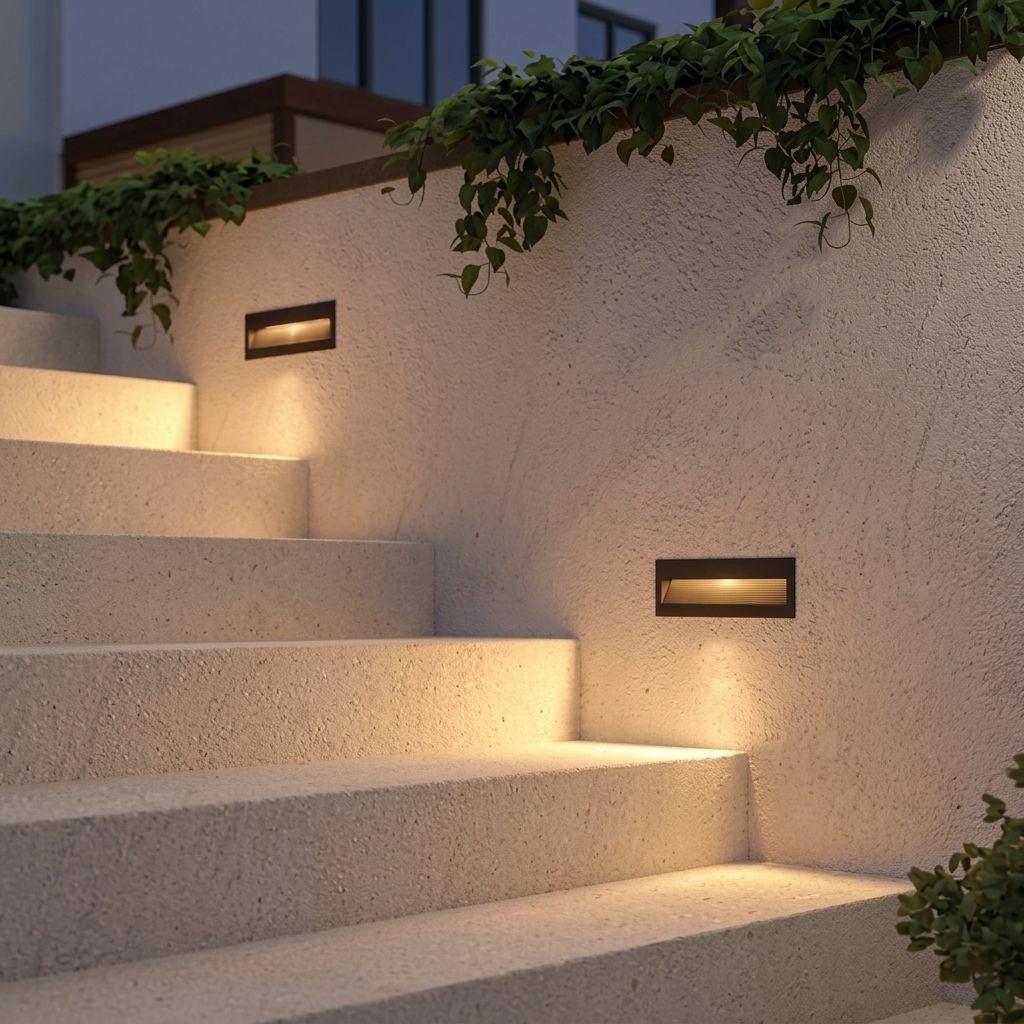

RL-REC-WL-01 is a step light, available in 3W at 80 lumens per watt, with a 110° beam. SMD LEDs in 3000K, 4000K or 6500K, CRI above 80. Aluminium body in black or white, 58×58×46 mm, rated IP54 for sheltered outdoor use, IK08. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: landscape and garden; public realm and urban.
3W80LM/W3000K/4000K/6500K>80
Specifications
- Power
- 3W
- Lumens
- 80LM/W
- CCT
- 3000K/4000K/6500K
- CRI
- >80
- Beam angle
- 110°
- IP rating
- IP54
- Input voltage
- 100-240V
- Power factor
- 0.5
- Dimming / driver
- 0-10V/1-10V/DALI / INCLUDED
- Product size
- L58*W58*H46
- Cut-out
- L48*W48*H46
- Material
- Aluminum
- Colour
- BLACK/WHITE
- LED chip
- SMD
- Lifetime
- 50000 hours
- Warranty
- 5 Years
- Model
- RL-REC-WL01
- ADJUSTABLE
- NO
Features
Waterproof isolation drive
Easy to deal with thunderstorm weather, prolong the service life of the lamp
Outdoor Protection
IP65 and IK08 ratings ensure reliable operation in demanding outdoor environments. It can also be used normally in extremely cold or high temperature environment

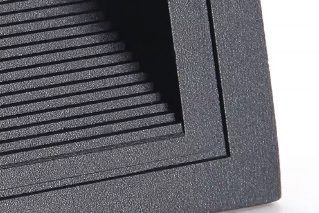

Aluminum lamp body
Surface matte spray paint, not easy to rust
