RL-REC-WL-07
LED Step Light · Catalogue P250

RL-REC-WL-07

RL-REC-WL-07 is a step light, available in 3W at 80 lumens per watt, with a 110° beam. SMD LEDs in 3000K, 4000K or 6500K, CRI above 80. Aluminium and glass body in black or white, 86×86×50 mm, rated IP54 for sheltered outdoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: landscape and garden; public realm and urban.

3W80LM/W3000K/4000K/6500K>80
RL-REC-WL-07 at a glance

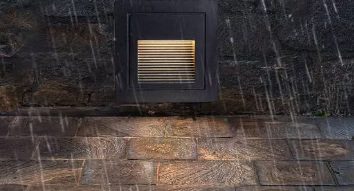

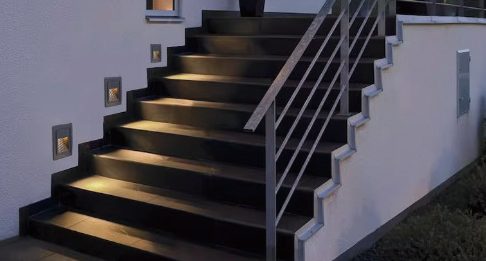

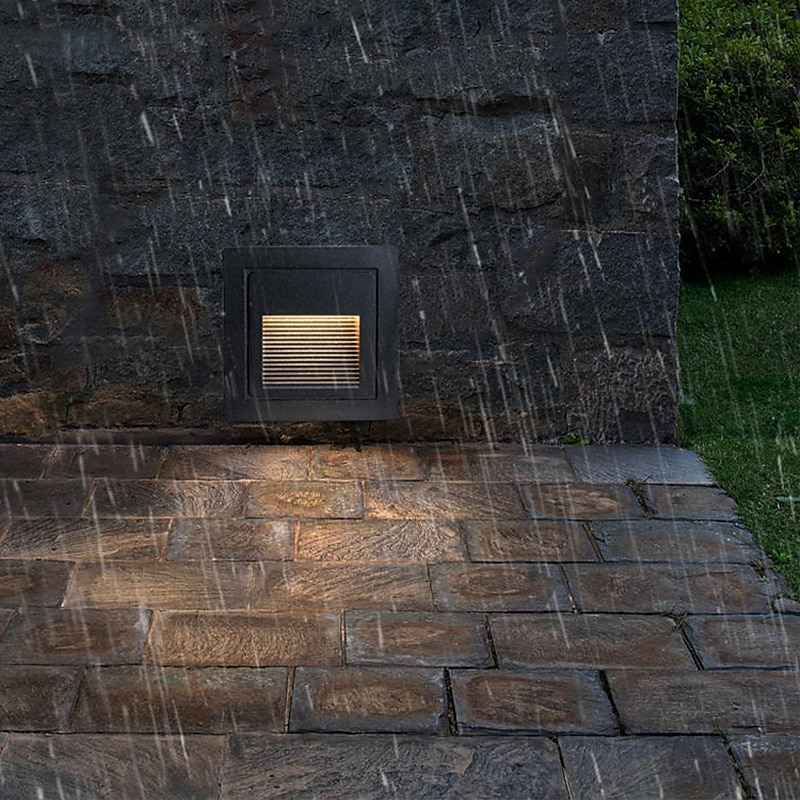

RL-REC-WL-06 — Applications
RL-REC-WL-06 — Applications

Specifications

Power
3W
Lumens
80LM/W
CCT
3000K/4000K/6500K
CRI
>80
Beam angle
110°
IP rating
IP54
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
L86*W86*H50
Cut-out
L68*W68*H50
Material
ALUMINIUM+Glass
Colour
BLACK/WHITE
LED chip
SMD
Lifetime
50000 hours
Warranty
5 Years
ADJUSTABLE
NO
