RL-REC-WL-06
LED Step Light · Catalogue P250

RL-REC-WL-06

RL-REC-WL-06 is a step light, available in 3W at 80 lumens per watt, with a 110° beam. SMD LEDs in 3000K, 4000K or 6500K, CRI above 80. Aluminium and acrylic body in black or white, 90×51×64 mm and 135×51×65 mm sizes, rated IP54 for sheltered outdoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: landscape and garden; public realm and urban.

3W80LM/W3000K/4000K/6500K>80
RL-REC-WL-06 at a glance

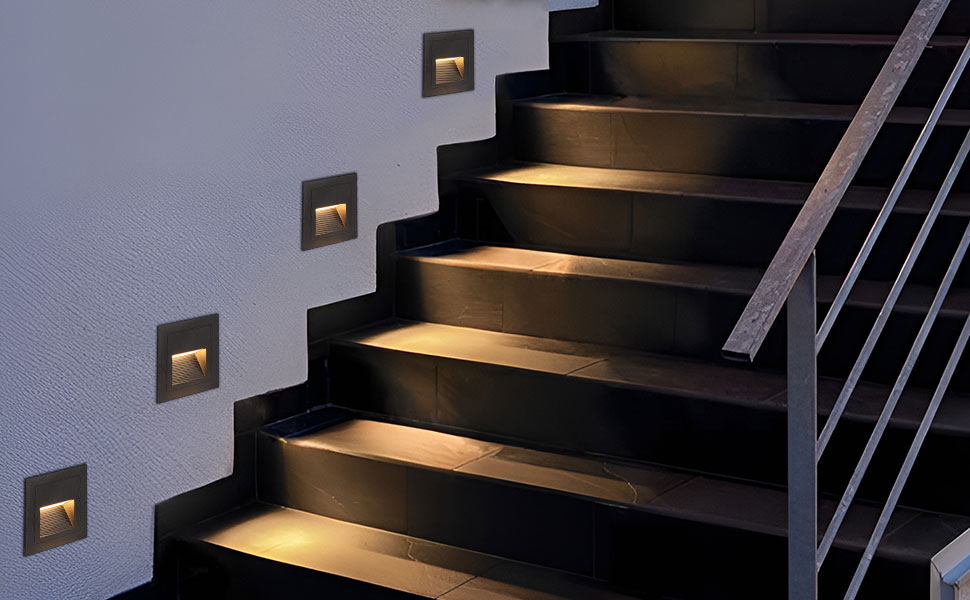

RL-REC-WL-06 — Applications
RL-REC-WL-06 — Applications

Specifications

Power
3W
Lumens
80LM/W
CCT
3000K/4000K/6500K
CRI
>80
Beam angle
110°
IP rating
IP54
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
L90*W51*H64 / L135*W51*H65
Cut-out
L82*W42*H64 / L122*W42*H64
Material
ALUMINIUM+Acrylic
Colour
BLACK/WHITE
LED chip
SMD
Lifetime
50000 hours
Warranty
5 Years
ADJUSTABLE
NO
