RL-EXP-HB5322
Explosion Proof · Catalogue P307-308

RL-EXP-HB5322

1. Adopts high‑quality driver with high‑performance, high‑efficiency and high‑stability, equipped with short‑circuit, over‑current, over‑voltage and over‑temperature protection functions.

2. The LED light source features long service life, low power consumption, high brightness, long irradiation distance, soft light and favorable color rendering index.

3. The 8‑mm‑thick toughened glass delivers properties including anti‑corrosion, impact resistance, high‑temperature resistance and thermal‑shock resistance.

4. The lamp adopts an integrated structure plus thickened fin‑type heat‑dissipation design with outstanding protection performance to satisfy industrial‑lighting requirements.

5. The 4‑mm‑thick aluminum housing has an excellent sealing structure with IP66 protection rating.

6. Designed with golden‑ratio layout for robust and stable structure; it supports free multi‑angle adjustment for easy installation.

120‑140Lm /wType II

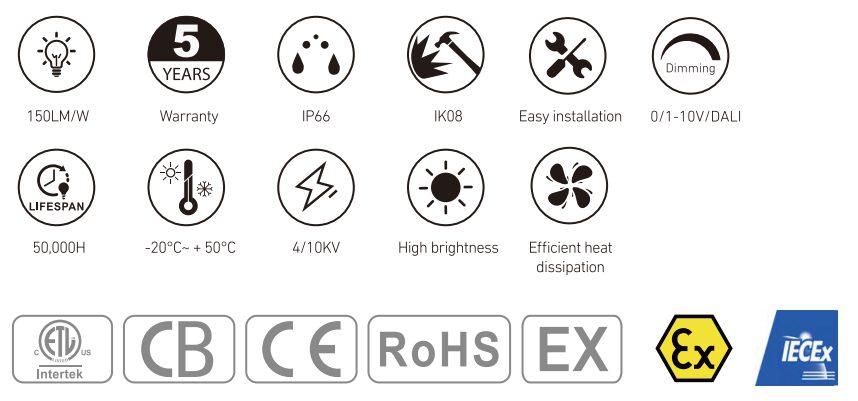

RL-EXP-HB5322 at a glance

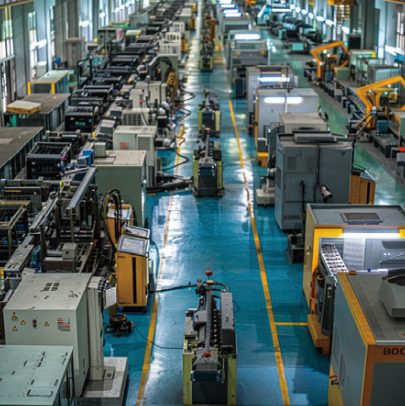

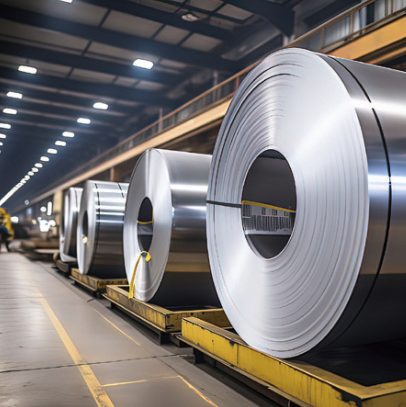

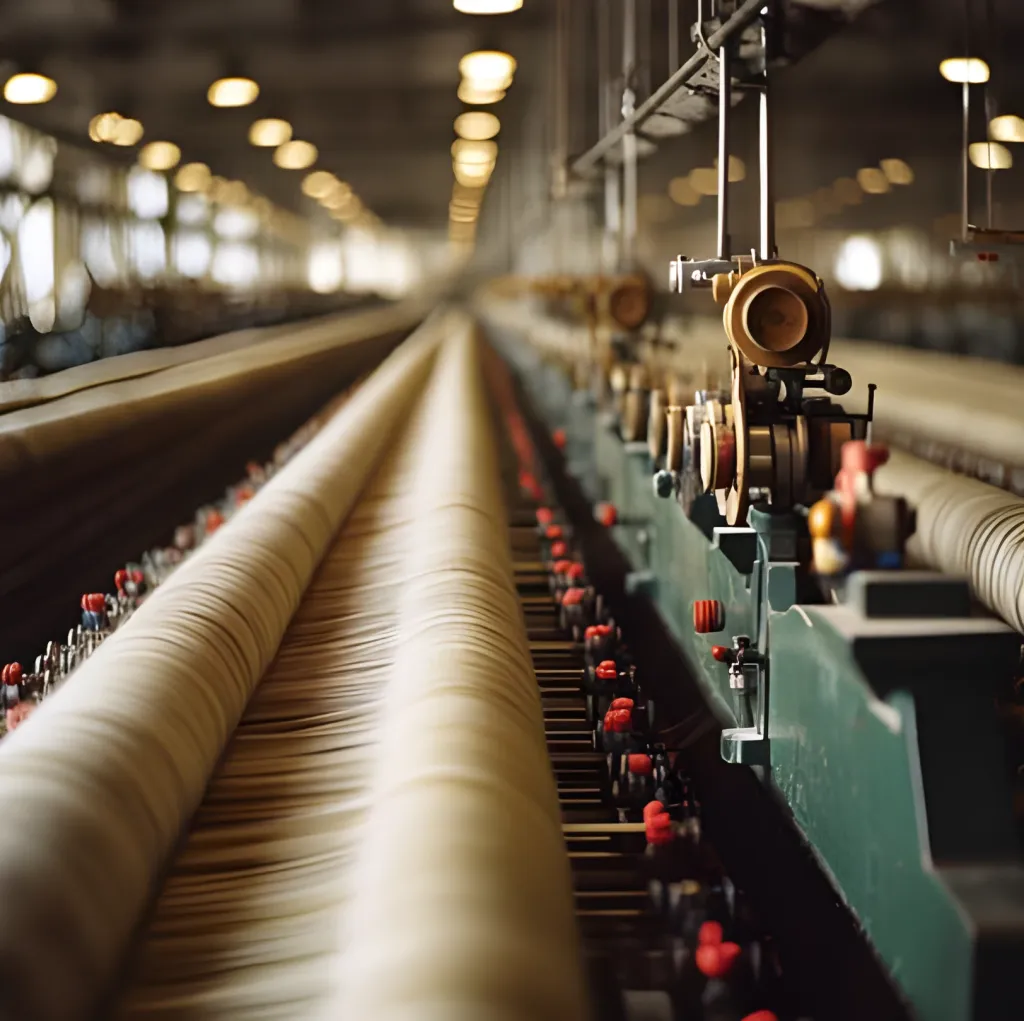

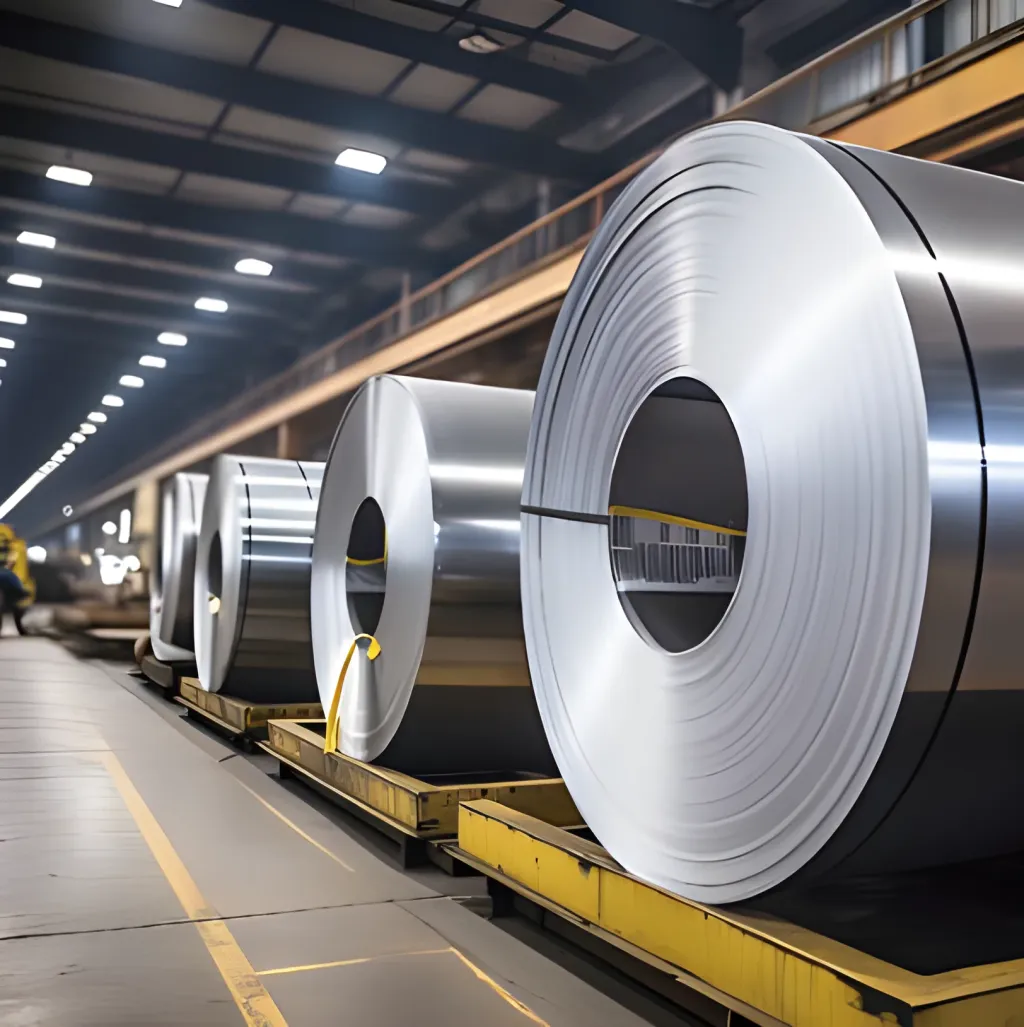

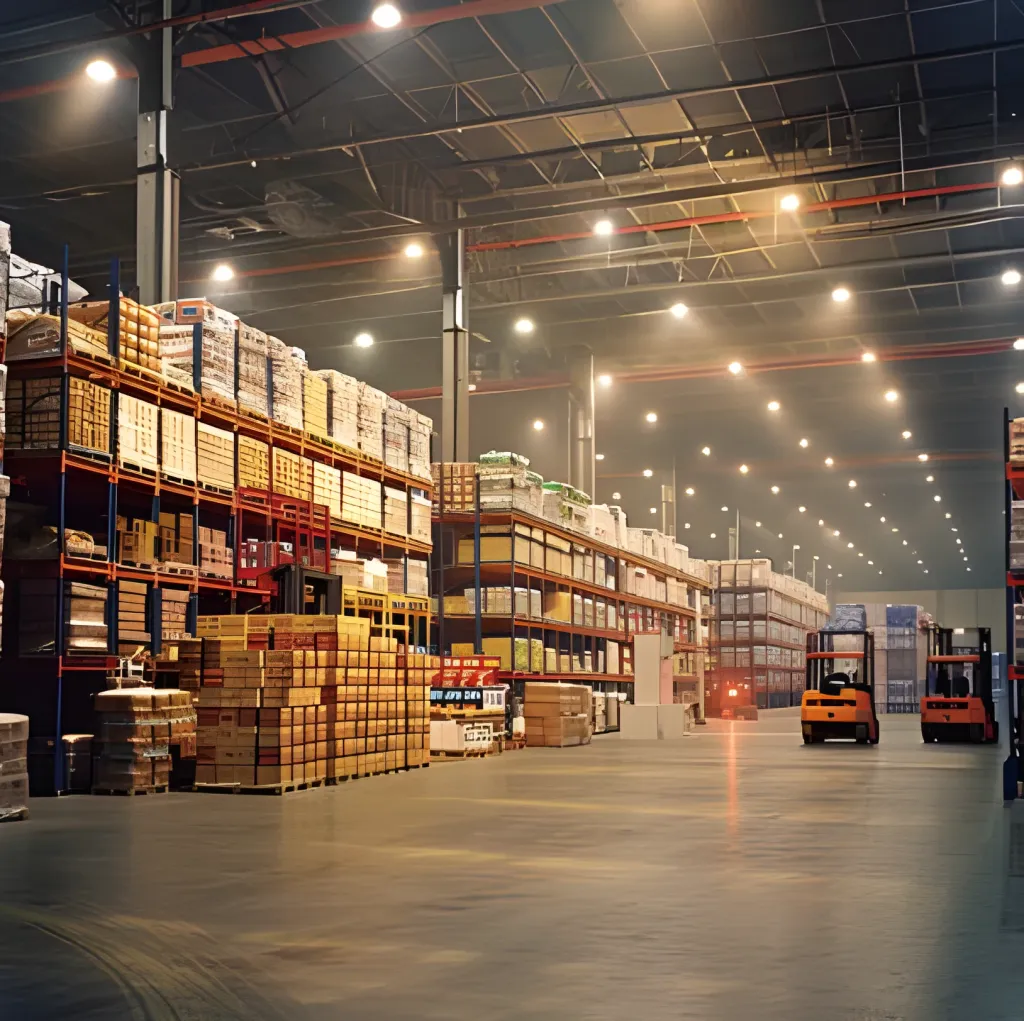

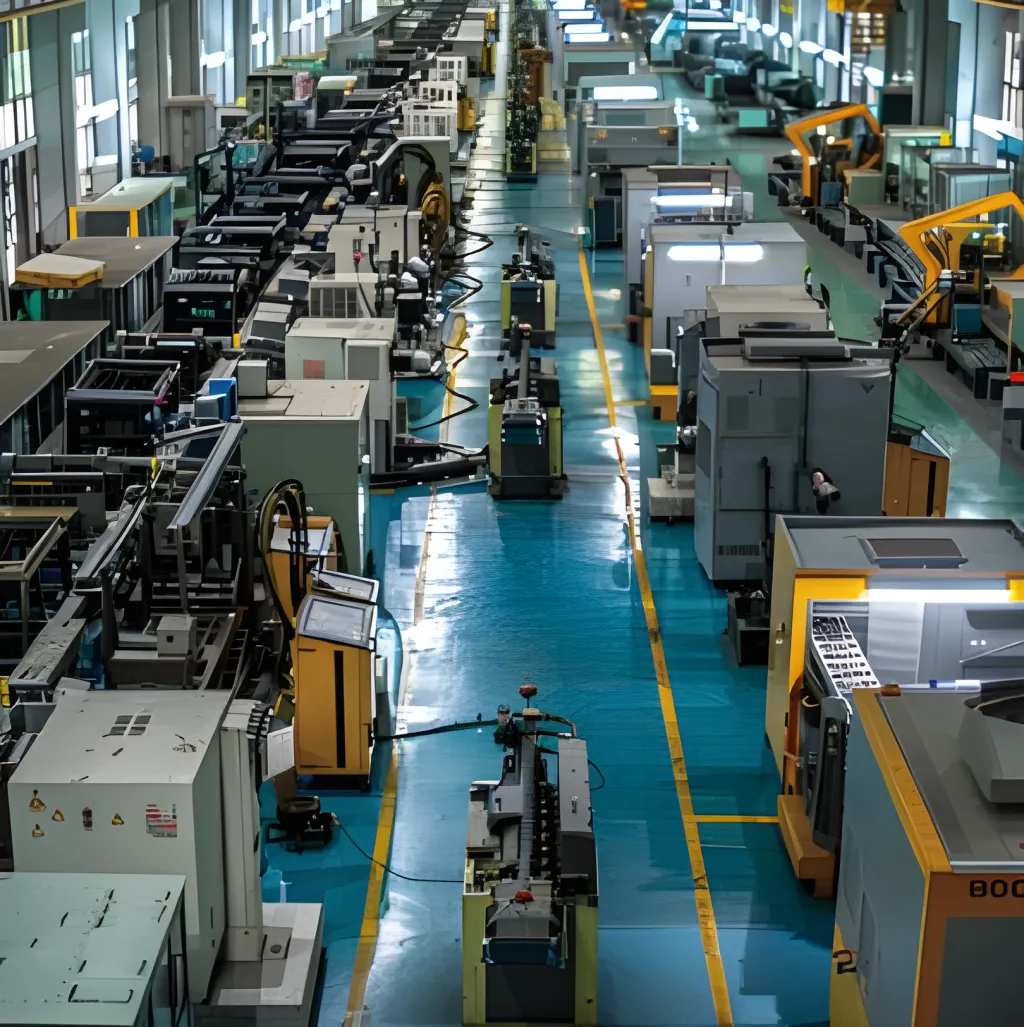

RL-EXP-HB5322 — Applications
RL-EXP-HB5322 — Applications
RL-EXP-HB5322 — Applications
RL-EXP-HB5322 — Applications

Specifications

Power
50‑70W / 100‑120W / 150‑200W / 300‑400W
Lumens
120‑140Lm /w
Beam angle
Type II
Input voltage
AC100‑275V, 50‑60Hz
Power factor
0.92‑0.98
Dimming / driver
0‑10V/1‑10V/DALI
Product size
23*23*23cm / 27*27*26cm / 33*33*30cm / 42*42*35cm
Material
High‑pressure die‑cast aluminum
Lifetime
50,000 hours at L70
Warranty
5 Years
Model
RL‑EXP‑HB5322
CCT (Typ. K ± 10%)
6000‑6500K
CRI (Ra)
≥75
Insulation class
Class I
Applicable cable diameter
Φ6‑14mm
Operating Temperature
−40 ~ +50℃
Storage humidity
10% ~ 85%
Protection
IP66, IK08
Inlet port specifications
G3/4
Corrosion protection grade
WF1
