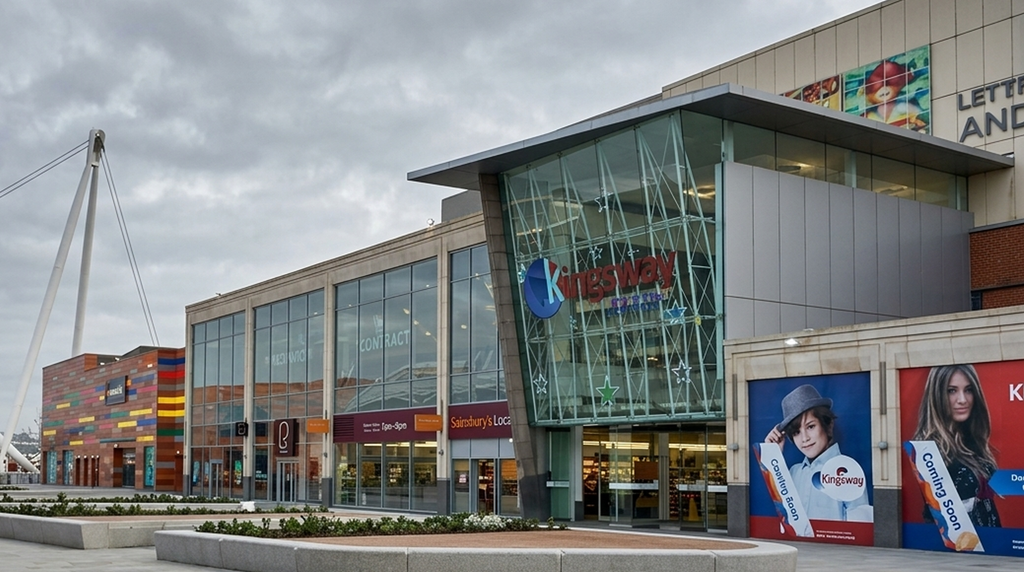

Kingsway Shopping Centre
Retail & Commercial · United Kingdom
COMPLETED 2020
In a shopping centre the tenants light their own units, and the landlord lights everything between them. That is a narrower brief than it sounds and a harder one: the malls have to feel generous enough to hold a premium tenant mix, they run fourteen hours a day seven days a week on a service charge everyone scrutinises, and a failed fitting over a trading floor cannot wait for a quiet week. The package here is deliberately short — two products carry almost the whole common part, with a third for the columns.

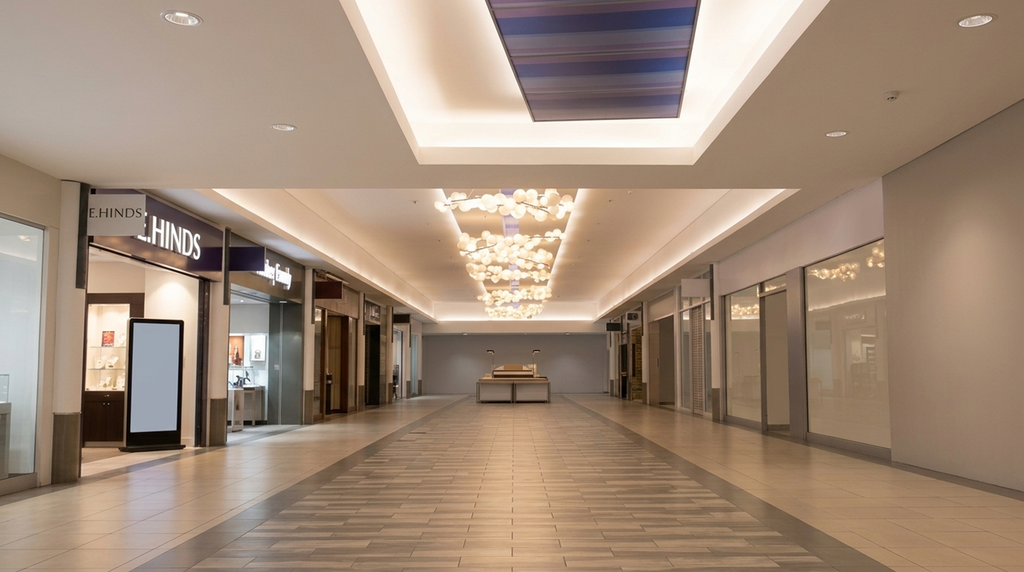

Jewellery Court
The Ceiling Does the Talking
Jewellery is sold under the tenant's own display lighting, so the landlord's job in this court is to make the space around the windows feel worth walking into without competing with what is in them. The whole effect is one coffer. RL-ST1330 runs the full perimeter of the recess at 24V, and 24V rather than 12V is the decision that matters on a run this long — voltage drop across a coffer of this size is visible as a dimmer far corner, and a mall ceiling is exactly where nobody can hide a mid-run injection point. RL-DL1601 fills the flat ceiling either side at a 110° beam, diffused rather than deep-cupped, because a polished stone floor throws a hard aperture straight back at anyone walking towards it. The pendant cluster and the printed ceiling panel are the designer's, not catalogue items.

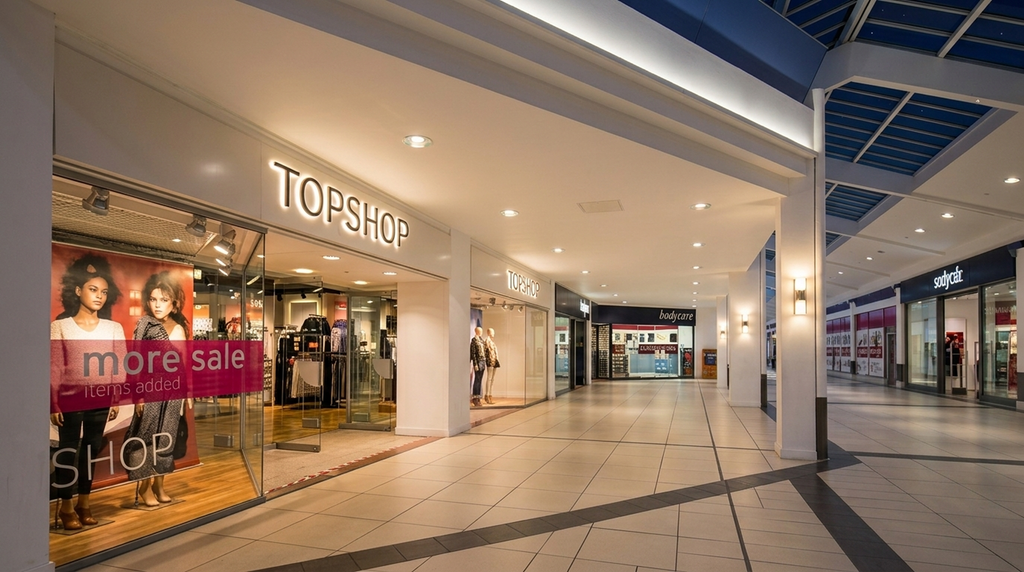

Main Mall
Under a Glazed Roof, After Dark
The main run is roofed in glazing, which means for most of the trading day this mall is lit by the sky and the electric scheme is doing very little. That reverses after dusk and in a Welsh winter, and the scheme has to hold the same brightness relationship with the shopfronts in both conditions or the units start to look dim. RL-DL1601 is repeated the length of the soffit on both sides — one aperture, one lamp type, one spare part for the whole mall, which is what a service charge actually rewards. RL-ST1330 runs the continuous line at the soffit edge, and that line is doing structural work rather than decorative: it puts light on the vertical face above the shopfronts so the ceiling plane reads as lit rather than as a dark lid over the units. RL-UPDN-01 is the fitting on the columns, at 5W or 10W with a CRI above 90, throwing up and down the column rather than out into the mall. The track spots visible inside the units are tenant fit-out.
Project specification
Every product in this project
All products →
