RL-UPDN-01
Outdoor Wall Light · Catalogue P184

RL-UPDN-01

RL-UPDN-01 is an outdoor wall light, available in 5W or 10W at 80 lumens per watt, with a 120° beam. COB LEDs in 3000K, 4000K or 6500K, CRI above 90. Aluminium and polycarbonate body in black or white, 98×45×58 mm and 180×75×85 mm sizes, rated IP65 for outdoor use. 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: residential; public realm and urban.

5W / 10W80LM/W3000K/4000K/6500K>90
RL-UPDN-01 at a glance

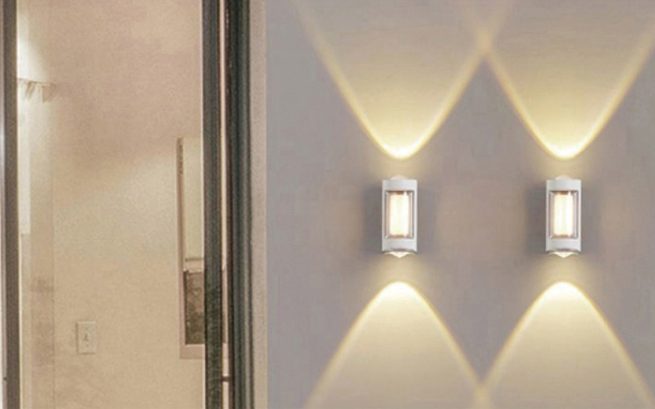

RL-UPDN-01 — Applications

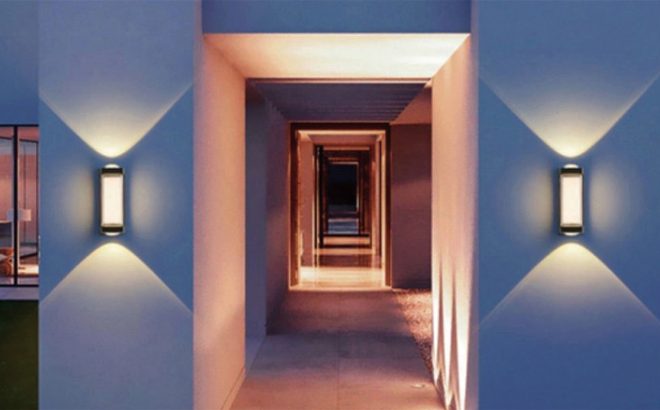

RL-UPDN-01 — Applications

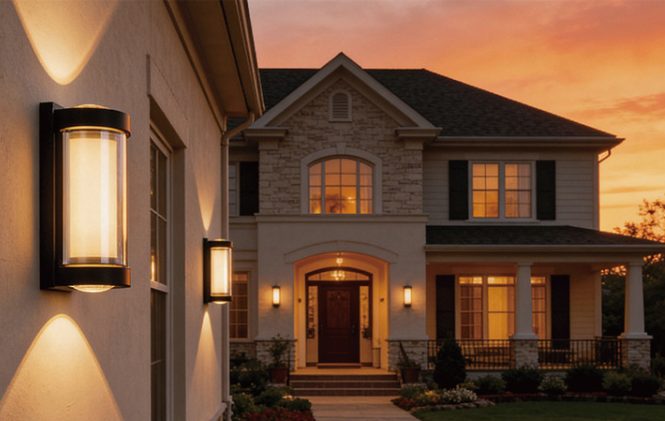

RL-UPDN-01 — Applications

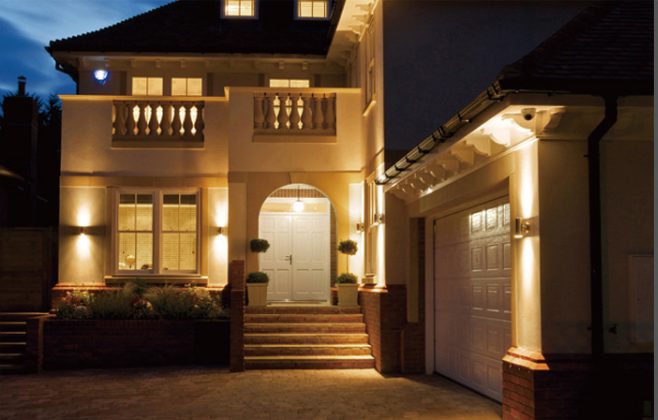

RL-UPDN-01 — Applications

Specifications

Power
5W / 10W
Lumens
80LM/W
CCT
3000K/4000K/6500K
CRI
>90
Beam angle
120°
IP rating
IP65
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0/1-10V/DALI / INCLUDED
Product size
L98*W45*H58 / L180*W75*H85
Material
ALUMINIUM+PC
Colour
BLACK/WHITE
LED chip
COB
Lifetime
50000 hours
Warranty
5 YEARS
Model
RL-UPDN-01-SERIES
ADJUSTABLE
NO
REFLECTOR
PC
DIFFUSER
PC
