RL-UW3035

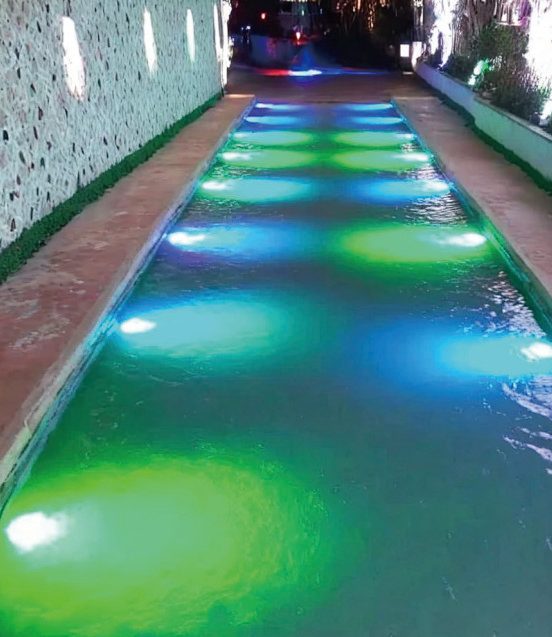

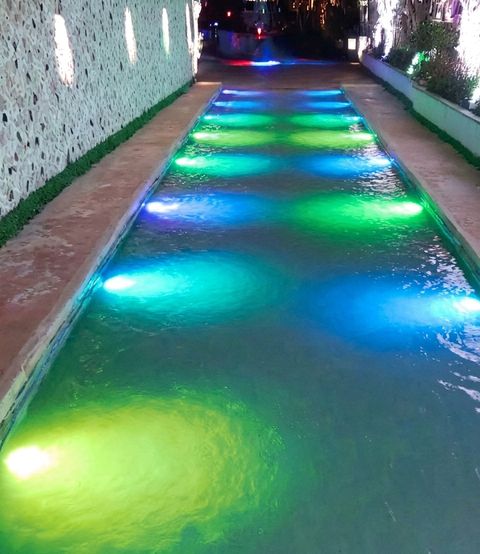

RL-UW3035 is a wall washer, available from 6W to 24W at 100 lumens per watt. SMD LEDs in 3000K, 4000K or 6500K, CRI above 70. Stainless steel, steel and glass body in stainless steel color, six sizes from Ø150×68 mm to Ø250×73 mm, rated IP67 for wet areas. 0–10V, 1–10V or DALI dimming, runs on 12V, rated 20,000 hours, and a two-year warranty. Typical uses: public realm and urban; worship & culture.
100LM/W3000K/4000K/6500K>70IP67
Specifications
- Power
- 6W / 9W / 12W / 15W / 18W / 24W
- Lumens
- 100LM/W
- CCT
- 3000K/4000K/6500K
- CRI
- >70
- IP rating
- IP67
- Input voltage
- 12V/24V
- Dimming / driver
- 0-10V/1-10V/DALI
- Product size
- φ150*H68 / φ168*H73 / φ180*H73 / φ210*H73 / φ230*H73 / φ250*H73
- Cut-out
- φ140*H76 / φ158*H76 / φ170*H76 / φ200*H76 / φ220*H76 / φ240*H76
- Material
- 304 stainless steel +glass
- Colour
- stainless steel color
- LED chip
- SMD
- Lifetime
- 20000 hours
- Warranty
- 2 years
- Item No.
- RL-UW3035
- Luminous angle
- 10° 30°45°60°
- Adjustable
- NO
