RL-UPDN-05
Outdoor Wall Light · Catalogue P189

RL-UPDN-05

RL-UPDN-05 is an outdoor wall light, available from 2×5W to 2×20W at 100 lumens per watt, with a 24° beam. COB LEDs in 3000K, 4000K or 6500K, CRI above 90. Aluminium and glass body in black or white, Ø65×160 mm, Ø90×260 mm and Ø110×300 mm sizes, rated IP65 for outdoor use. 0–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: residential; public realm and urban.

5W*2 / 10W*2 / 20W*2100LM3000K/4000K/6500K>90
RL-UPDN-05 at a glance

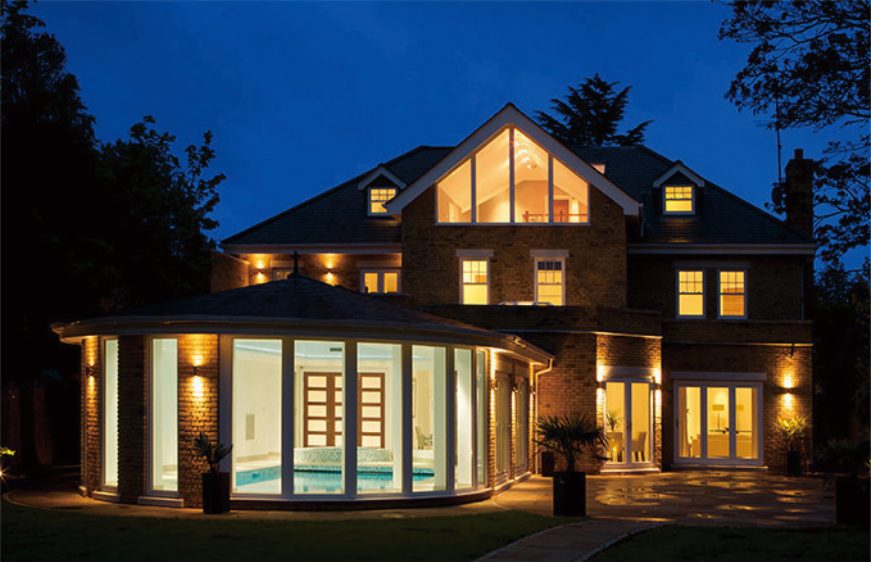

RL-UPDN-05 — Applications

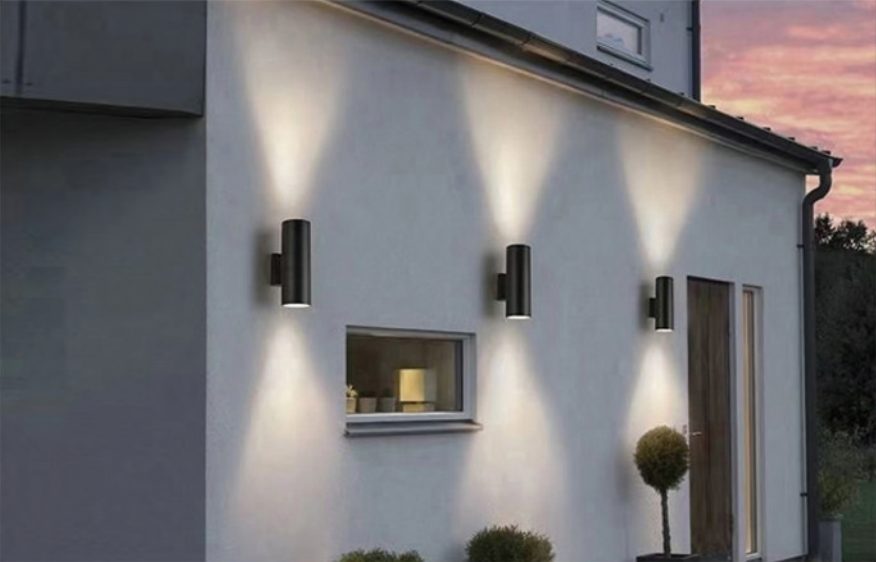

RL-UPDN-05 — Applications

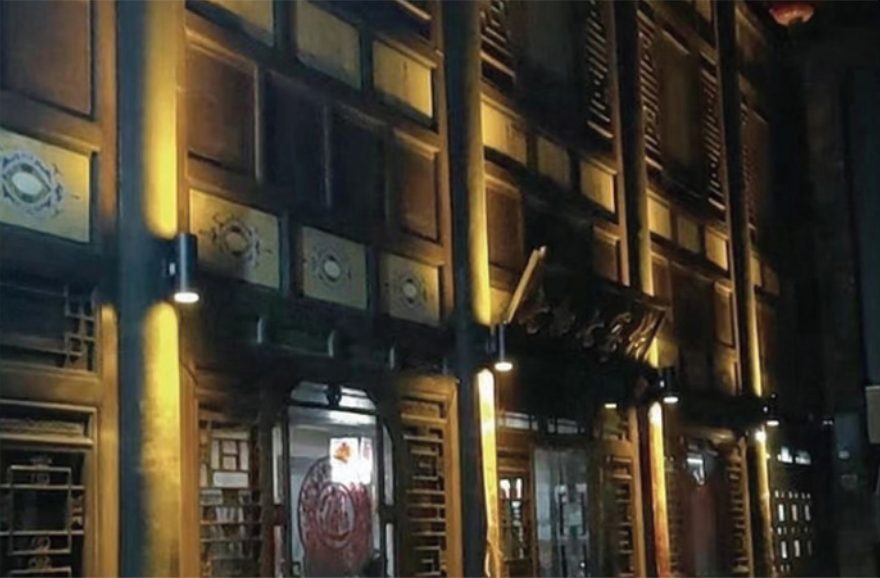

RL-UPDN-05 — Applications

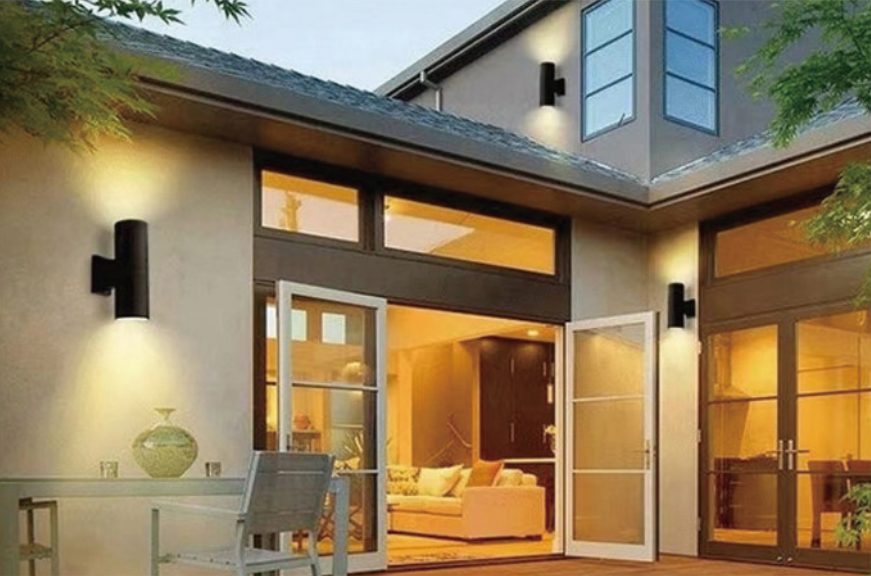

RL-UPDN-05 — Applications

Specifications

Power
5W*2 / 10W*2 / 20W*2
Lumens
100LM
CCT
3000K/4000K/6500K
CRI
>90
Beam angle
24°
IP rating
IP65
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0-10V/DALI / INCLUDED
Product size
φ65*H160 / φ90*H260 / φ110*H300
Material
ALUMINIUM+GLASS
Colour
BLACK/WHITE
LED chip
COB
Lifetime
50000 hours
Warranty
5 years
Model
RL-UPDN-05-SERIES
ADJUSTABLE
NO
REFLECTOR
GLASS
DIFFUSER
GLASS
