RL-BLK-DEC

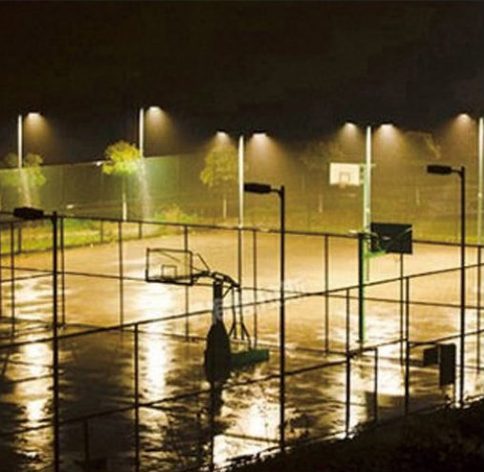

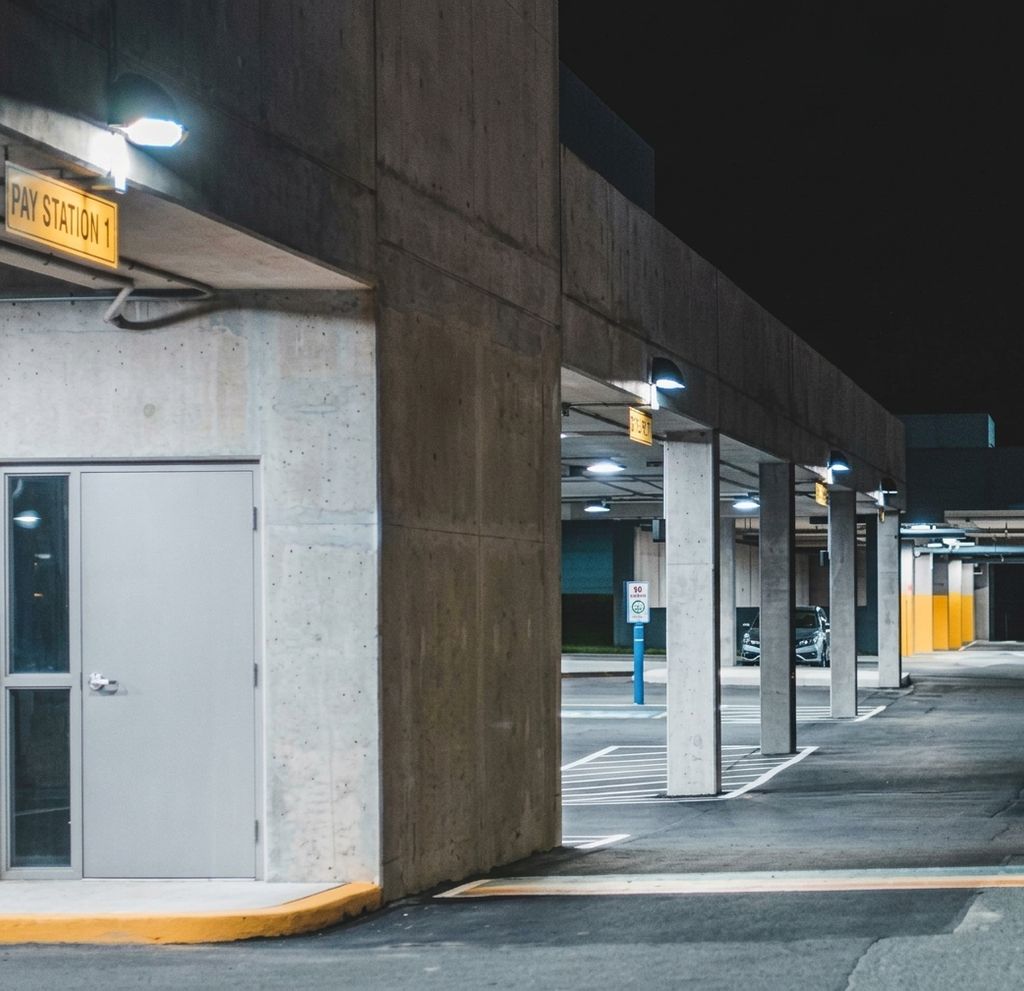

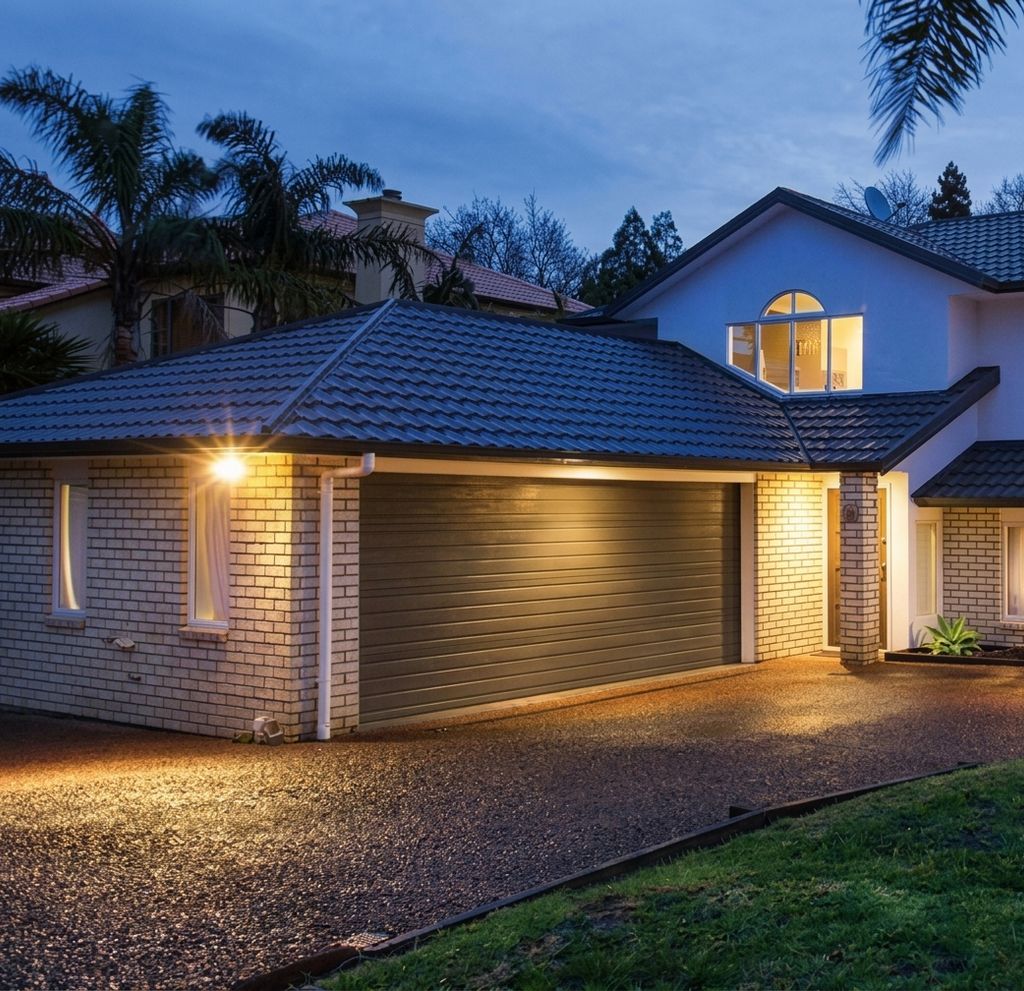

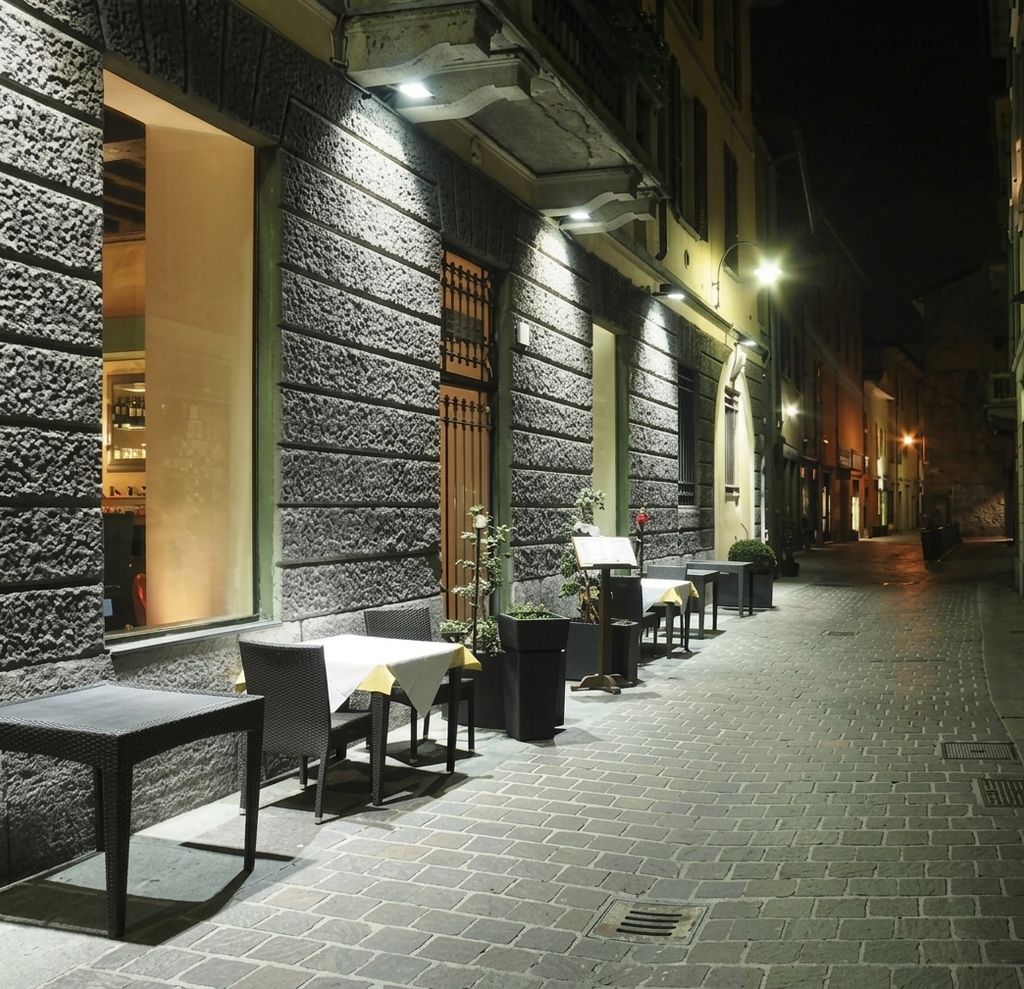

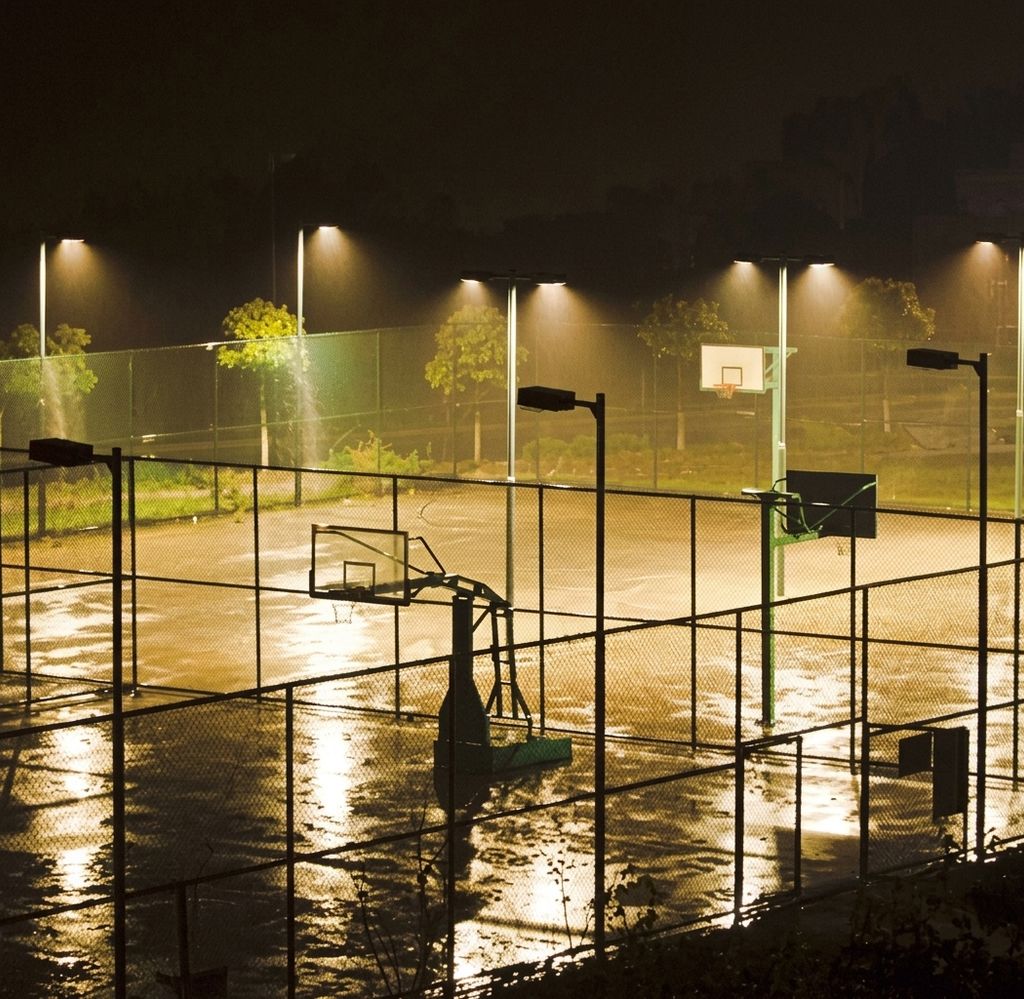

RL-BLK-DEC is an outdoor wall light, available from 60W to 120W at 15,600 lumens, with a 110° beam. Colour temperature 3000K, 4000K, 5000K, 5700K or 6500K, CRI above 80. Available in black or white, 382×280×242mm, rated IP65 for outdoor use, IK08. 0–10V, 1–10V or DALI dimming, runs on 100–277V, rated 50,000 hours, and a five-year warranty. Typical uses: residential; public realm and urban.
60W / 80W / 100W / 120W>80Ra110°IP65
Specifications
- Power
- 60W / 80W / 100W / 120W
- Lumens
- 7800LM / 10400LM / 10300LM / 15600LM
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- >80Ra
- Beam angle
- 110°
- IP rating
- IP65
- Input voltage
- AC100-277V
- Power factor
- >0.9
- Dimming / driver
- 0-10V/1-10V/DALI
- Product size
- L382*W280*H242mm
- Colour
- Black/White
- Lifetime
- >50000Hrs(Ta=30C aLM70)
- Warranty
- 5 Years
- Model
- RL-BLK-DEC-SERIES
- LED QTY
- 112 PCS / 154 PCS / 189 PCS / 224 PCS
- Lighting Effect
- 130LM/W
- Junction Temperature
- <75c(Ta=30C)
- Storage Temperature
- (-40~+70C)
- Power Frequency
- 50/60HZ

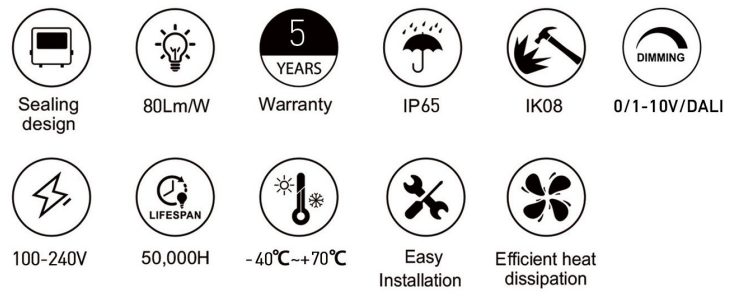

Features

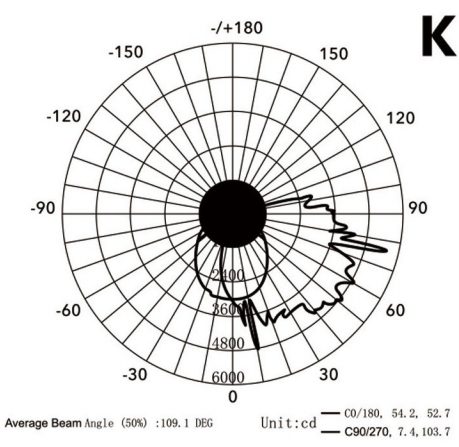

Photometrics
Asymmetrical Wideth19.500 Lumens 120W PC110°

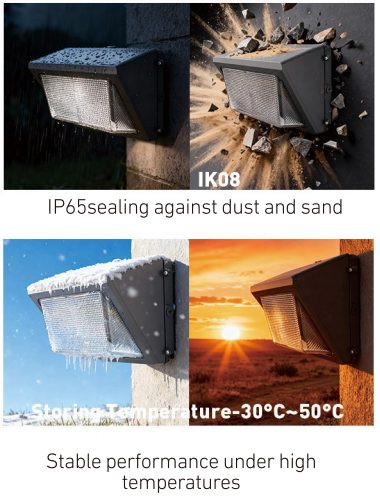

Outdoor Protection
IP65 and IK08 rating ensure reliableoperation in demanding outdoorenvironments.

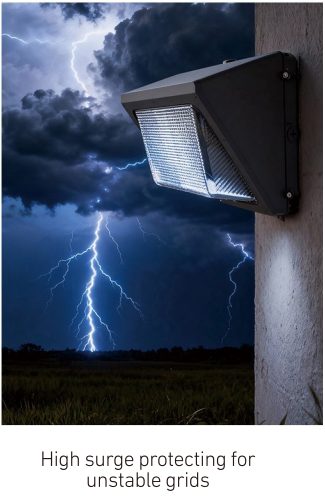

Surge Protection
High-efficiency constantcurrent drive, low energyconsumption full protection(over-current/voltage, lightninghigh temperature) for stableproduct performance and longlifespan.
Dimensions
