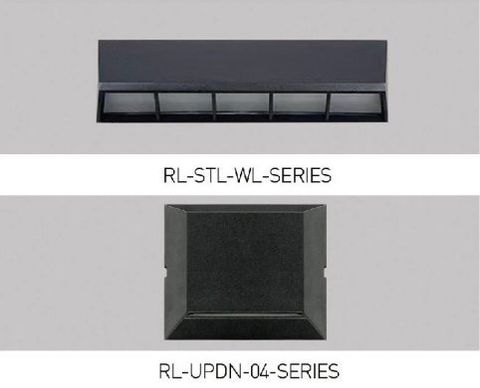

RL-STL-WL-SERIES
Series — RL-STL-WL
12W / 18W / 24W80LM/W3000K/4000K/6500K>80

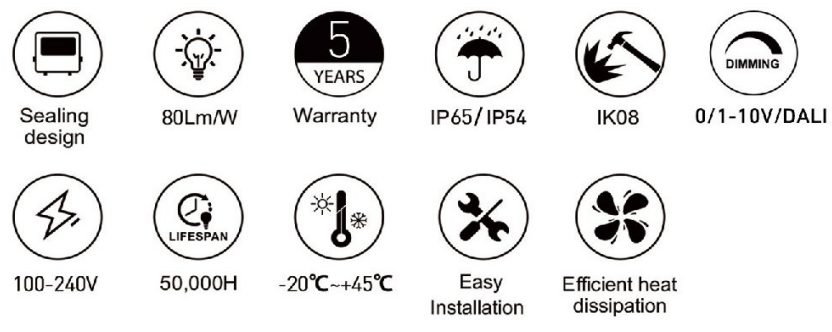

Specifications
- Power
- 12W / 18W / 24W
- Lumens
- 80LM/W
- CCT
- 3000K/4000K/6500K
- CRI
- >80
- Beam angle
- 120°
- IP rating
- IP65
- Input voltage
- 100-240V
- Power factor
- 0.9
- Dimming / driver
- 0-10V/DALI / INCLUDED
- Product size
- L200*W120*H80 / L300*W120*H80 / L400*W120*H80
- Material
- ALUMINIUM+PC
- Colour
- BLACK/WHITE
- LED chip
- SMD
- Lifetime
- 50000 hours
- Warranty
- 5 YEARS
- ADJUSTABLE
- NO
- REFLECTOR
- PC
- DIFFUSER
- PC
Features
Lamp body structure
The lamp body structure is made of high-qualityaluminum alloy die-casting, and the surface is outdoorelectrostatic spraying technology, which has strongweather resistance anc high reliability

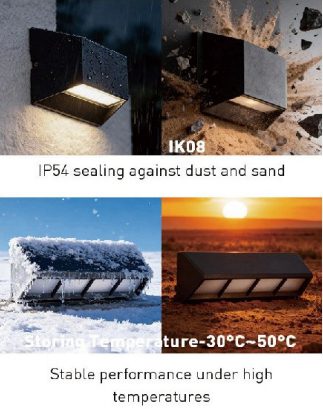

Outdoor Protection
IP54 and IK08 rating ensure reliableoperation in demanding outdoorenvironments.

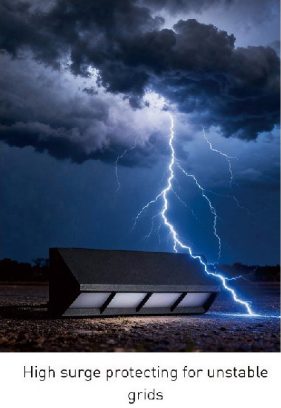

Surge Protection
High-efficiency constant current drive, low energy consumption full protection (over-current/voltage, lightning high temperature) for stable product performance and long lifespan.
