RL-SR2050-2

LED Street Light · Catalogue P387-388

RL-SR2050-2

Series — RL-SR2050

High performance series street light providing ultra-flexible lighting solutions. The luminaire is specifically designed with long-lasting performance, constructed of high-pressure die-cast aluminum. It is designed with ZHAGA and NEMA sockets to provide numerous control options, available with 0-10V, DALI or custom dimming profiles

100W / 120WType II , Type III

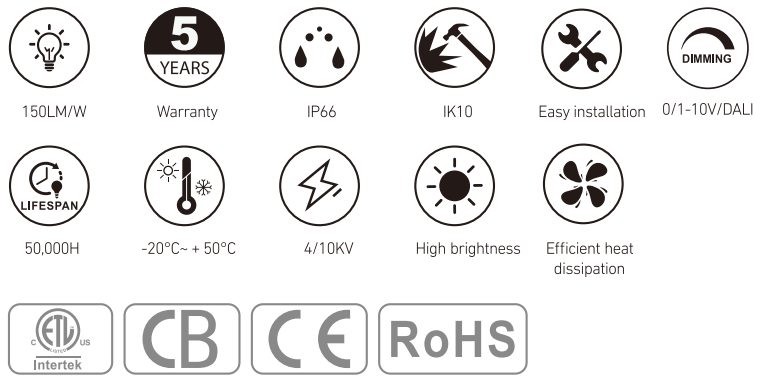

RL-SR2050-2 at a glance

Enquire about this product

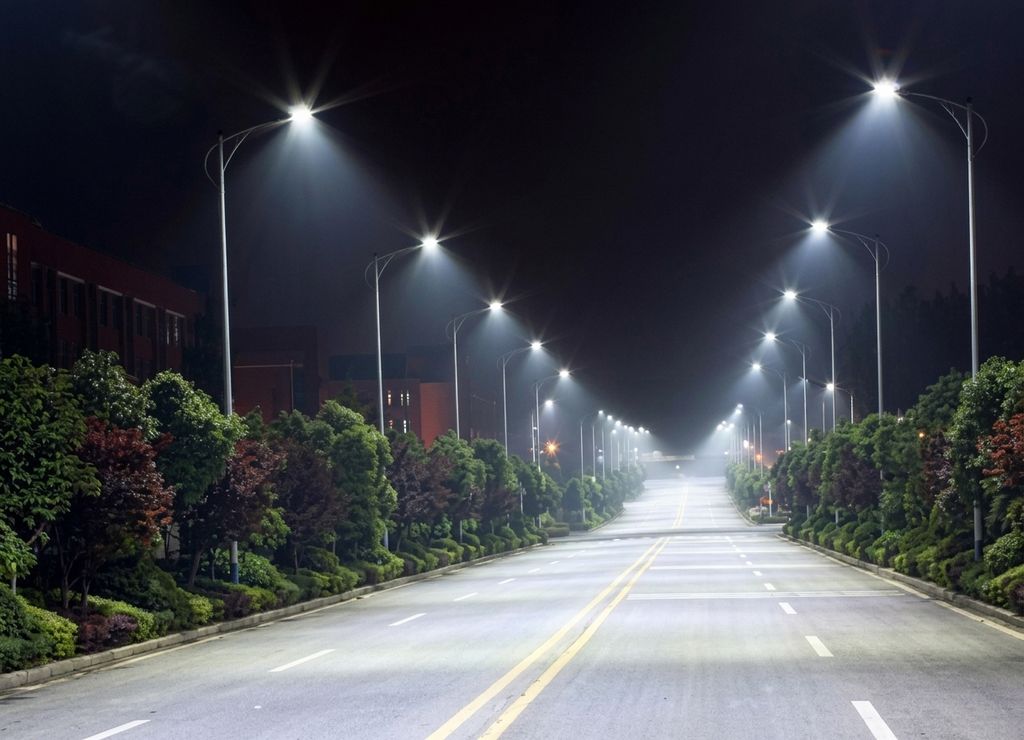

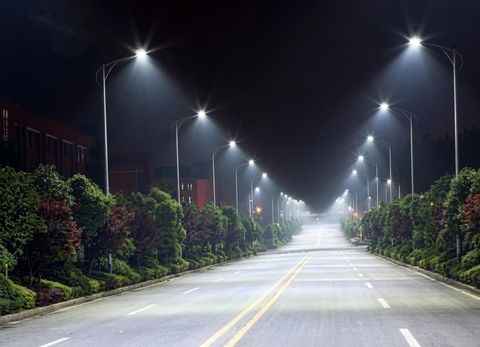

RL-SR2050-2 — Applications

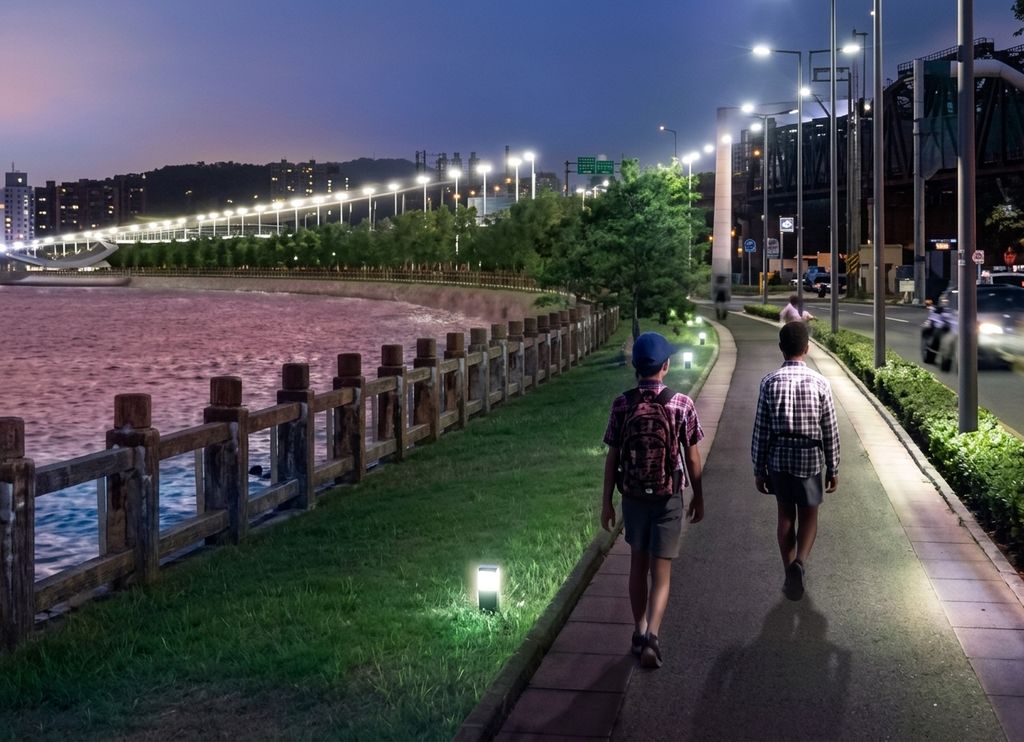

RL-SR2050-2 — Applications

Specifications

Power: 100W / 120W
Lumens: 15000Lm / 18000Lm / 150LM/W
Beam angle: Type II , Type III
Input voltage: 220-240V, 50-60Hz
Power factor: >0.95
Dimming / driver: 0-10V,1-10V, PWM, Dali, Timer dimming (Optional)
Material: ADC12 High-pressure die-cast aluminum RAL9023 gray
Warranty: 5 Years
CCT (Typ. K ± 10%): 3000K, 4000K, 5700K
CRI (Ra): ≥70
SDCM: ≤6
Surge Protection: CLASS II : Inventronics:L-N: 6KV
Lens: UV-resistant polycarbonate
Cover: Tempered glass
LED Drive: Inventronics
LED Brand/Model: EDISON 5050
Mounting: Side entry or post-top
Operating Temperature: -20 ~ +50℃
Storage humidity: 10% ~ 85%
Protection: IP66, IK10
Electrical class: Class II
Safety Approval: CE, CB, ENEC,ENEC+
Lumen maintenance: 50,000 hours at L70

Construction
