RL-SR2046-1

LED Street Light · Catalogue P379-380

RL-SR2046-1

Series — RL-SR2046

Energy-saving LED street light for a wide range of applications. It is featured with excellent heat sink design as well as superior optical design. It provides long-lasting performance even in diverse environments. The fixture is the optimal platform to achieve a perfect balance between performance and cost.

30W / 40WType II

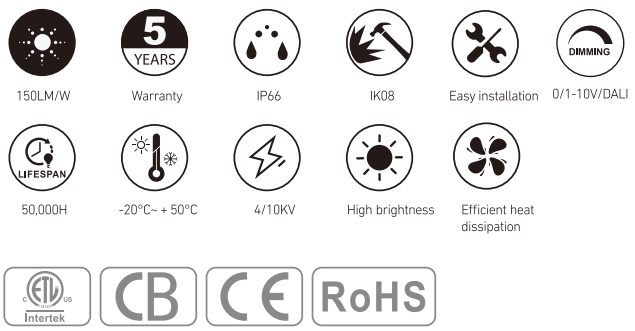

RL-SR2046-1 at a glance

Enquire about this product

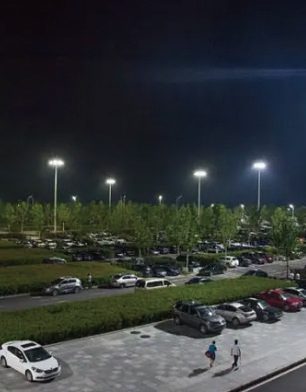

RL-SR2049-2 — Applications

RL-SR2049-2 — Applications

RL-SR2049-2 — Applications

Specifications

Power: 30W / 40W
Lumens: 4500Lm / 6000Lm / 150LM/W
Beam angle: Type II
Input voltage: AC220-240V 50/60Hz
Power factor: >0.95
Dimming / driver: 0-10V/1-10V/DALI / 0-10V, PWM, Timer dimming (Optional)
Material: High-pressure die-cast aluminum RAL9023 gray
Warranty: 5 Years
CCT (Typ. K ± 10%): 3000K, 4000K, 5700K
CRI (Ra): ≥70
SDCM: ≤6
Surge Protection: SP1 SP2: EDISON Isolated 4KV, SP3 SP4: MOSO 6KV**
Cover Lens: UV-resistant PC
LED Drive: SP1 SP2: EDISON Isolated , SP3 SP4: MOSO
LED Brand/Model: SP1 SP2 SP3 EDISON 3030 , SP4 EDISON 5050
Mounting: Side entry or post-top
Operating Temperature: -20 ~ +50℃
Storage humidity: 10% ~ 85%
Protection: IP66, IK08
Electrical class: Class I
Safety Approval: CB, CE, ENEC
Lumen maintenance: 50,000 hours at L70

Construction
