RL-PNL2684-RD-SERIES
Series — RL-PNL2684
This Round Slim LED Down Light with SMD LED and internal driver.
Both Recessed(32mm) and Surfaced Mounted(35mm)versions are available.
Waterproof can upgrade to IP44.
CCT Changeable by dip switch.
3000K/4000K/6500K/CCT80120°IP20/IP44

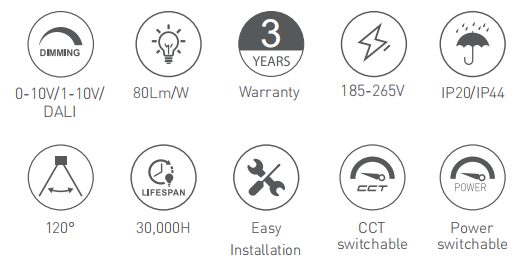

Specifications
- Power
- 6W / 12W / 18W / 20W / 24W
- CCT
- 3000K/4000K/6500K/CCT
- CRI
- 80
- Beam angle
- 120°
- IP rating
- IP20/IP44
- Input voltage
- 185-265V
- Power factor
- ≥0.7 / ≥0.8
- Dimming / driver
- 0-10V/1-10V/DALI
- Product size
- Ø115*32 / Ø170*32 / Ø220*32 / Ø240*32
- Cut-out
- 110-110 / 150-160 / 200-210 / 220-230
- Material
- PC
- Colour
- White/Black
- Flux(LM)
- 390 / 900 / 1350 / 1500 / 2050
- Flux(LM) (module)
- 525 / 1190 / 1880 / 2106 / 2560
- Energy Class
- F
