RL-PNL2661
This square LED slim panel light is designed for embedded installation, Adopt SMD LED, with built-in driver.
Large luminous area, light weight and easy to install.
The waterproof rating can be upgraded to IP65, The color temperature can be adjusted via a DIP switch.
40W/48W110LM/W3000K/4000K/6500K/CCT>80

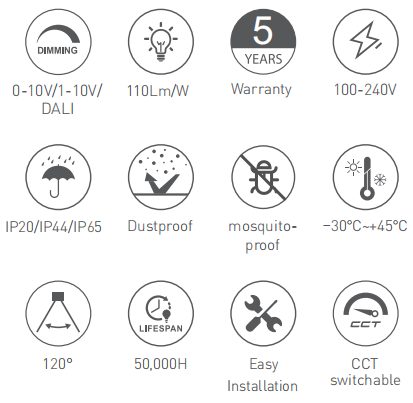

Specifications
- Power
- 40W/48W
- Lumens
- 110LM/W
- CCT
- 3000K/4000K/6500K/CCT
- CRI
- >80
- Beam angle
- 120°
- IP rating
- IP20/IP44/IP65
- Input voltage
- 100-240V
- Power factor
- 0.95
- Dimming / driver
- 0-10V/1-10V/DALI / Included
- Product size
- 595*595
- Material
- Aluminium / PS
- Colour
- White
- LED chip
- SMD
- Lifetime
- 50000 hours
- Warranty
- 5 Years
- Model
- RL-PNL2661 SERIES
- Adjustable
- NO
