RL-PNL2664
Diffuse reflection space light panel at air conditioning outlet
This LED panel light uses SMD LED and has a built-in driver. It is easy to install, and has a wide range of applications.
The waterproof rating can be upgraded to IP44, and the color temperature can be adjusted via a DIP switch.
30/40W120LM/W3000K/4000K/6500K/CCT>90

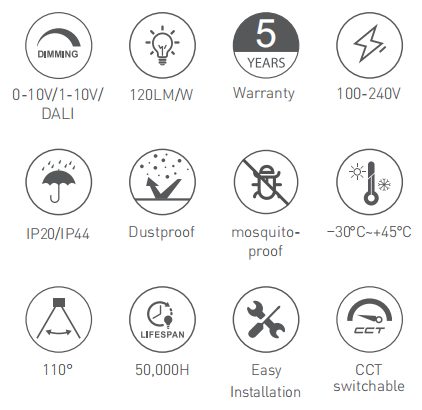

Specifications
- Power
- 30/40W
- Lumens
- 120LM/W
- CCT
- 3000K/4000K/6500K/CCT
- CRI
- >90
- Beam angle
- 110°
- IP rating
- IP20/IP44
- Input voltage
- 100-240V
- Power factor
- 0.95
- Dimming / driver
- 0-10V/1-10V/DALI / Included
- Material
- Aluminium / PS
- Colour
- White
- LED chip
- SMD
- Lifetime
- 50000 hours
- Warranty
- 5 Years
- Model
- RL-PNL2664-SERIES
- Adjustable
- NO
