RL-IG2903

LED Inground Light · Catalogue P285-286

RL-IG2903

Outdoor installation, processed from high‑quality aluminum. Anti‑corrosive and UV‑resistant powder‑coating, aluminum cover, PC light panel.

3W / 6W / 9W / 12W / 15W2700K/3000K/4000K/5700KRa≥8015°, 24°, 36°, 50°

RL-IG2903 at a glance

Enquire about this product

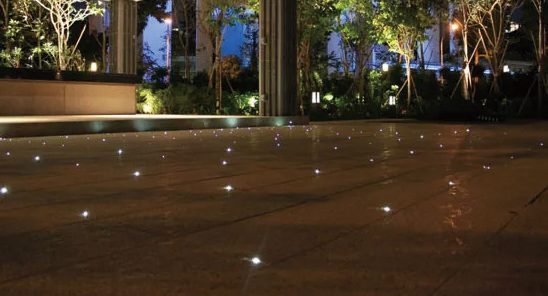

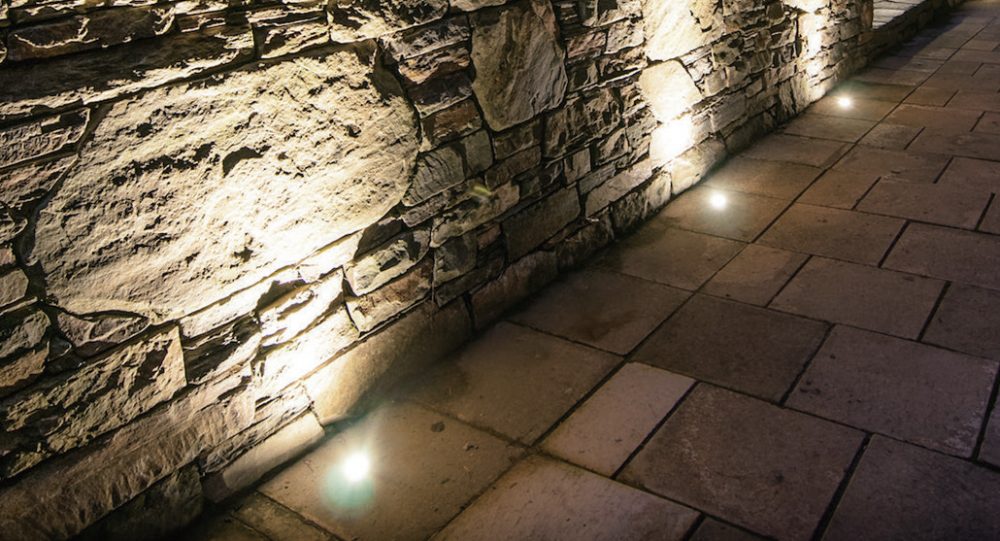

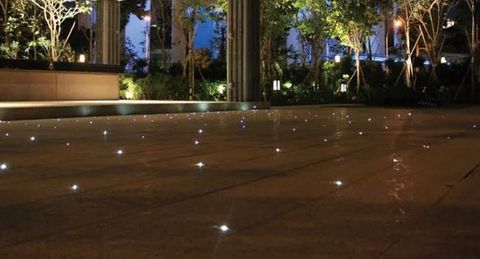

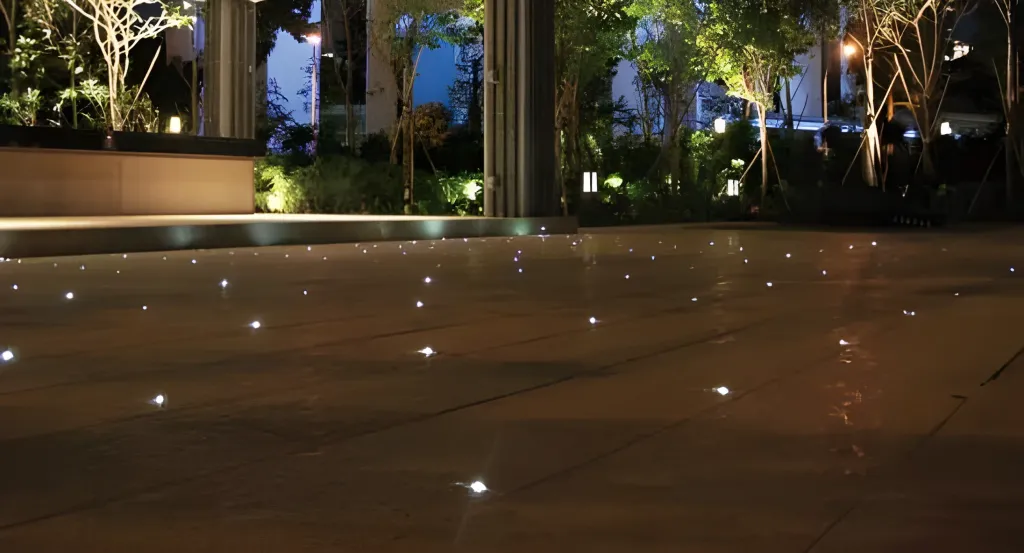

RL-IG2903 — Applications

RL-IG2903 — Applications

Specifications

Power: 3W / 6W / 9W / 12W / 15W
Lumens: 286LM / 480LM / 650LM / 920LM / 1180LM
CCT: 2700K/3000K/4000K/5700K
CRI: Ra≥80
Beam angle: 15°, 24°, 36°, 50°
IP rating: IP67 Waterproof
Input voltage: DC12V‑DC24V as standard (AC12V optional)
Power factor: 0.5
Dimming / driver: 0‑10V/1‑10V/DALI / INCLUDED
Material: Dark grey Aluminium
Warranty: 3 years
Model: RL‑IG2903
Cover: SS316 L mirror polishing
Accessories: Mounting tube(Included) / Honeycomb(Optional)
LED type: CREE COB LED
Insulation class: Class III
IK rating: IK06
Power cord: Rubber cable 1M 2 *1mm²

Dimensions

RL-IG2903 — dimensionDrawings
