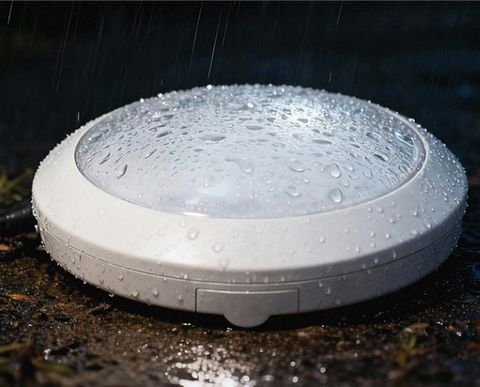

RL-BH3022
RL-BH3022 is a bulkhead light, available in 18W or 24W, with a 120° beam. CRI above 80. Available in white or gray, rated IP54 for sheltered outdoor use. 0–10V, 1–10V or DALI dimming, runs on 220V, rated 50,000 hours, and a five-year warranty. Typical uses: residential; public realm and urban.
18W / 24W>80120°IP54
Specifications
- Power
- 18W / 24W
- Lumens
- 1530±10% lm / 2040±10% lm
- CRI
- >80
- Beam angle
- 120°
- IP rating
- IP54
- Input voltage
- 220V
- Power factor
- >0.9
- Dimming / driver
- 0-10V/1-10V/DALI
- Colour
- WHITE/GRAY
- Lifetime
- 50000 hours
- Warranty
- 5 YEARS
- Model
- RL-BH3022-SERIES
- Luminous Efficacy
- 80±10% lm/W
- Color Temperature Segment
- 3000K/4000K/6500K
- Working Environment Humidity
- 0-95%
- Working Environment Temperature Range
- -20℃~45℃
- Storage Temperature
- -25℃~50℃
Features
Outdoor Protection
Dimensions
