RL-BH3020-RD
Series — RL-BH3020
RL-BH3020-RD is a bulkhead light, part of the BH3020 series, 2,000 lumens, with a 120° beam. Colour temperature white from 2800K to 3000K, 4000K to 4500K and 6000K to 6500K, CRI 70 or 80. Available in black or white, rated IP54 for sheltered outdoor use. 0–10V, 1–10V or DALI dimming, runs on 100–260V, rated 50,000 hours, works from −20°C to 40°C, and a five-year warranty. Typical uses: residential; public realm and urban.
Ra>70/80120°IP54
Specifications
- CCT
- 2800~3000K/4000~4500K/6000~6500K
- CRI
- Ra>70/80
- Beam angle
- 120°
- IP rating
- IP54
- Input voltage
- AC100~260V
- Power factor
- >0.5
- Dimming / driver
- 0-10V/1-10V/DALI
- Colour
- BLACK/WHITE
- Warranty
- 5 YEARS
- LED Consumption
- 8W±1.0W / 12W±1.2W / 15W±1.5W / 20W±2W
- System consumption
- 8W / 12W / 15W / 20W
- Output current
- 240MA
- Luminous
- 800LM / 1200LM / 1500LM / 2000LM
- Working temperature
- -20℃~40℃
- Storage temperature
- -30℃—55℃
- Working life-span
- 50000 hours

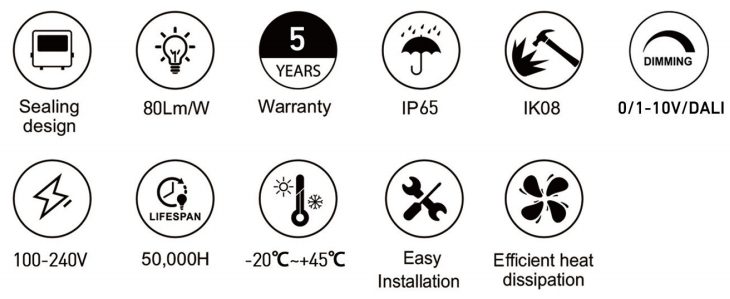

Features
Outdoor Protection
Dimensions
