RL-TRL2297
LED Spot Light · Catalogue P015

RL-TRL2297

RL-TRL2297 is an LED spotlight, available in 12W at 100 lumens per watt, with 15°, 24°, 36° or 50° beams. COB LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 90. Aluminium and glass body in white or black, 84×104×86 mm, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

12W100LM/W3000K/4000K/6500K/CCT>90
RL-TRL2297 at a glance

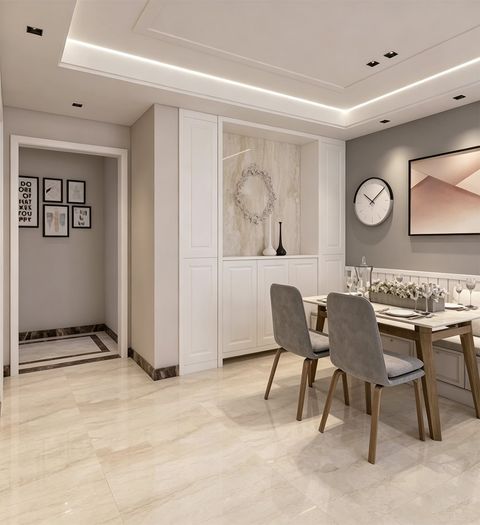

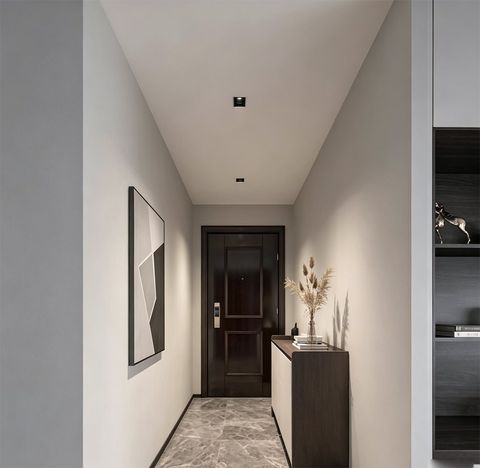

RL-TRL2301 — Applications
RL-TRL2301 — Applications

Specifications

Power
12W
Lumens
100LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>90
Beam angle
15° 24° 36° 50°
IP rating
IP20
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
84*104*86
Cut-out
75*75
Material
ALUMINIUM / Glass
Colour
White/Black
LED chip
COB
Lifetime
50,000 hours
Warranty
5 YEARS
ADJUSTABLE
NO
