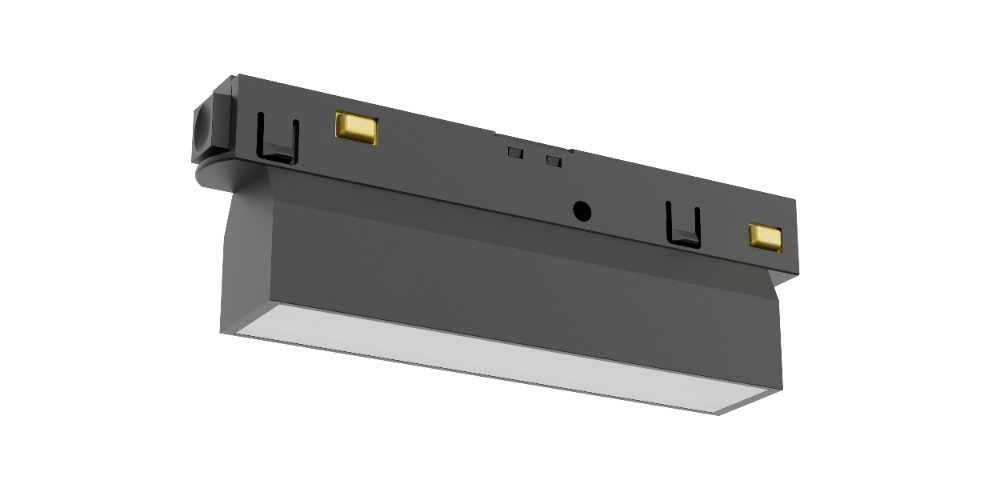

RL-TL1022
Magnetic System · Catalogue P091

RL-TL1022

RL-TL1022 is a magnetic track light, available from 6W to 22W at 100 lumens per watt, with a 120° beam. Colour temperature 3000K, 4000K or 6000K (or tunable white), CRI above 90 or a full-spectrum option. Available in black or white, or a custom finish, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, runs on 48V DC, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

≥90/FULL SPECTRUM120°
RL-TL1022 at a glance

Specifications

Power
6W / 8W / 12W / 15W / 20W / 22W
CCT
3000K/4000K/6000K/DIMMABLE & CCT ADJUSTABLE/CUSTOMIZED
CRI
≥90/FULL SPECTRUM
Beam angle
120°
Input voltage
DC48V
Dimming / driver
0-10V/1-10V/DALI
Lifetime
50000 hours
Warranty
5 YEARS
Model
RL-TL-1022
HOUSING COLOR
BLACK/WHITE/CUSTOMIZED
IP RATE
IP20
SMART DIMMING
YES
LIGHT SOURCE LUMENS
≥100LM/W

Dimensions

RL-TL1022 — dimensionDrawings
