RL-SPL2354
LED Spot Light · Catalogue P015

RL-SPL2354

RL-SPL2354 is an LED spotlight, available from 7W to 28W at 100 lumens per watt, with 15°, 24° or 36° beams. COB LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 90. Aluminium and glass body in white or black, Ø65×72 mm, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

7W / 12W / 20W / 28W100LM/W3000K/4000K/6500K/CCT>90
RL-SPL2354 at a glance

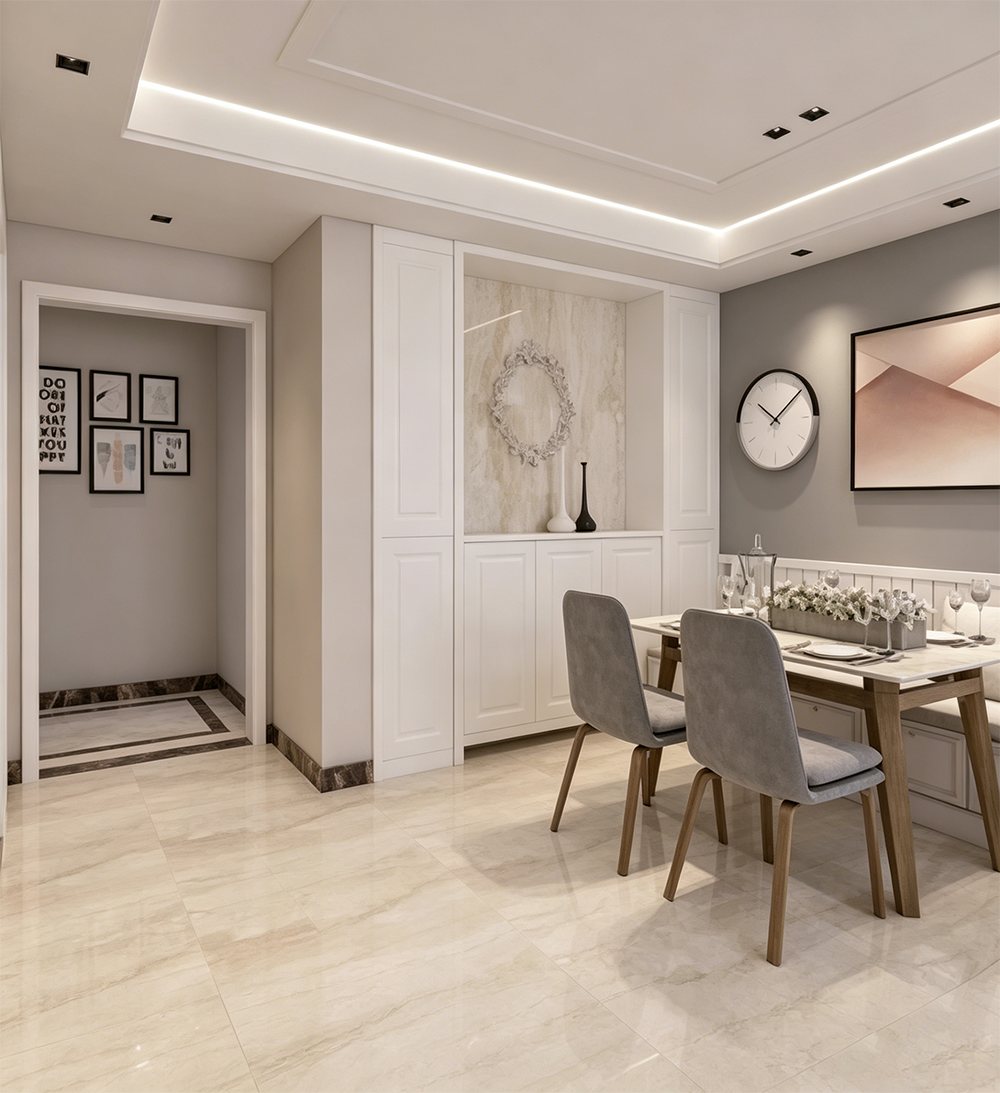

RL-TRL2301 — Applications

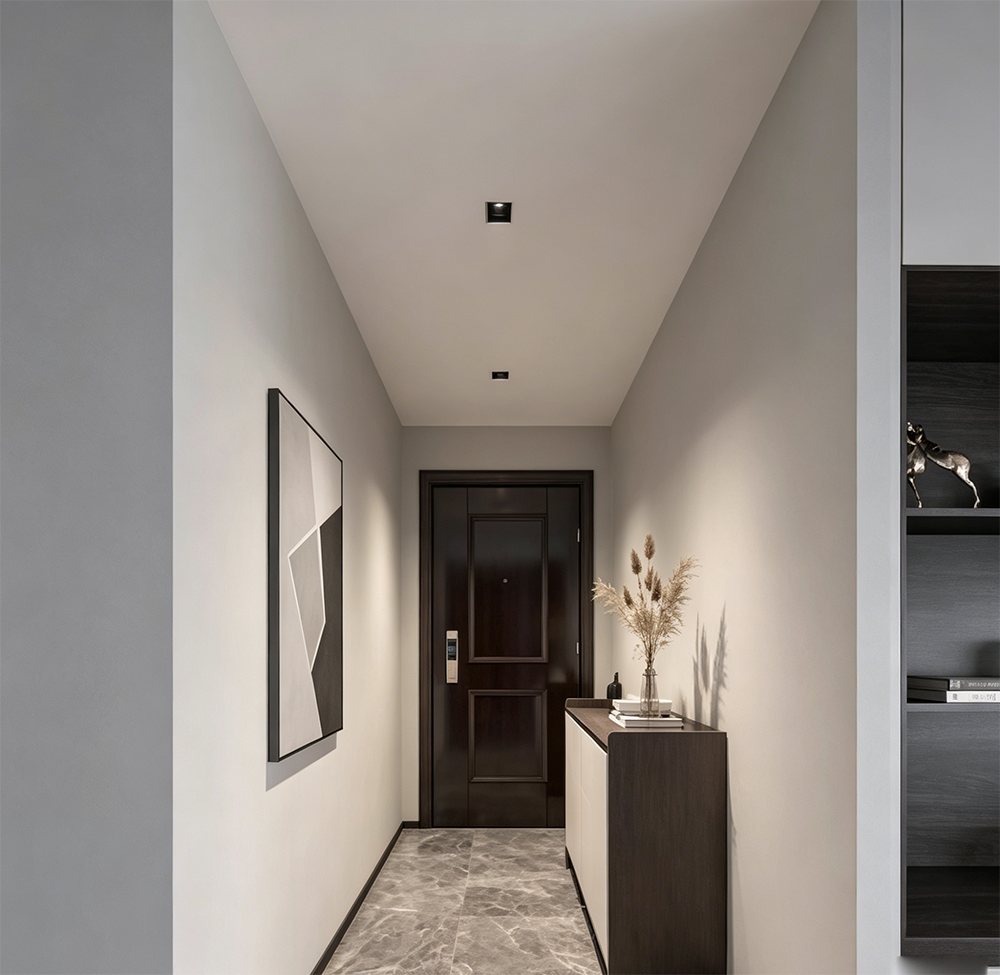

RL-TRL2301 — Applications

Specifications

Power
7W / 12W / 20W / 28W
Lumens
100LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>90
Beam angle
15° 24° 36°
IP rating
IP20
Input voltage
100-240V
Power factor
0.5
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
φ65*H72
Cut-out
φ55 / φ75 / φ95 / φ115
Material
ALUMINIUM / Glass
Colour
White/Black
LED chip
COB
Lifetime
50,000 hours
Warranty
5 YEARS
ADJUSTABLE
NO
