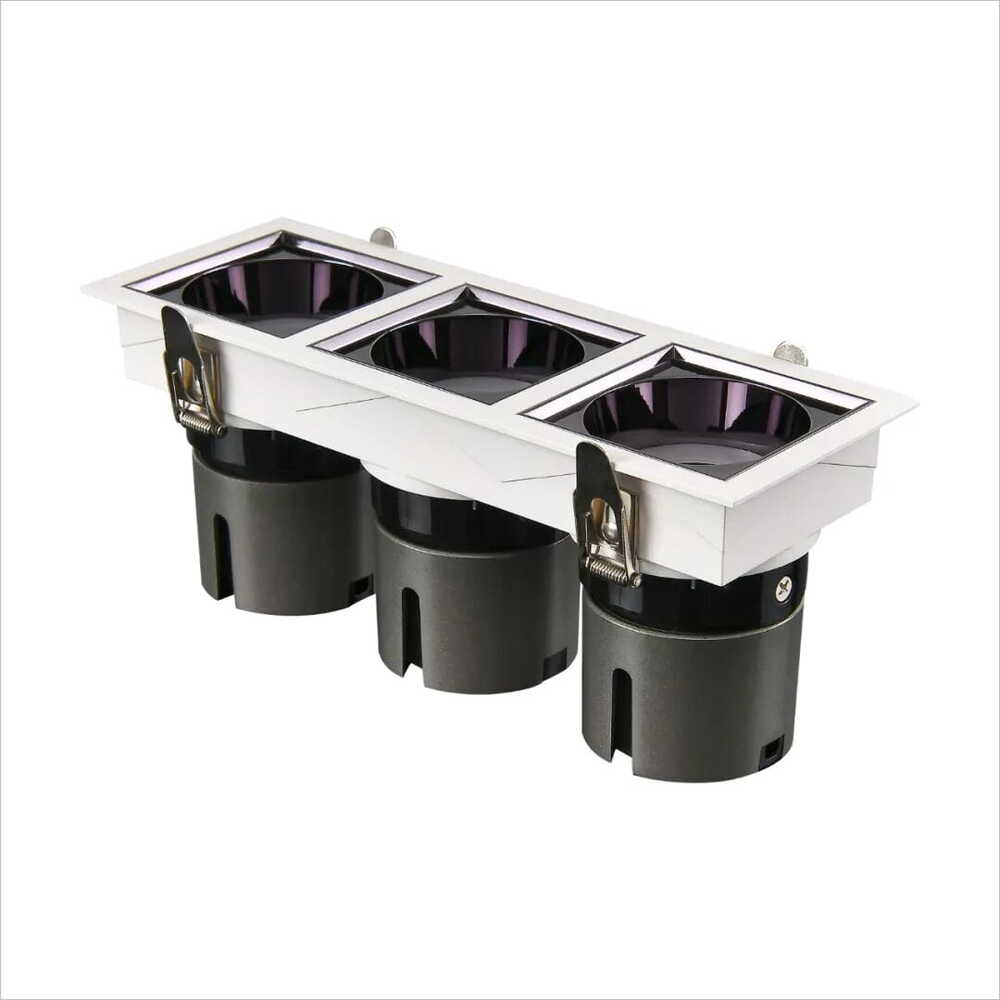

RL-SPL2296
LED Spot Light · Catalogue P012

RL-SPL2296

RL-SPL2296 is an LED spotlight, available in 3×12W or 3×15W at 75 to 80 lumens per watt, with a 36° beam. COB LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 80. Aluminium body in white or black, 247×89×95 mm and 247×89×106 mm sizes, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 220–240V, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

12W*3 / 15W*375-80LM/W3000K/4000K/6500K/CCT>80
RL-SPL2296 at a glance
RL-SPL2348 — Applications

Specifications

Power
12W*3 / 15W*3
Lumens
75-80LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>80
Beam angle
24/36°
IP rating
IP20
Input voltage
220-240V AC
Power factor
0.95
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
247*89*95 / 247*89*106
Cut-out
240*80
Material
ALUMINIUM
Colour
White/Black
LED chip
COB
Lifetime
50,000 hours
Warranty
5 YEARS
ADJUSTABLE
YES
