RL-SPL2288
LED Spot Light · Catalogue P011

RL-SPL2288

RL-SPL2288 is an LED spotlight, available from 7W to 20W at 100 lumens per watt, with a 50° beam. COB LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 90. Aluminium and polycarbonate body in white or black, 65×65×99 mm, 85×85×106 mm and 85×85×118 mm sizes, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

7W / 12W / 20W100LM/W3000K/4000K/6500K/CCT>90
RL-SPL2288 at a glance

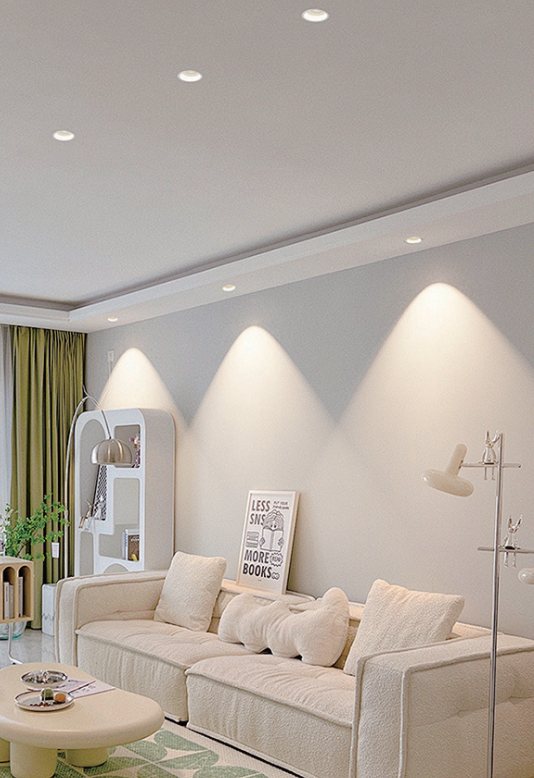

RL-SPL2288 — Applications

Specifications

Power
7W / 12W / 20W
Lumens
100LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>90
Beam angle
15/24/36/50°
IP rating
IP20
Input voltage
100-240V
Power factor
0.9
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
65*65*99 / 85*85*106 / 85*85*118
Cut-out
58*88 / 78*75
Material
ALUMINIUM / PC
Colour
WHITE/BLACK
LED chip
COB
Lifetime
50,000 hours
Warranty
5 YEARS
ADJUSTABLE
YES
