RL-SPL2231
LED Spot Light · Catalogue P008

RL-SPL2231

RL-SPL2231 is an LED spotlight, available from 9W to 15W at 100 lumens per watt, with a 36° beam. COB LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 80. Aluminium and acrylic body in white or black, six sizes from Ø90×65 mm to 138×138×95 mm, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 85–265V, rated 50,000 hours, and a three-year warranty. Typical uses: hospitality and wellness; retail and commercial.

9W / 12W / 15W100LM/W3000K/4000K/6500K/CCT>80
RL-SPL2231 at a glance

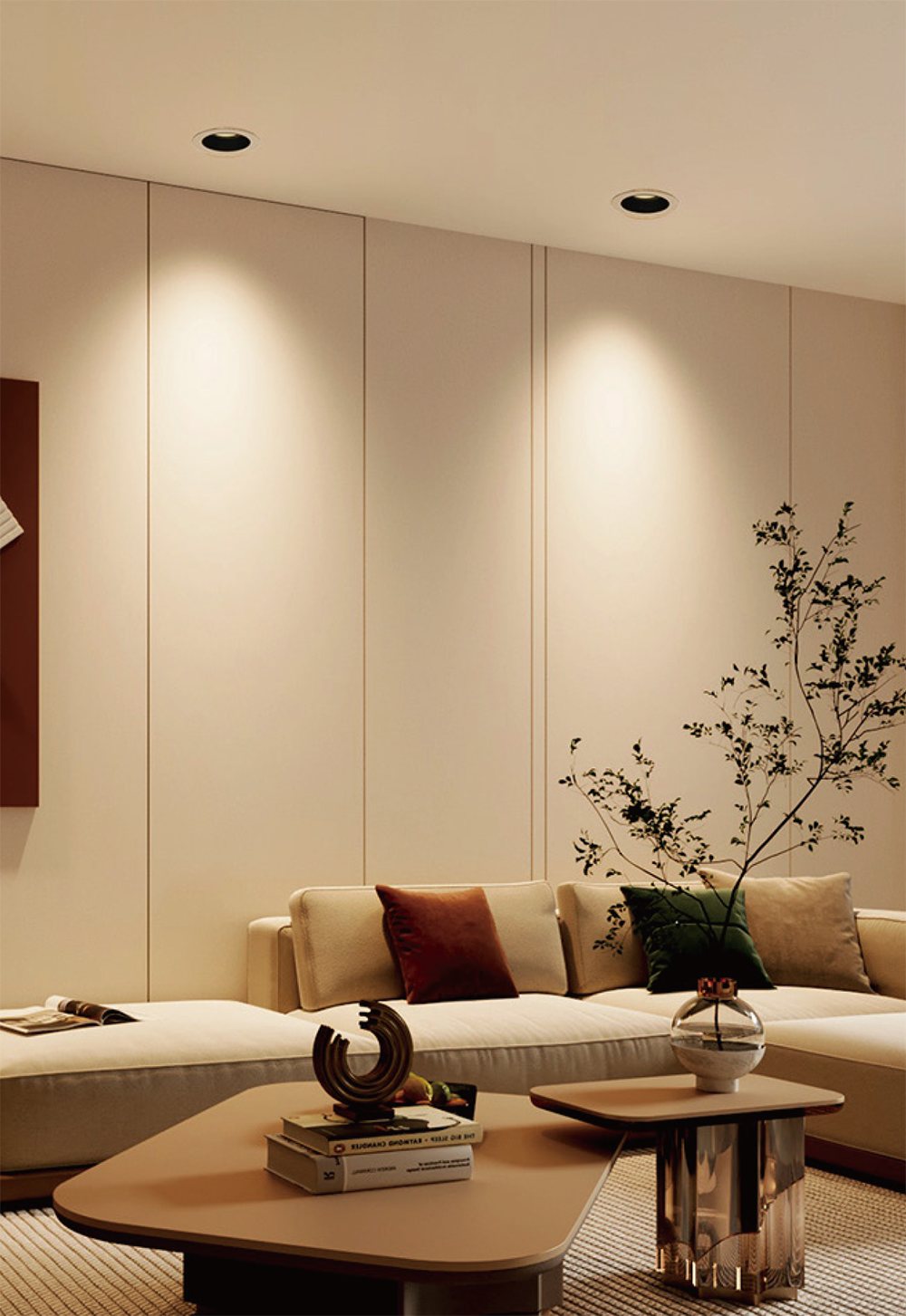

RL-SPL2231 — Applications

Specifications

Power
9W / 12W / 15W
Lumens
100LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>80
Beam angle
15/24/36°
IP rating
IP20/44
Input voltage
85 - 265V
Power factor
0.5
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Product size
φ90*H65 / φ110*H75 / φ138*H95 / 90*90*H65 / 110*110*H75 / 138*138*H95
Cut-out
φ75 / φ95 / φ120
Material
ALUMINIUM /ACRYLIC
Colour
White/Black
LED chip
COB
Lifetime
50,000 hours
Warranty
3/5 YEARS
Model
RL-SPL2231-RD / RL-SPL2231-SQ
ADJUSTABLE
YES
