RL-SPFL5288
Series — RL-SPFL5288/5289

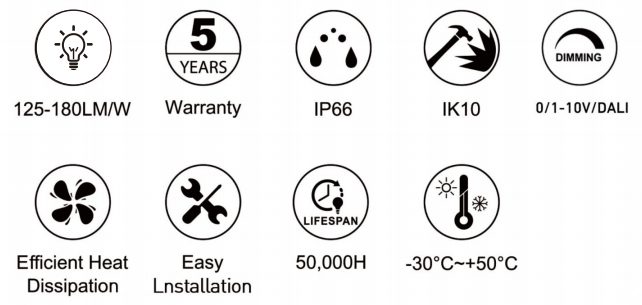

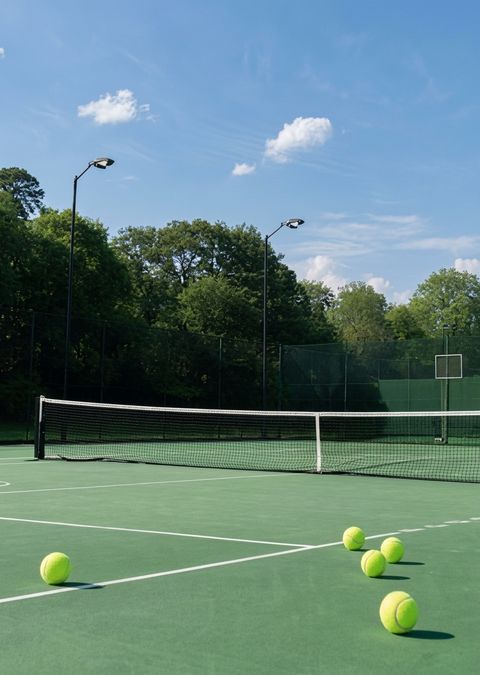

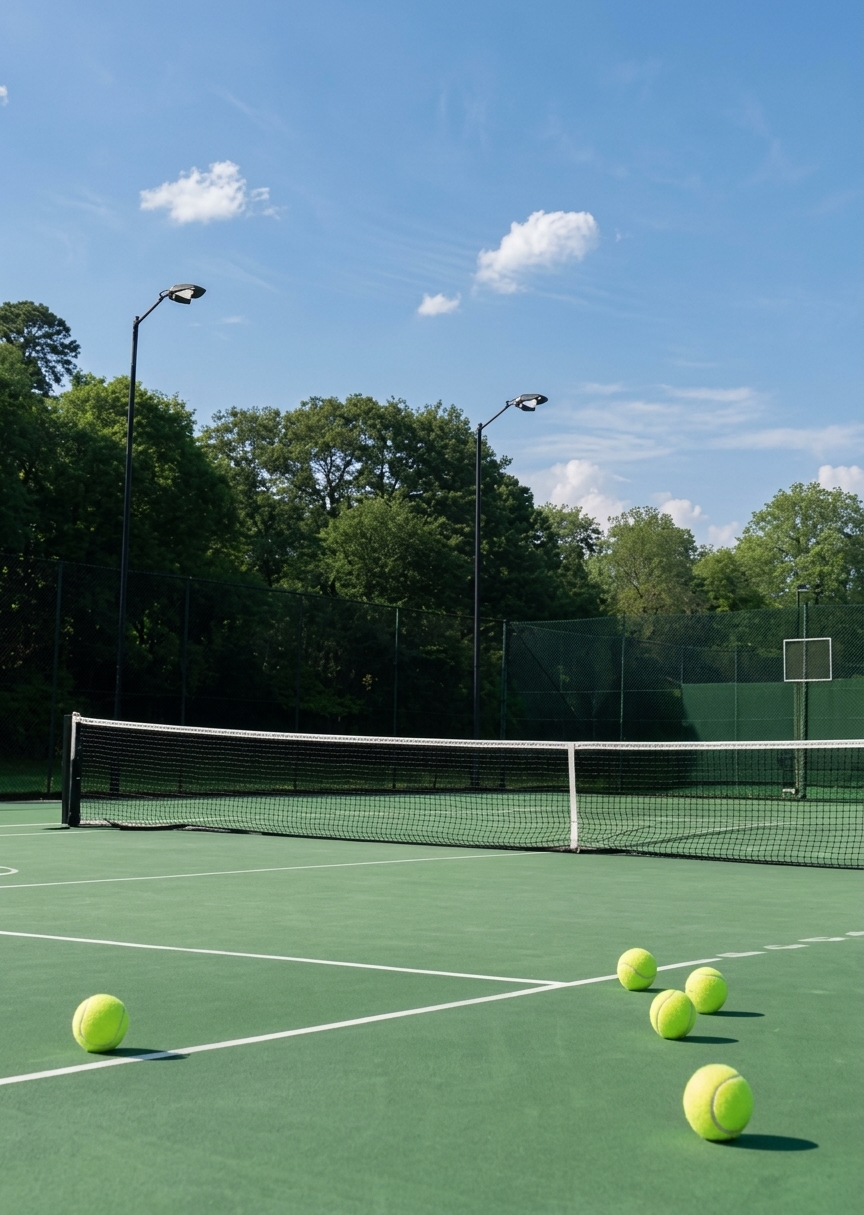

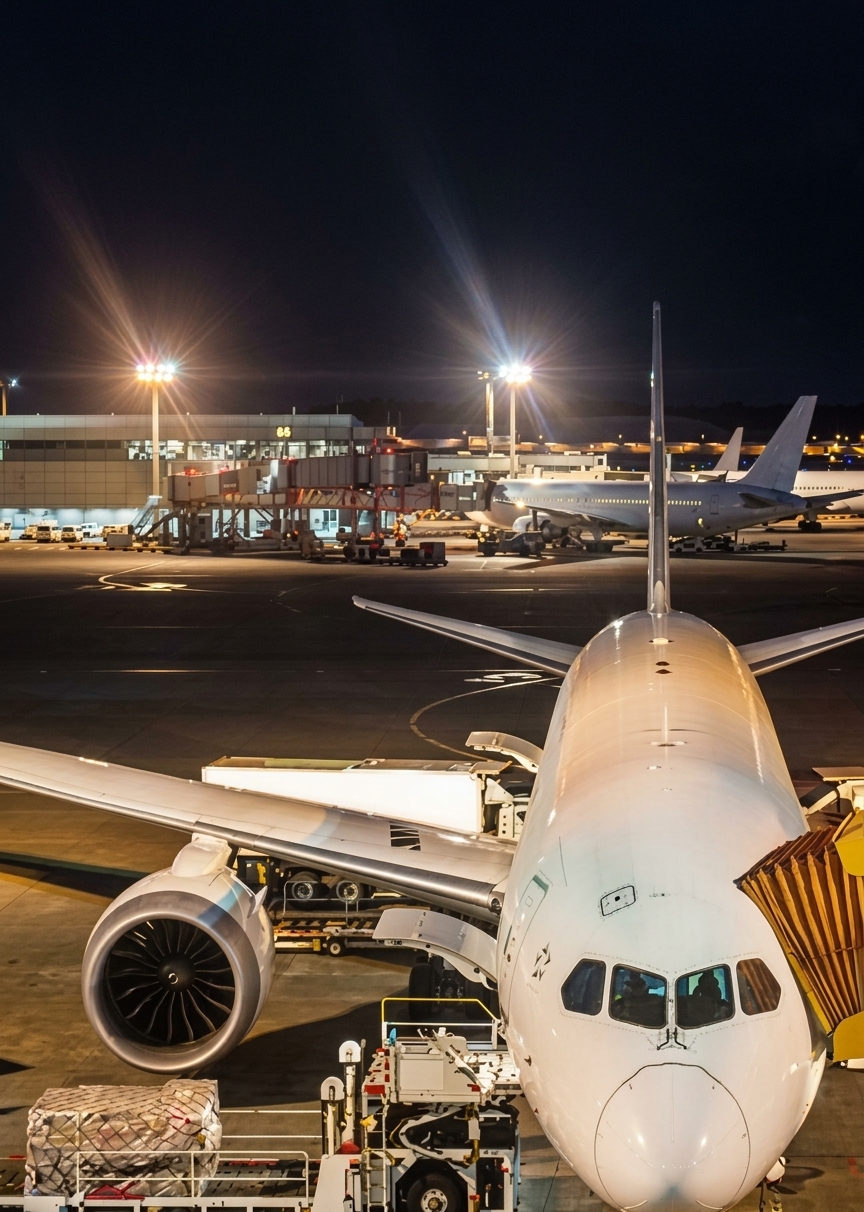

RL-SPFL5288 is a high-output floodlight for sports grounds and large open areas, in 500W, 600W, 800W and 1000W, delivering 77,500 to 125,000 lumens at 125–180 lumens per watt. Narrow 10°, 15°, 20° or 30° beams, colour temperature from 3000K to 6500K, CRI 70 (80 optional). Lumileds, Samsung or Osram LEDs with Meanwell, Inventronics, Sosen or LiFud drivers, IP66, IK10 with the polycarbonate lens, 10kV or 20kV surge protection optional, 0–10V, 1–10V or DALI dimming, rated 50,000 hours (L70) with a five-year warranty. Works from −30°C to +50°C. Typical uses: sports and recreation; public realm and urban.
500W/600W/800W/1000W77500LM-125000LM>70Ra(80Ra optional)10°/15°/20°/30°
Specifications
- Power
- 500W/600W/800W/1000W
- Lumens
- 77500LM-125000LM
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- >70Ra(80Ra optional)
- Beam angle
- 10°/15°/20°/30°
- IP rating
- IP66
- Input voltage
- AC100-277V
- Power factor
- 0.95
- Dimming / driver
- 0-10V/1-10V/DALI
- Warranty
- 5 Years
- Model
- RL-SPFL5288-500W/600W/800W/1000W
- Efficiency
- 125LM/W-180LM/W
- LED Type
- Lumileds 5050(20°/30°)、Samsung 3535(15°)、OSRAM 3737(10°)
- Power Supply
- Meanwell/Inventronics/Sosen/LiFud
- Power Frequency
- 50/60Hz
- Total Harmonic Distortion
- <15%
- SPD
- 10KV or 20KV external SPD optional
- Heat Radiator
- AL6063
- Lens Material
- PC or PC+Glass(optional)
- IK Rating
- IK10(only PC Lens)/IK08(with Glass Lens)
- Working Temperature
- -30℃~+50℃
- Storing Temperature
- -40℃~+80℃
- Lifetime(L70 Standard)
- 50,000 hours
