LED Garden Light · Catalogue P225-228

RL-SP3010

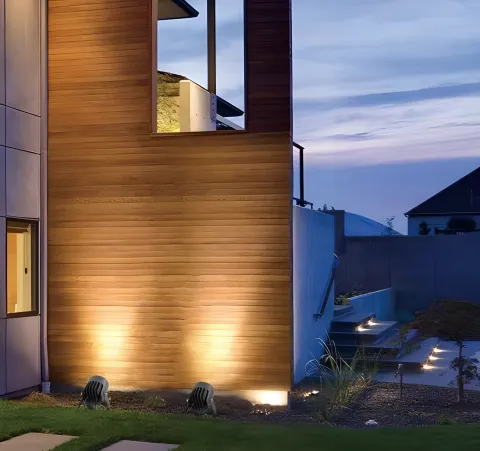

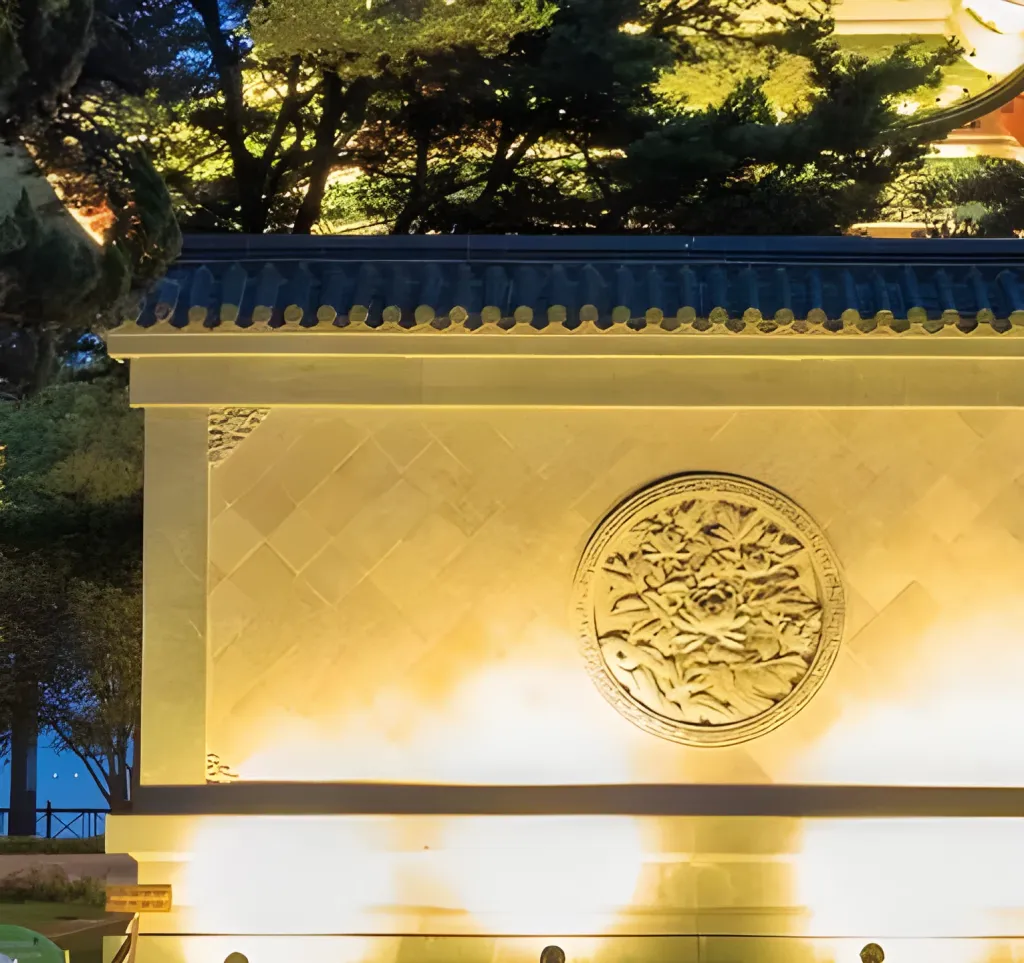

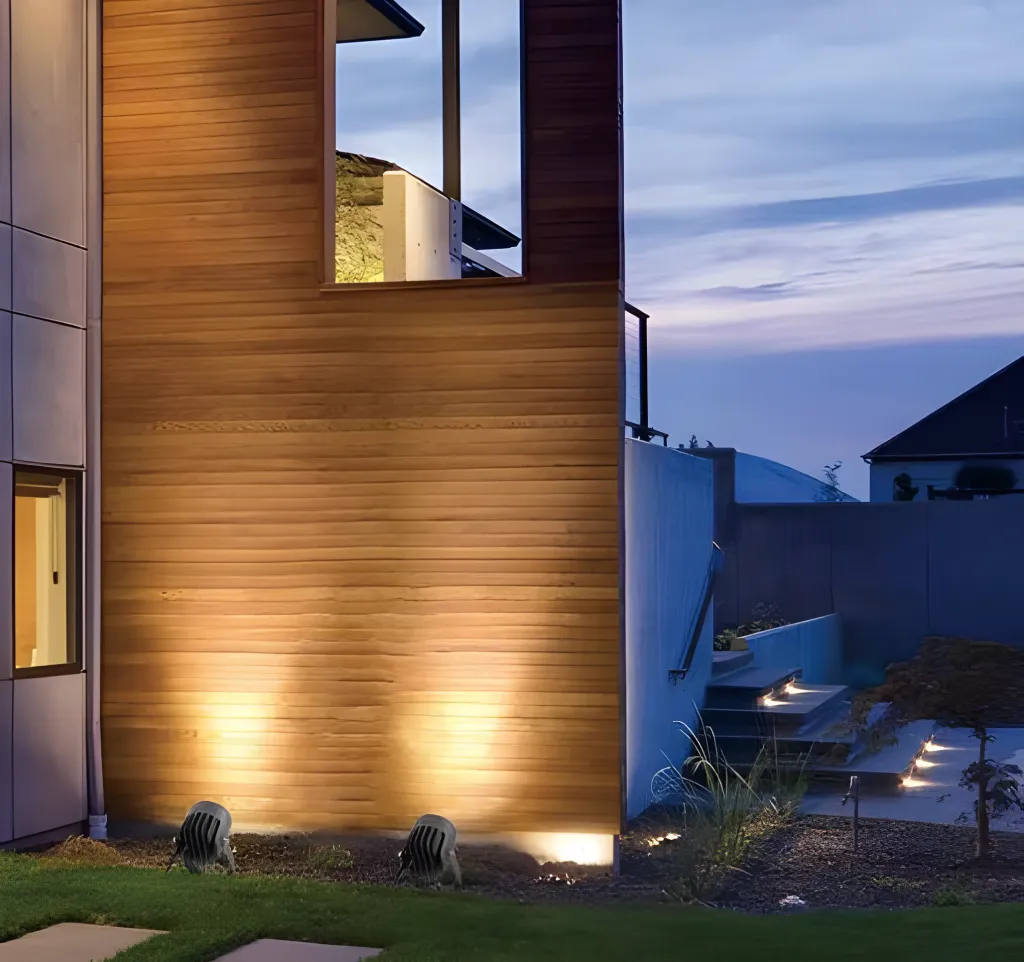

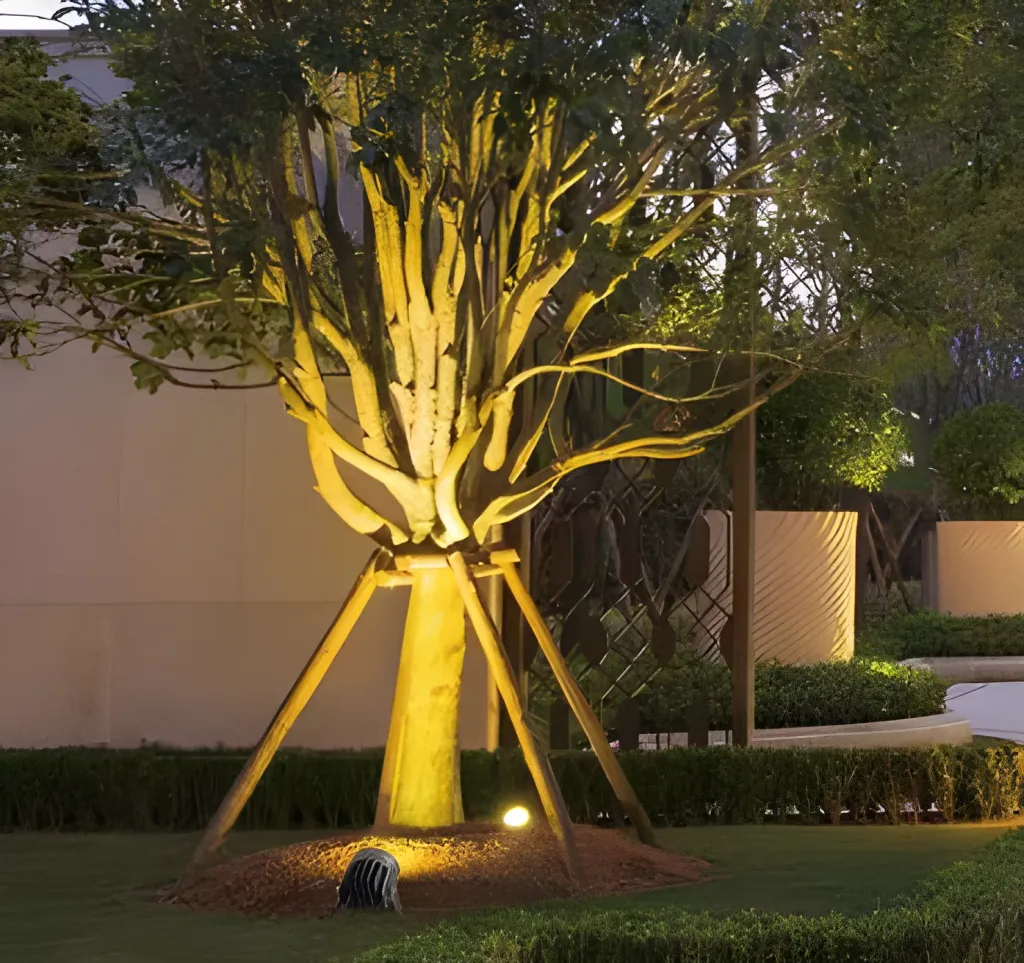

For outdoor installation, Made of high-quality aluminum with treatment of anti-corrosion and UV-proof powder coating. Glass diffuser.

3W / 6W / 12W90LM/W3000K/4000K/6500K>90

Enquire about this product Datasheet ↓

Specifications

Power: 3W / 6W / 12W
Lumens: 90LM/W
CCT: 3000K/4000K/6500K
CRI: >90
Beam angle: 30°/45°
IP rating: IP65
Input voltage: 220-240V
Power factor: 0.95
Dimming / driver: 0-10V/1-10V/DALI / INCLUDED
Product size: φ60mm / φ75mm / φ95mm
Material: Die cast aluminium+glass
Colour: WHITE/BLACK/CUSTOMIZABLE
LED chip: Bridgelux COB
Lifetime: 50000 hours
Warranty: 5 Years
Model: RL-SPL3010A/RL-SPL3010B/RL-SPL3010C/RL-SPL3010D
ADJUSTABLE: YES
Installation mode: Surfaced

Features

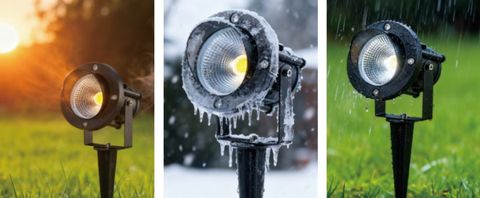

Outdoor Protection

IP65 and IK08 ratings ensure reliable operation in demanding outdoor environments. It can also be used normally in extremely cold or high temperature environments

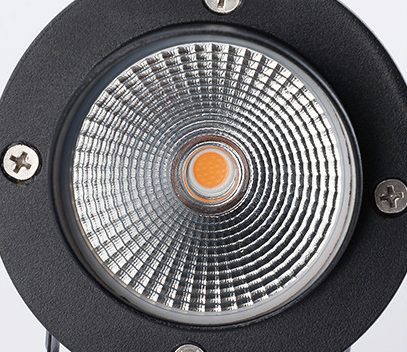

Optical high polymer lens

High light transmittance, long range, and uniform light output

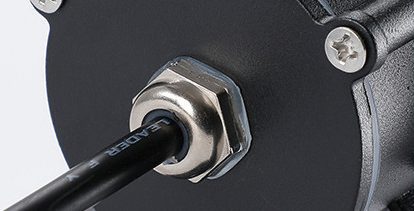

Double waterproof screws

The outlet hole is equipped with multiple layers of waterproof silicone and stainless steel screws.

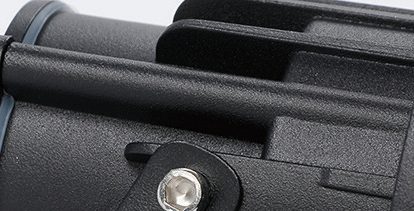

Double waterproof screws

High-quality aluminum is cast and formed, and the surface is treated with an outdoor-specific heat-curing powder coating.

Construction
