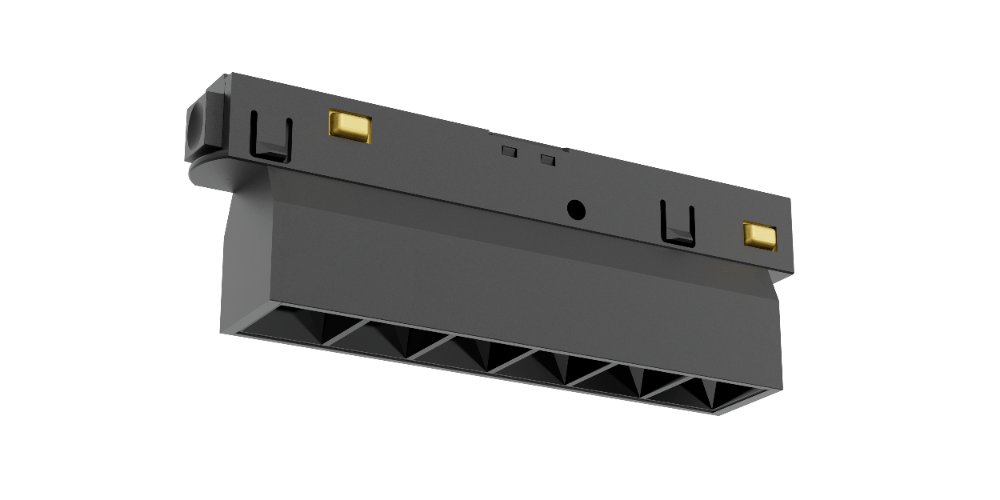

RL-MINILED02
RL-MINILED02 is a compact spotlight for 48V magnetic track, available from 6W to 22W with 15°, 30° or 48° beams. Colour temperature is 3000K, 4000K or 6000K, or tunable, with CRI of 90 or a full-spectrum option. Black or white housing, 0–10V, 1–10V or DALI dimming, rated at 50,000 hours with a five-year warranty. Typical uses: retail and commercial; hospitality and wellness.
≥90/FULL SPECTRUM15°/30°/48°
Specifications
- Power
- 6W / 8W / 12W / 15W / 20W / 22W
- CCT
- 3000K/4000K/6000K/DIMMABLE & CCT ADJUSTABLE/CUSTOMIZED
- CRI
- ≥90/FULL SPECTRUM
- Beam angle
- 15°/30°/48°
- Input voltage
- DC48V
- Dimming / driver
- 0-10V/1-10V/DALI
- Lifetime
- 50000 hours
- Warranty
- 5 YEARS
- Model
- RL-miniLED02
- HOUSING COLOR
- BLACK/WHITE/CUSTOMIZED
- IP RATE
- IP20
- SMART DIMMING
- YES
- LIGHT SOURCE LUMENS
- ≥100LM/W
Dimensions
