RL-LDL5102
LED Spot Light · Catalogue P006

RL-LDL5102

RL-LDL5102 is an LED spotlight, available from 2W to 15×2W at 70 lumens per watt. SMD LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 80. Aluminium and polycarbonate body in white or black, five sizes from 45×45×50 mm to 411×45×50 mm, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

70LM/W3000K/4000K/6500K/CCT>80IP20
RL-LDL5102 at a glance

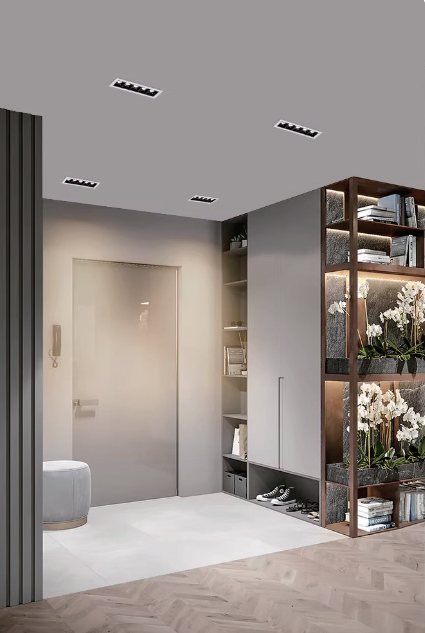

RL-LDL5102 — Applications

Specifications

Power
2W / 2W*2 / 2W*5 / 2W*10 / 2W*15
Lumens
70LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>80
IP rating
IP20
Input voltage
100-240V
Power factor
0.5 / 0.95
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Cut-out
37*37 / 67*37 / 139*37 / 272*37 / 403*37
Material
ALUMINIUM/ PC
Colour
White/Black
LED chip
SMD
Lifetime
50,000 hours
Warranty
5 Years
Model
RL-LDL5102-SERIES
Bean
15° 24° 36°
ADJUSTABLE
NO
Size L*W*H(mm)
45*45*50 / 75*45*50 / 147*45*50 / 279*45*50 / 411*45*50
