RL-LDL5100
LED Spot Light · Catalogue P005

RL-LDL5100

RL-LDL5100 is an LED spotlight, available from 3×2W to 15×2W at 70 to 80 lumens per watt, with 15°, 30° or 45° beams. SMD LEDs in 3000K, 4000K or 6500K (or tunable white), CRI above 80. Aluminium and polycarbonate body in white or black, four sizes from 85×35×70 mm to 403×35×70 mm, rated IP20 for indoor use. 0–10V, 1–10V or DALI dimming, driver included, runs on 100–240V, rated 50,000 hours, and a five-year warranty. Typical uses: hospitality and wellness; retail and commercial.

70-80LM/W3000K/4000K/6500K/CCT>8015°30°45°
RL-LDL5100 at a glance

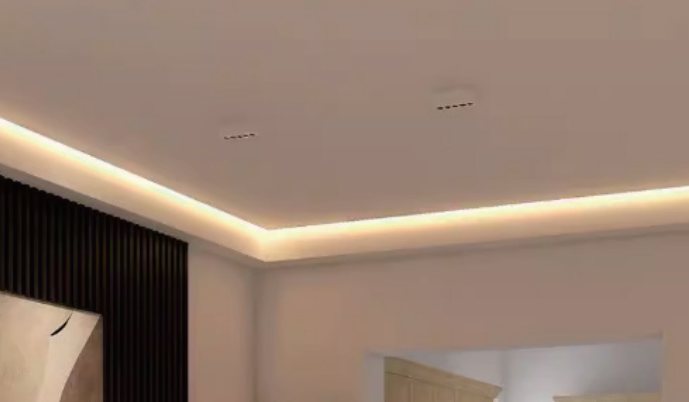

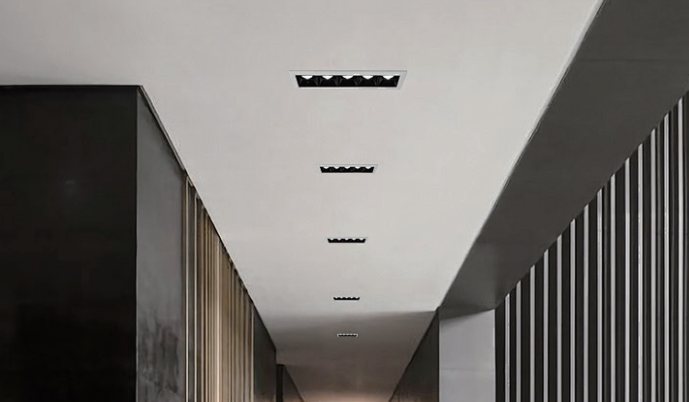

RL-LDL5100 — Applications
RL-LDL5100 — Applications

Specifications

Power
2w*3 / 2w*5 / 2w*10 / 2W*15
Lumens
70-80LM/W
CCT
3000K/4000K/6500K/CCT
CRI
>80
Beam angle
15°30°45°
IP rating
IP20
Input voltage
100-240V
Power factor
0.5 / 0.95
Dimming / driver
0-10V/1-10V/DALI / INCLUDED
Cut-out
/
Material
ALUMINIUM / PC
Colour
White/Black
LED chip
SMD
Lifetime
50,000 hours
Warranty
5 Years
Model
RL-LDL5100-SERIES
ADJUSTABLE
NO
Size L*W*H(mm)
85*35*70 / 136*35*70 / 268*35*70 / 403*35*70
