Flood & Sport Light · Catalogue P363-368

RL-FL5335

Power range from 50W to 400W

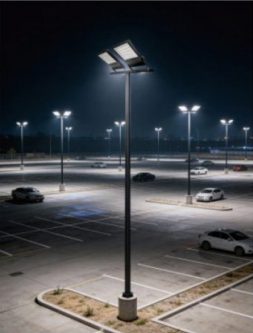

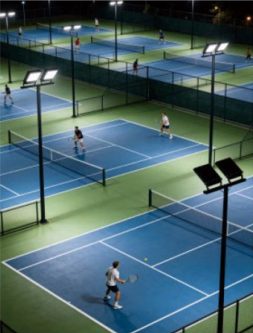

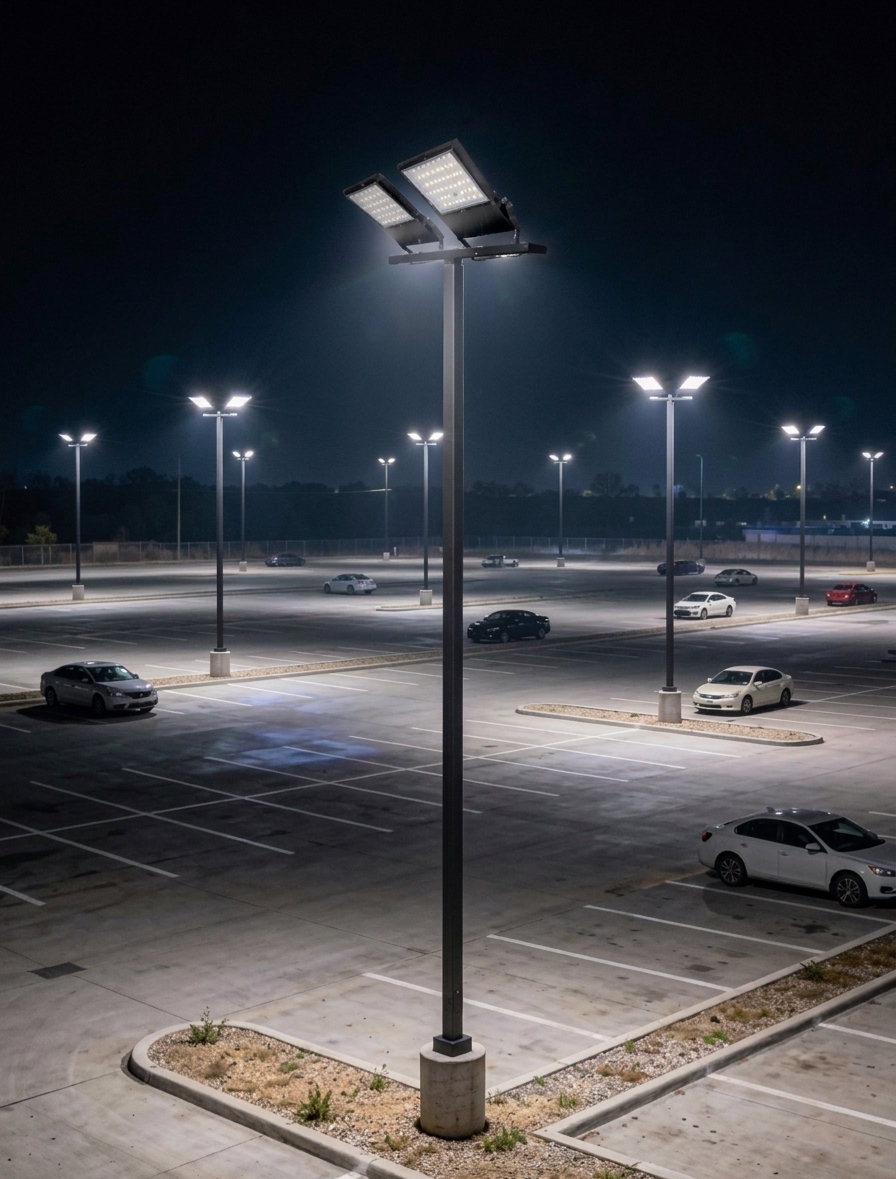

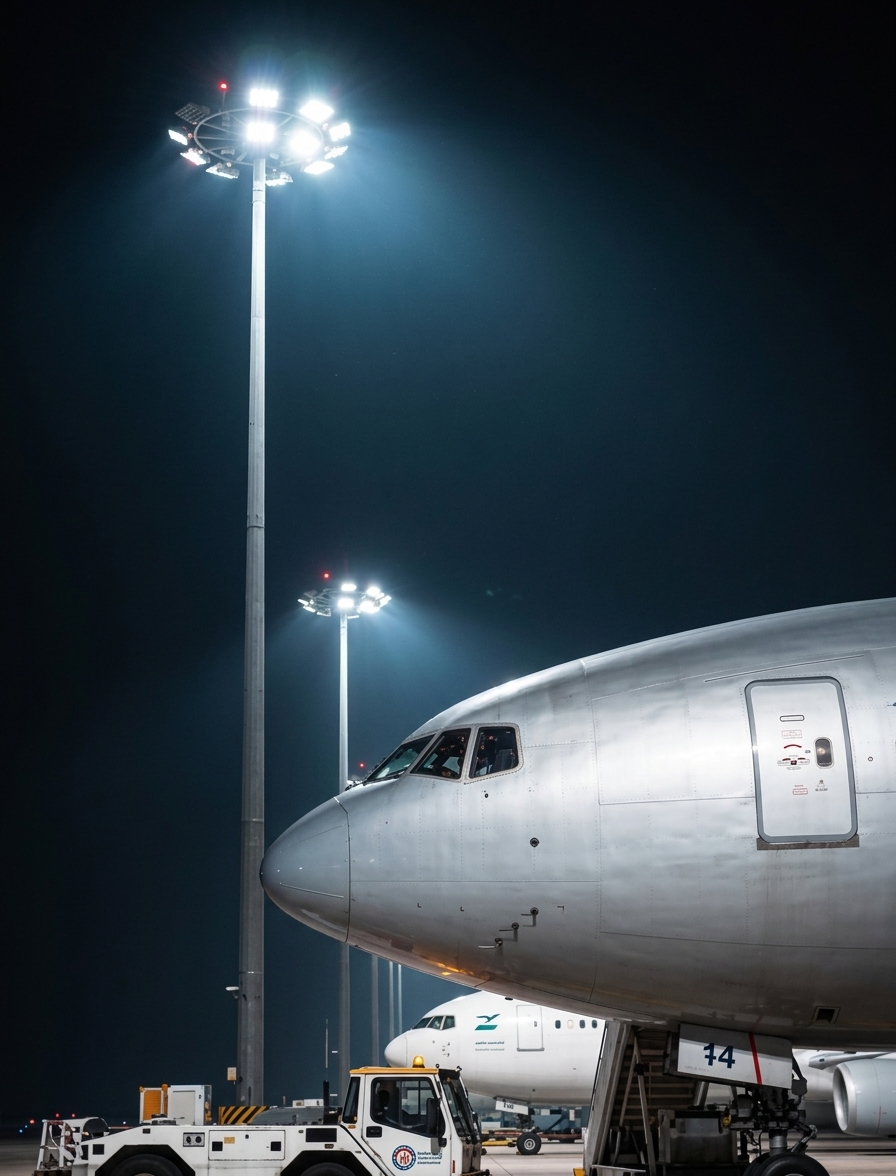

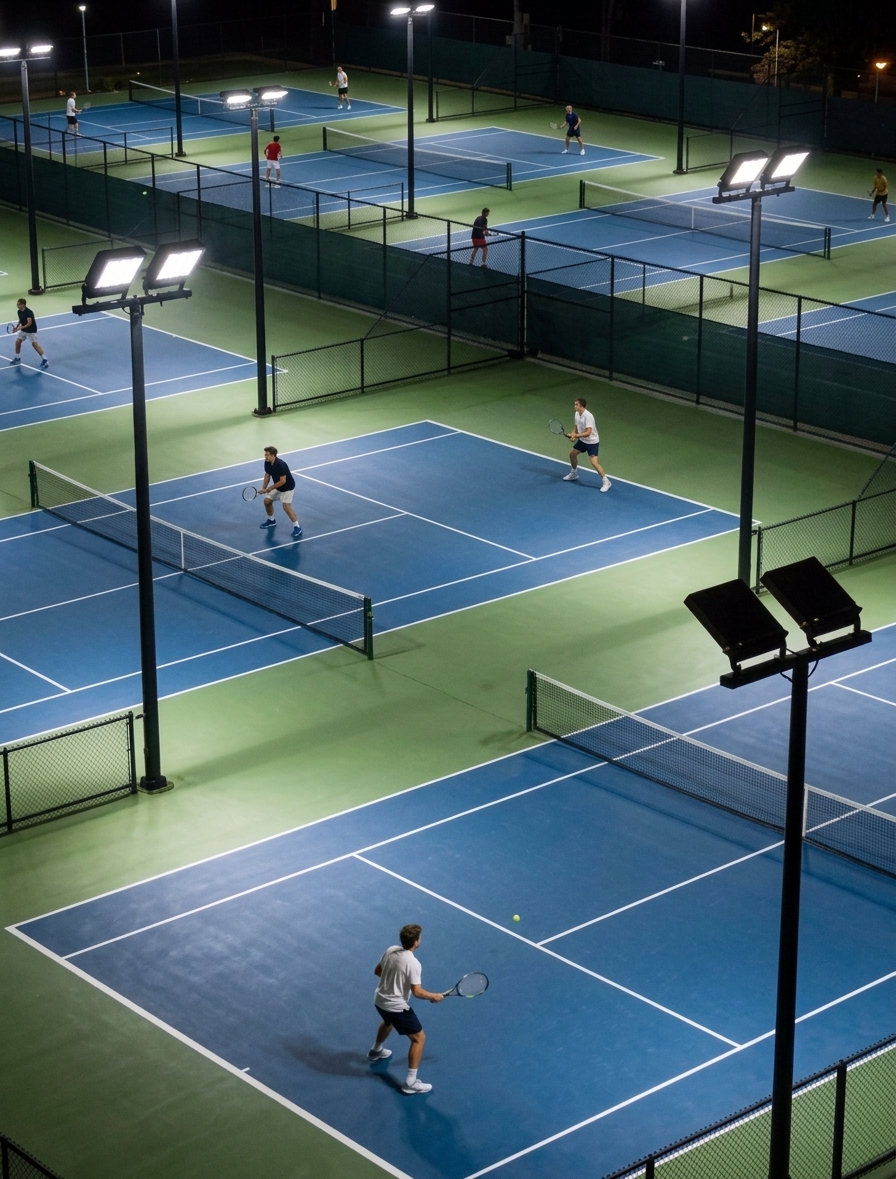

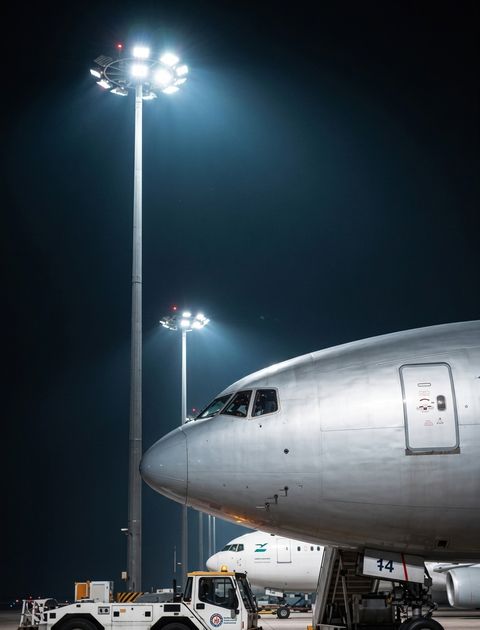

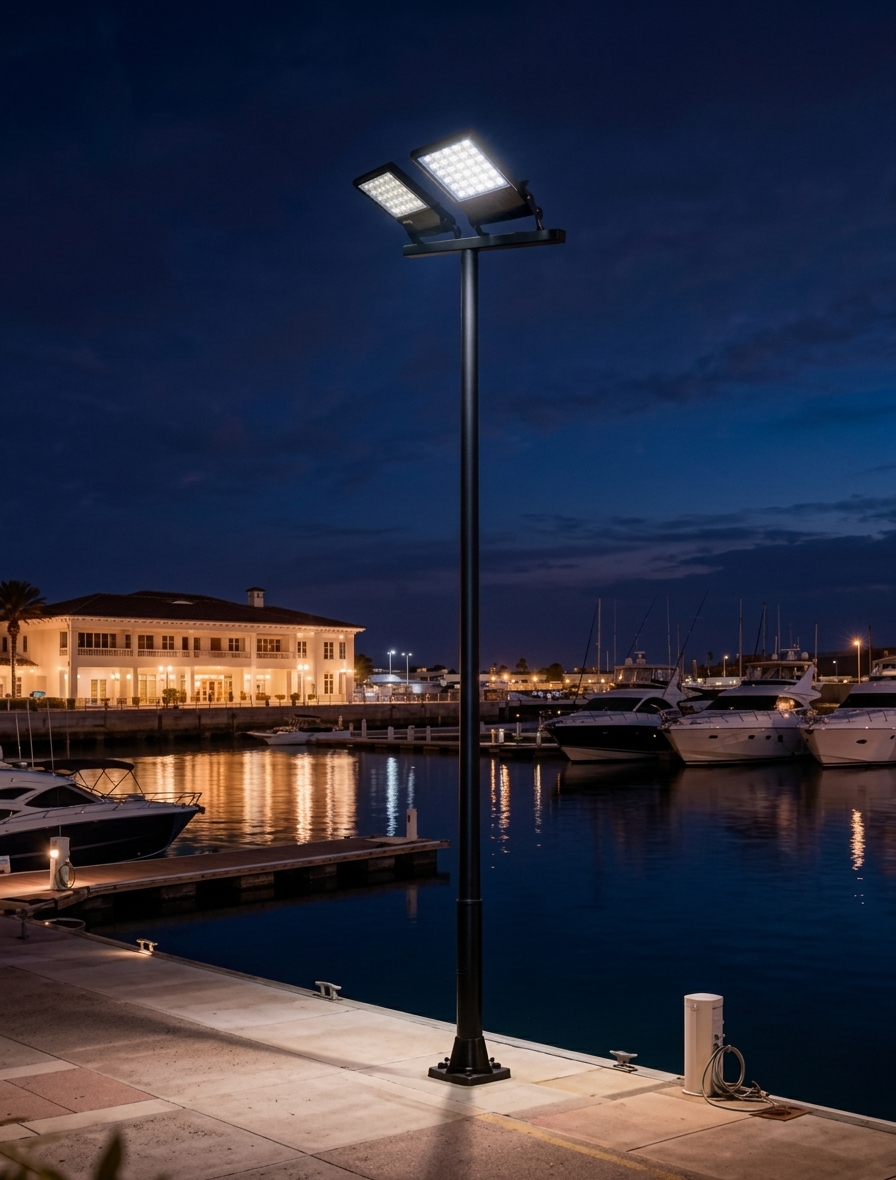

Widely used in horticulture, industrial zones, ports, docks, airports, billboards and outdoor security lighting.

Designed for outdoor & industrial applications

>70Ra(80Ra optional)IP66

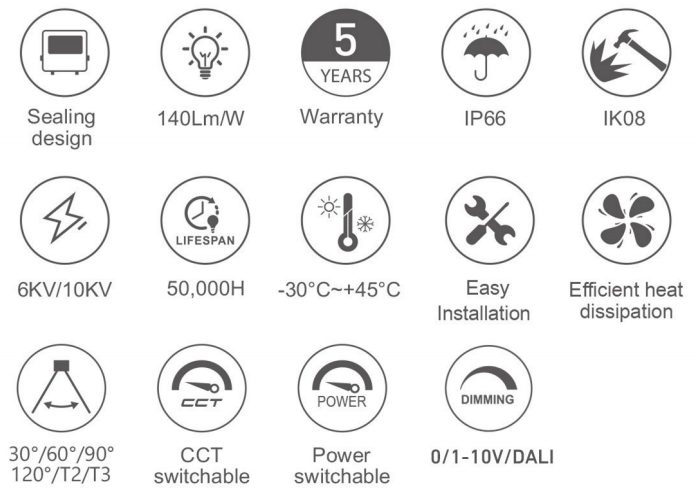

Specifications

Lumens: 7000LM / 14000LM / 21000LM / 28000LM / 33600LM / 42000LM / 56000LM
CCT: 3000K/4000K/5000K/5700K/6500K / Tunable CCT
CRI: >70Ra(80Ra optional)
Beam angle: 15°/30°/60°/90°/120°/Type II / Type III
IP rating: IP66
Input voltage: AC100-277V/AC220-240V
Power factor: 0.95
Dimming / driver: 0-10V/1-10V/DALI / Optional dimming
Warranty: 5 Years
Model: RL-FL5335-50W / RL-FL5335-100W / RL-FL5335-150W / RL-FL5335-200W / RL-FL5335-240W / RL-FL5335-300W / RL-FL5335-400W
Wattage Tunable: 50W / 100W / 150W / 200W / 240W / 300W / 400W
Efficiency: 140Lm/W
LED Type: Lumileds/Samsung/Sanan
Power Supply: Meanwell/Sosen/Philips/Lifud
Power Frequency: 50/60Hz
SPD: 6KV/10KV
Heat Radiator: Die-cast aluminum
Lens Material: PC+Glass
IK Rating: IK08
Working Temperature: -30℃~+45℃
Storing Temperature: -40℃~+70℃
Lifetime(L70 Standard): 50,000 hours
